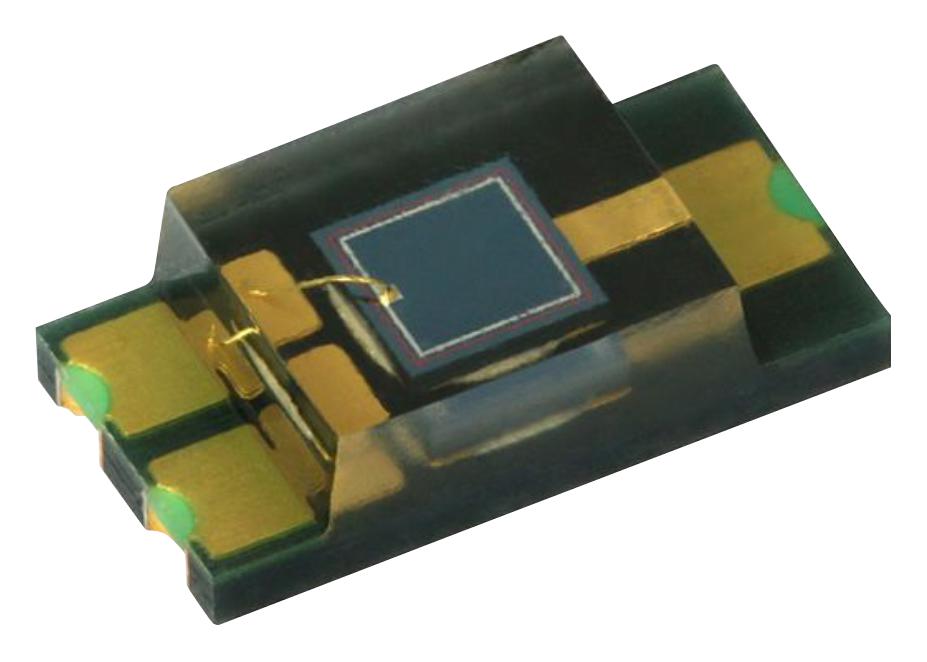

Vishay VEMD6010X01 Optical Photodiode
This silicon PIN photodiode is designed for high-speed and high-sensitivity applications. It is suitable for detecting visible and near-infrared radiation. The device offers fast response times, a half sensitivity angle of ±60°, and features a 0.85 mm² sensitive area. Ideal for high-speed photodetectors, this surface mount device is AEC-Q101 qualified, RoHS compliant, halogen-free, and supports lead-free reflow soldering, making it suitable for industrial applications requiring reliable optical detection.
Vishay VEMD6010X01 Optical Photodiode Specifications:
- Package type: surface mount
- Package form: 1206
- Dimensions: 4 x 2 x 1.05 mm
- Radiant sensitive area: 0.85 mm²
- High photo sensitivity
- High radiant sensitivity
- Suitable for visible and near infrared radiation
- Angle of half sensitivity: ±60°
- Wavelength of peak sensitivity: 900 nm
- Spectral bandwidth: 430 to 1100 nm
- Response times: rise time 100 ns, fall time 100 ns
- Reverse voltage: 32 V
- Power dissipation: 215 mW at 25°C
- Junction temperature: 110°C
- Operating temperature range: -40 to +110°C
- Storage temperature range: -40 to +110°C
- Soldering temperature: max 260°C
- Reverse dark current: 1 to 3 nA at 10 V
- Diode capacitance: 12 pF at 0 V
- Reverse light current: 67 to 95 nA at 1 mW/cm², 950 nm
- RoHS, halogen-free, and lead-free supported
- Qualified to AEC-Q101
- Floor life: 72 hours at <30°C and <60% RH
Buy the Vishay VEMD6010X01 – Reliable Optical Photodiode for Industrial Applications
Purchase the Vishay VEMD6010X01 optical photodiode online now to ensure high-speed, sensitive detection of visible and near-infrared light. This surface mount device offers fast response times, a 0.85 mm² active area, and is AEC-Q101 qualified for reliable industrial use. Ideal for high-speed photodetectors, it is RoHS compliant and halogen-free. Our online store provides quick delivery, secure checkout, and expert support, enabling you to enhance your optical sensing systems efficiently with a trusted, high-quality component.
Get Vishay VEMD6010X01 today—built for high-speed and high-sensitivity optical detection in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay VEMD6010X01?
You can click on the BUY or RFQ button to purchase VEMD6010X01 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VEMD6010X01?
You can download the VEMD6010X01 datasheet or visit the Vishay website for support.
Who is the manufacturer of VEMD6010X01?
Vishay
