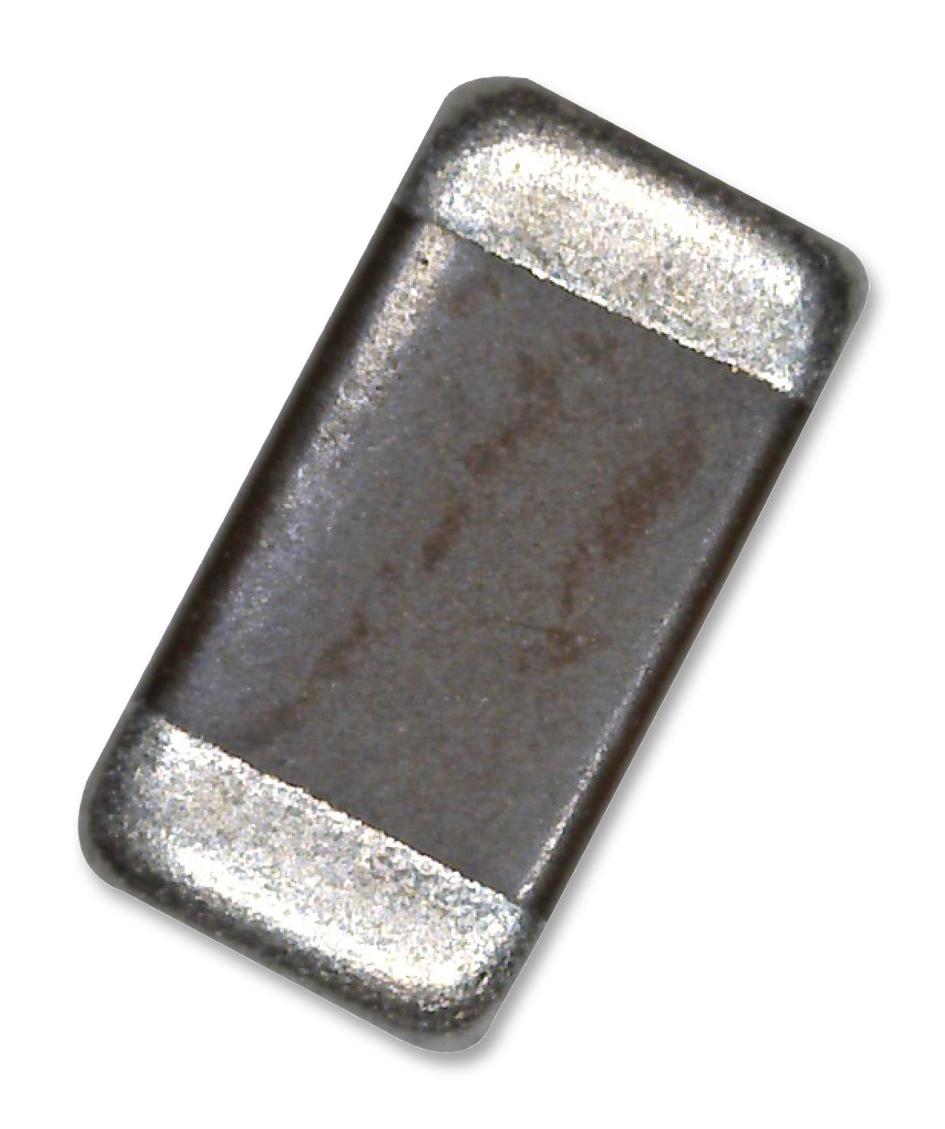

Vishay VJ0805V224ZXAPW1BC Ceramic Chip Capacitor
Vishay's surface mount multilayer ceramic chip capacitors are designed for versatile commodity applications, offering stability, high capacitance, and RoHS compliance. Available in sizes from 0402 to 1210, these capacitors feature ultra-stable COG dielectrics, noble metal electrodes, and dry sheet technology. Suitable for consumer electronics, telecommunications, and mobile devices, they deliver reliable performance across a wide temperature range, with specific voltage and capacitance options in X5R, X7R, Y5V, and COG dielectrics, making them ideal for high-frequency and general electronic applications.
Vishay VJ0805V224ZXAPW1BC Ceramic Chip Capacitor Specifications:
- Operating Temperature: COG (NPQ): -55 °C to +125 °C, X5R: -55 °C to +85 °C, X7R: -55 °C to +125 °C, YSV: -25 °C to +85 °C
- Capacitance Range: COG (NPO): 0.5 pF to 39 nF, X5R: 47 nF to 220 uF, X7R: 100 pF to 47 pF, Y5V: 10 nF to 100 pF
- Voltage Range: COG (NPQ): 10 Vpc to 100 V, X5R: 6.3 V to 50 V, X7R: 10 V to 100 V, Y5V: 6.3 V to 100 V
- Dielectric stability: COG (NPO): 0 ppm/°C + 30 ppm/°C, X5R and X7R: +15 % without voltage, Y5V: +30 % / -80 %
- Insulation Resistance: 210 GΩ at Up, Test conditions involve heat treatment and ambient aging, suitable for high reliability applications.
- Available sizes in 0402, 0603, 0805, 1206, 1210, with packaging in tape and reel, various thicknesses, conforming to industry standards.
- Maximum voltage and capacitance ratings are specified per size and dielectric type, designed for diverse electronic circuitry.
- Construction: BaTiO3 ceramic, Ni/Noble metal electrodes, nickel barrier terminations, and mist-resistant coating, suitable for high-frequency and general use.
- Storage conditions recommend ambient temperature from 5°C to 40°C and humidity between 20% to 70%, with a shelf life of one year.
- Features include RoHS compliance, halogen-free, dry sheet technology, and broad application support for consumer, mobile, and telecommunication electronics.
Buy the Vishay Series W1BC Ceramic Capacitors: VJ0805V224ZXAPW1BC
Purchase the Vishay Series W1BC ceramic chip capacitor online today to ensure high stability and reliable performance in your electronic designs. These compact, surface-mount capacitors are available in various sizes and capacitance values, perfect for high-frequency applications and consumer electronics. With RoHS compliance, halogen-free construction, and excellent temperature stability, they provide dependable quality for data processing, telecommunication, and mobile device projects. Secure your supply of these versatile capacitors now for seamless integration into your manufacturing or repair processes.
Order your Vishay Series W1BC ceramic chip capacitor today and enhance your electronic projects with reliable, high-performance components.
Frequently Asked Questions
Where can I buy Vishay VJ0805V224ZXAPW1BC?
You can click on the BUY or RFQ button to purchase VJ0805V224ZXAPW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0805V224ZXAPW1BC?
You can download the VJ0805V224ZXAPW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0805V224ZXAPW1BC?
Vishay
