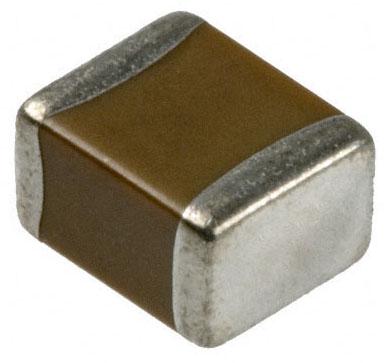

Vishay VJ0805Y102KXACW1BC Ceramic Capacitor
The VJ0805Y102KXACW1BC is a surface-mount multilayer ceramic chip capacitor from Vishay's Basic Commodity Series, designed for high-frequency and consumer electronic applications. It features stable COG (NP0), X5R, X7R, and Y5V dielectric types with a broad capacitance range from 0.5 pF to 220 µF, and voltage ratings up to 100 V. The capacitor is suitable for telecommunication, data processing, and mobile applications, incorporating Ni barrier and noble metal electrode systems for enhanced reliability and low ESR. Its compact 0805 size ensures easy integration into space-constrained designs, with robust temperature and aging characteristics.
Vishay VJ0805Y102KXACW1BC Ceramic Capacitor Specifications:
- Size: 0805 (2.0 x 1.25 mm)
- Capacitance Range: 0.5 pF to 220 uF
- Voltage Range: up to 100 V
- Operating Temperature: -55°C to +125°C (X7R, NP0); -25°C to +85°C (Y5V); -55°C to +125°C (X5R)
- Dielectric Types: COG (NP0), X5R, X7R, Y5V
- Material: BaTiO3 based ceramic with Ni, Cu, Sn terminals
- Insulation Resistance: ≥ 210 GΩ at Up
- Dissipation Factor: < 3% for X5R/X7R, < 12.5% for Y5V
- Aging Rate: Up to 6.3 V at 3% per decade for X5R, 12.5% per decade for Y5V
- Temperature Coefficient: ±15% (X5R/X7R), +30%/-80% (Y5V), 0 ppm/°C (NP0)
- Storage Conditions: 5°C to 40°C, 20-70% RH, use within 1 year, avoid corrosive environment.
- Manufacturing Technology: Dry sheet, noble metal or base metal electrode system, Ni barrier, Sn terminals.
Buy the VISHAY VJ0805Y102KXACW1BC – Reliable Ceramic Capacitor for High-Frequency Electronics
Enhance your electronic projects with Vishay's ceramic capacitor, size 0805, offering a broad capacitance range and high voltage up to 100 V. Ideal for consumer electronics, telecommunication, and data processing applications, this surface-mount component features advanced dielectric technology for stability and low ESR. Its compact size ensures ease of placement, while robust temperature and aging characteristics guarantee durability. Purchase online today and ensure your designs are backed by high-quality, reliable components that meet industry standards for performance and reliability.
Buy Vishay VJ0805Y102KXACW1BC now and experience unmatched reliability and performance in your electronic designs.
Frequently Asked Questions
Where can I buy Vishay VJ0805Y102KXACW1BC?
You can click on the BUY or RFQ button to purchase VJ0805Y102KXACW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0805Y102KXACW1BC?
You can download the VJ0805Y102KXACW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0805Y102KXACW1BC?
Vishay
