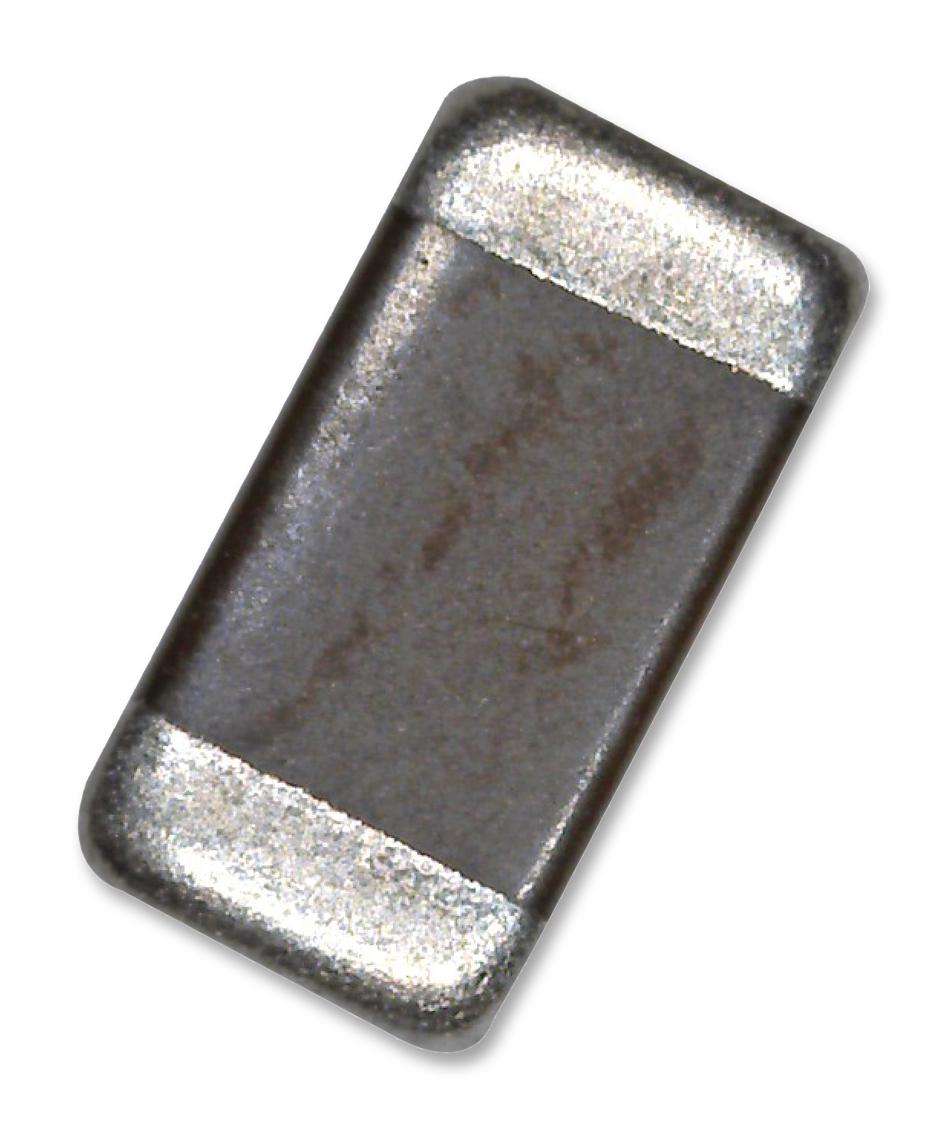

Vishay VJ0805Y103JXJCW1BC Ceramic Capacitor
This surface-mount multilayer ceramic capacitor from Vishay's Basic Commodity Series offers high capacitance values across various dielectrics like X5R, X7R, and Y5V, suitable for consumer electronics, telecommunications, and mobile applications. It features a compact 0805 case size, robust insulation resistance over 210 GΩ, and wide operating temperature ranges up to 125°C depending on dielectric type. Designed with Ni-barrier and tin terminations, it provides excellent stability, low dissipation factor, and reliable performance in high-frequency and high-voltage environments, making it ideal for a broad range of electronic circuit applications.
Vishay VJ0805Y103JXJCW1BC Ceramic Capacitor Specifications:
- Case Size: 0805
- Capacitance Range: 47 nF to 220 uF (X5R); 100 pF to 47 nF (X7R); 10 nF to 100 pF (Y5V); 0.5 pF to 39 nF (COG/NPO)
- Voltage Range: 6.3 V to 50 V (X5R); 10 V to 100 V (X7R); 6.3 V to 100 V (Y5V)
- Operating Temperature: -55°C to +125°C (X7R, COG); -55°C to +85°C (X5R); -25°C to +85°C (Y5V)
- Dissipation Factor: Low, typical Q > 1000 for COG; varies with dielectric type
- Insulation Resistance: ≥ 210 GΩ at Up
- Material: BaTiO3 based ceramic, nickel inner electrode, copper inner layer, tin outer layer
- Features: RoHS, halogen-free, high stability, available in tape and reel packaging
- Application: Consumer electronics, telecommunications, data processing, mobile devices
Buy the Vishay Series Basic Commodity Capacitance: 47 nF to 220 uF VJ0805Y103JXJCW1BC
Order the Vishay ceramic capacitor from the Basic Commodity Series today for your electronic project. Designed with high capacitance, stable dielectric properties, and RoHS compliance, this 0805-sized component ensures excellent performance in high-frequency applications and voltage environments. Its robust construction with nickel-barrier and tin terminations guarantees durability, low dissipation factor, and reliable operation. Perfect for consumer electronics, telecommunications, and mobile applications, it offers a compact solution with easy online purchasing options, ensuring quick delivery for your manufacturing or repair needs.
Get Vishay VJ0805Y103JXJCW1BC today—built for high stability, durability, and reliable performance in compact electronic circuits.
Frequently Asked Questions
Where can I buy Vishay VJ0805Y103JXJCW1BC?
You can click on the BUY or RFQ button to purchase VJ0805Y103JXJCW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0805Y103JXJCW1BC?
You can download the VJ0805Y103JXJCW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0805Y103JXJCW1BC?
Vishay
