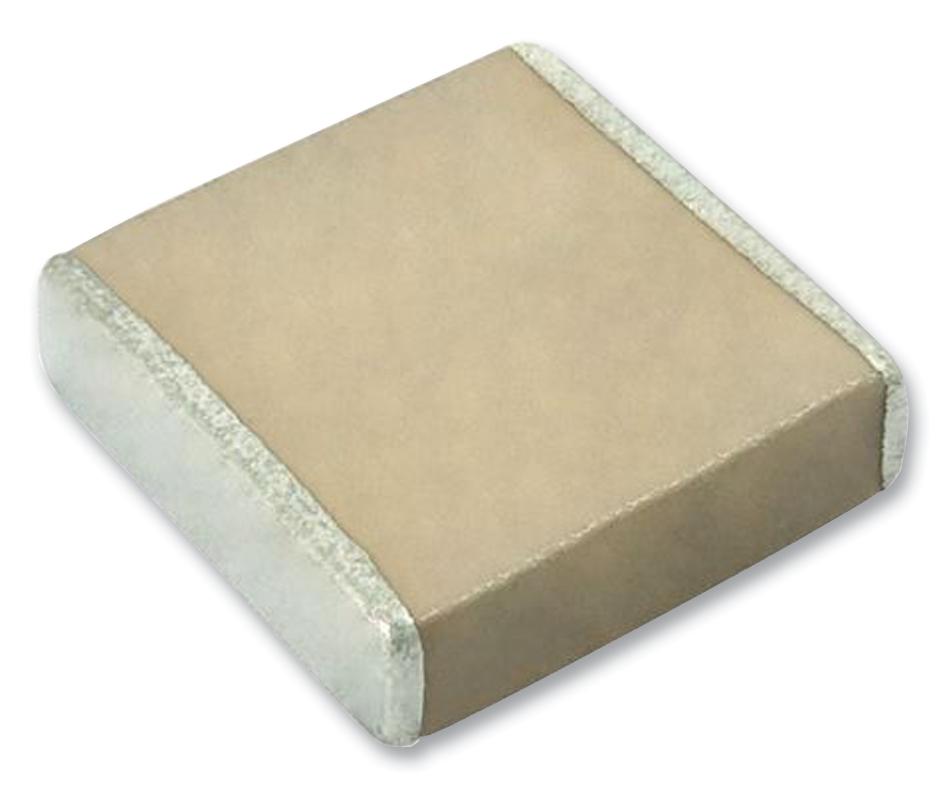

Vishay VJ1111D120GXRAJ Multilayer Ceramic Capacitor
Vishay Vitramon QUAD HIFREQ Series surface mount multilayer ceramic capacitors designed for RF power applications such as MRI coils, RF instruments, microwave amplifiers, and timing circuits. These capacitors feature ultra-stable, high Q dielectric materials, RoHS compliance, lead-free and halogen-free options, noble metal electrodes, and high voltage ratings up to 3600 V. They operate over a temperature range of -55°C to +125°C with low dissipation factor and excellent insulation resistance. Suitable for demanding high-frequency, impedance matching, and filtering applications in advanced electronic systems.
Vishay VJ1111D120GXRAJ Multilayer Ceramic Capacitor Specifications:
- Case sizes: 0505, 1111, 2525
- Capacitance range: 1.0 pF to 2700 pF
- Voltage ratings: 200 V to 3600 V
- Operating temperature: -55°C to +125°C
- Dielectric: COG (D), NPO
- Dissipation Factor: max. 0.05% at typical operating conditions
- Insulation Resistance: ≥100 000 MΩ at +25°C, rated voltage
- Dielectric Strength: min. 250% of rated voltage for voltages below 250 V, and 150% for higher voltages
- Termination options: Ni barrier with tin lead or tin plated matte finish
- Materials: Noble Metal Electrode (NME), RoHS-compatible, halogen-free versions available
- Dimensions vary by case size, precise in inches and millimeters as specified
Buy the Buy Vishay QUAD HIFREQ Series VJ1111D120GXRAJ Online
Enhance your RF and microwave applications with Vishay Vitramon high-voltage multilayer ceramic capacitors from the QUAD HIFREQ Series. Designed for reliable operation from -55°C to +125°C, these capacitors offer high stability, low dissipation factor, and excellent insulation resistance. With a wide capacitance range up to 2700 pF and voltage ratings up to 3600 V, they are ideal for MRI coils, RF instruments, filters, and impedance matching networks. Purchase online now for fast delivery and quality assurance in your demanding projects.
Order your Vishay Series VJ1111D120GXRAJ high-voltage ceramic capacitor today and ensure reliable RF performance in your advanced electronic systems.
Frequently Asked Questions
Where can I buy Vishay VJ1111D120GXRAJ?
You can click on the BUY or RFQ button to purchase VJ1111D120GXRAJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111D120GXRAJ?
You can download the VJ1111D120GXRAJ datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111D120GXRAJ?
Vishay
