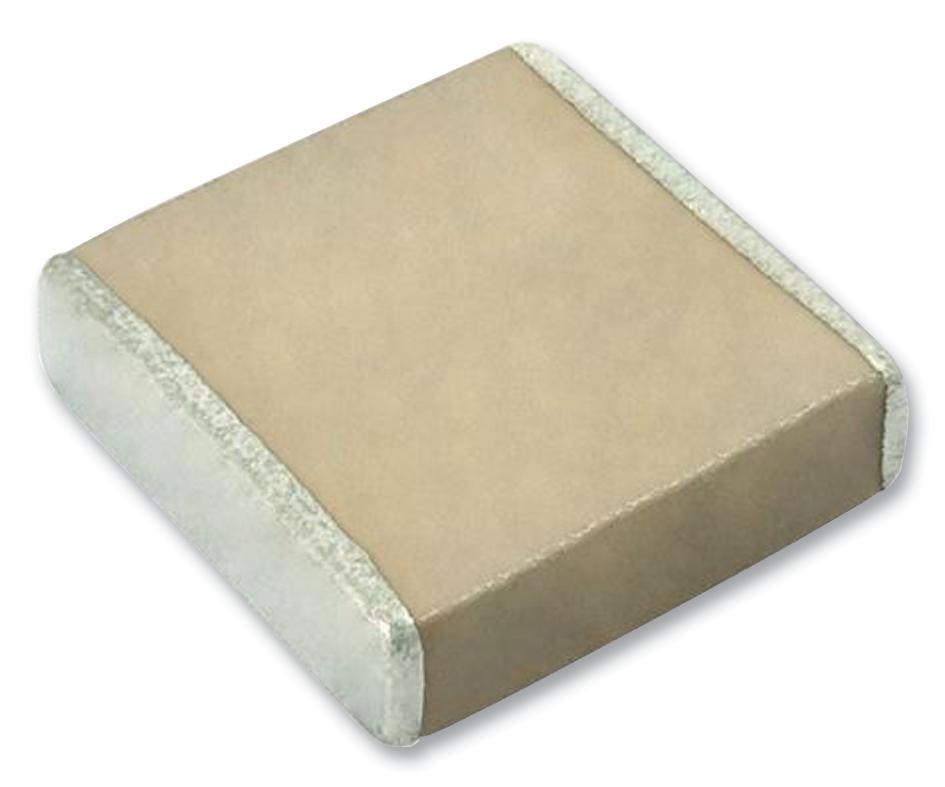

Vishay VJ1111D1R2BXRAJ High Frequency RF Capacitor
Vishay Vitramon Quad High Frequency Series surface mount multilayer ceramic capacitors are designed for RF power applications, including MRI coils, RF instruments, and microwave amplifiers. These capacitors offer high voltage ratings up to 7200 Vg, low dissipation factors, and excellent temperature stability from -55°C to +125°C. They feature RoHS compliance, various termination options, and different case sizes such as 0505, 1111, 2525, and 3838. Ideal for impedance matching, filtering, and oscillator circuits in high-frequency electronics.
Vishay VJ1111D1R2BXRAJ High Frequency RF Capacitor Specifications:
- Case sizes: 0505, 1111, 2525, 3838
- Capacitance Range: 0.1 pF to 5100 pF
- Voltage Ratings: up to 7200 Vp¢
- Operating Temperature: -55°C to +125°C
- Extended Temperature: up to 200°C for certain models
- Material: Ceramic dielectric with ultra-stable dielectric
- Dissipation Factor: max. 0.05% at 1 MHz for values < 1000 pF
- Insulation Resistance: minimum 100 MΩ at +25°C, rated voltage
- Dielectric Strength: minimum 250% of rated voltage depending on voltage class
- Temperature Coefficient: CO G (D): 0 ppm/°C + 30 ppm/°C from -55°C to +125°C
- Terminations: Ni barrier, tin plated, options for lead-free, halogen-free
- RoHS Compliant: Yes for specified terminations
- Application: RF power circuits, filters, impedance matching, oscillators
Buy the Buy Vishay Quad High Frequency Capacitors Part Number VJ1111D1R2BXRAJ Online
Purchase Vishay Quad High Frequency RF Capacitors VJ1111D1R2BXRAJ online today. These advanced multilayer ceramic capacitors deliver high voltage ratings up to 7200 V, exceptional stability, and low dissipation for RF, microwave, and precision electronics. Perfect for impedance matching, filters, oscillators, and MRI applications, they feature RoHS compliance, various case sizes, and lead-free options ensuring durability and eco-friendliness. Order now for reliable high-frequency performance in your advanced electronic systems.
Get Vishay Quad High Frequency Capacitors VJ1111D1R2BXRAJ today—engineered for high voltage RF and microwave applications with reliable performance.
Frequently Asked Questions
Where can I buy Vishay VJ1111D1R2BXRAJ?
You can click on the BUY or RFQ button to purchase VJ1111D1R2BXRAJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111D1R2BXRAJ?
You can download the VJ1111D1R2BXRAJ datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111D1R2BXRAJ?
Vishay
