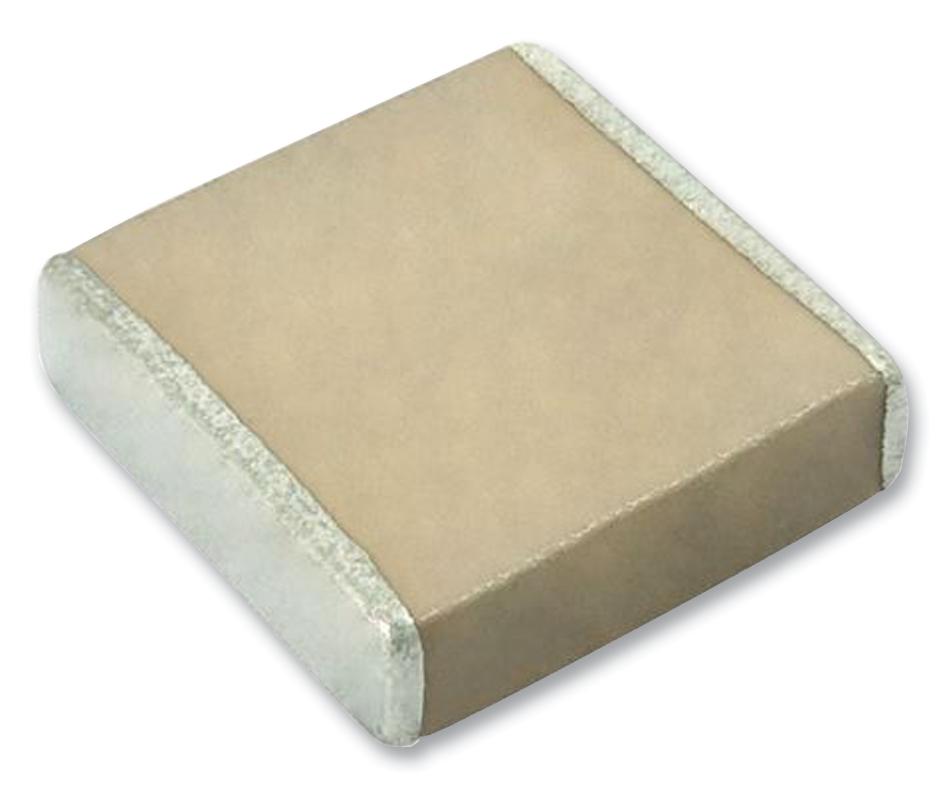

Vishay VJ1111D270JXRAJ High Frequency Ceramic Capacitor
Vishay Vitramon Quad High Frequency Series multilayer ceramic capacitors designed for RF power applications such as MRI coils, RF instruments, lasers, and microwave amplifiers. These capacitors feature ultra-stable, high-Q dielectric materials, operating temperature ranges from -55°C to +125°C (extended to 200°C for specific models), with capacitance values from 0.2 pF to 5100 pF and voltage ratings up to 7200 V. They are RoHS-compliant, halogen-free, and available in lead-free or tin/lead terminations, suited for high-frequency, impedance matching, and filter network applications.
Vishay VJ1111D270JXRAJ High Frequency Ceramic Capacitor Specifications:
- Case sizes: 0505, 1111, 2525, 3838
- Capacitance range: 0.2 pF to 5100 pF
- Voltage ratings: up to 7200 V
- Operating temperature: -55 °C to +125 °C, extended models up to 200 °C
- Temperature Coefficient of Capacitance: 0 ppm/°C + 30 ppm/°C for COG (D) dielectric
- Dissipation Factor (DF): max 0.05% at 1 MHz and 1.0 V
- Insulation Resistance: ≥100 MΩ at 25°C rated voltage
- Dielectric strength test: 250% to 150% of rated voltage depending on voltage class
- RoHS compliant and halogen-free options available
- Designed for RF, microwave, impedance matching, filter networks, oscillators, and laser applications
Buy the Buy Vishay Quad Hifreq Series Part Number VJ1111D270JXRAJ Online
Enhance your RF design with Vishay's Quad High Frequency Ceramic Capacitors. Engineered for stability, high voltage, and low loss, these capacitors excel in microwave and RF circuits. Perfect for MRI, RF instruments, and impedance matching, they are RoHS-compliant and available in various sizes and terminations. Purchase online today to ensure reliable performance in your sensitive electronic applications. Trust Vishay's quality and innovation for your high-frequency needs, and enjoy fast delivery and excellent customer support.
Buy Vishay Quad Hifreq Series VJ1111D270JXRAJ now and experience unmatched reliability and performance in RF applications.
Frequently Asked Questions
Where can I buy Vishay VJ1111D270JXRAJ?
You can click on the BUY or RFQ button to purchase VJ1111D270JXRAJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111D270JXRAJ?
You can download the VJ1111D270JXRAJ datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111D270JXRAJ?
Vishay
