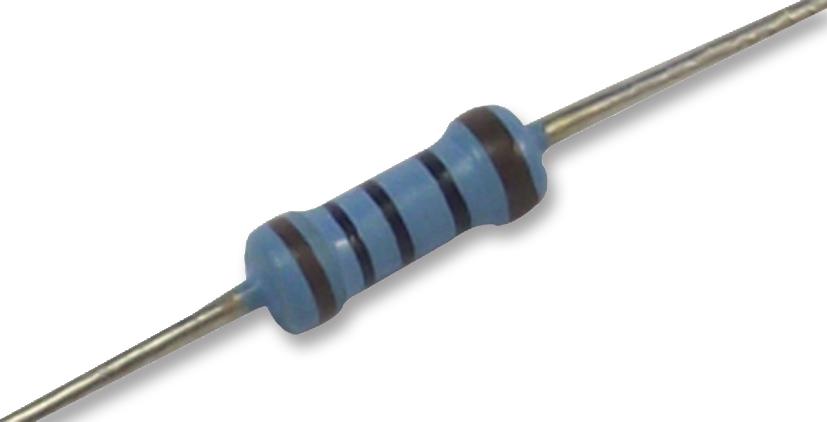

Vishay MBA02040C5100FC100 Thin Film Resistor
Professional thin film leaded resistors designed for high reliability and stability across industrial, telecommunication, automotive, and medical applications. These resistors feature excellent stability with low TCR (+50 ppm/K for MBA/SMA 0204, +25 ppm/K for MBB/SMA 0207, +50 ppm/K for MBE/SMA 0414), wide resistance ranges from 0.22 Q to 22 MΩ, and RoHS compliance. Suitable for automatic insertion and soldering, they have a ceramic substrate, metal alloy film, paired with plated steel or coppered terminations, and are approved to IEC standards with options for special termination wires. They excel under harsh environmental conditions with high-temperature ratings and CECC approval for certain models, making them ideal for precision and demanding electronic applications.
Vishay MBA02040C5100FC100 Thin Film Resistor Specifications:
- Resistance range: 0.22 Q to 22 MΩ
- Resistance tolerance: ±5%, ±1%, or ±0.5% (dependent on series and model)
- Temperature coefficient: +50 ppm/K (MBA/SMA 0204), +25 ppm/K (MBB/SMA 0207), +50 ppm/K (MBE/SMA 0414)
- Rated dissipation: 0.4 W to 1.0 W (series dependent)
- Operating voltage: 200 V to 500 V
- Operating temperature range: -85°C to +155°C
- Insulation voltage: 300 V to 800 V
- Peak film temperature: 155°C
- Standards and approvals: IECQ-CECC (for CECC versions), IEC 60115-1, IEC 60068-2-x testing
- Physical dimensions vary by series, e.g., 36 mm length for MBA/SMA 0204, 65 mm for MBB/SMA 0207, 11.9 mm for MBE/SMA 0414
- Material: Metal alloy film on ceramic substrate with protective coating
- Terminations: Plated steel or coppered, with options for weldable wires
- RoHS, REACH, GADSL compliant, lead-free conforming to environmental standards
Buy the Vishay Part Number MBA02040C5100FC100 – Reliable Thin Film Resistors for Industrial Applications
Order Vishay thin film resistors online today to ensure your projects benefit from high reliability, stability, and precision. Our resistors are perfect for demanding industrial, automotive, telecommunication, and medical electronics, offering resistance up to 22 MΩ, low temperature coefficient, and environmentally compliant materials. With extensive approvals, robust construction, and availability in various series and sizes, purchasing from us guarantees quality and durability for your critical applications. Elevate your electronic designs with Vishay today!
Buy Vishay MBA/SMA 0204 now and experience unmatched reliability, stability, and precision in critical electronic applications.
Frequently Asked Questions
Where can I buy Vishay MBA02040C5100FC100?
You can click on the BUY or RFQ button to purchase MBA02040C5100FC100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MBA02040C5100FC100?
You can download the MBA02040C5100FC100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MBA02040C5100FC100?
Vishay
