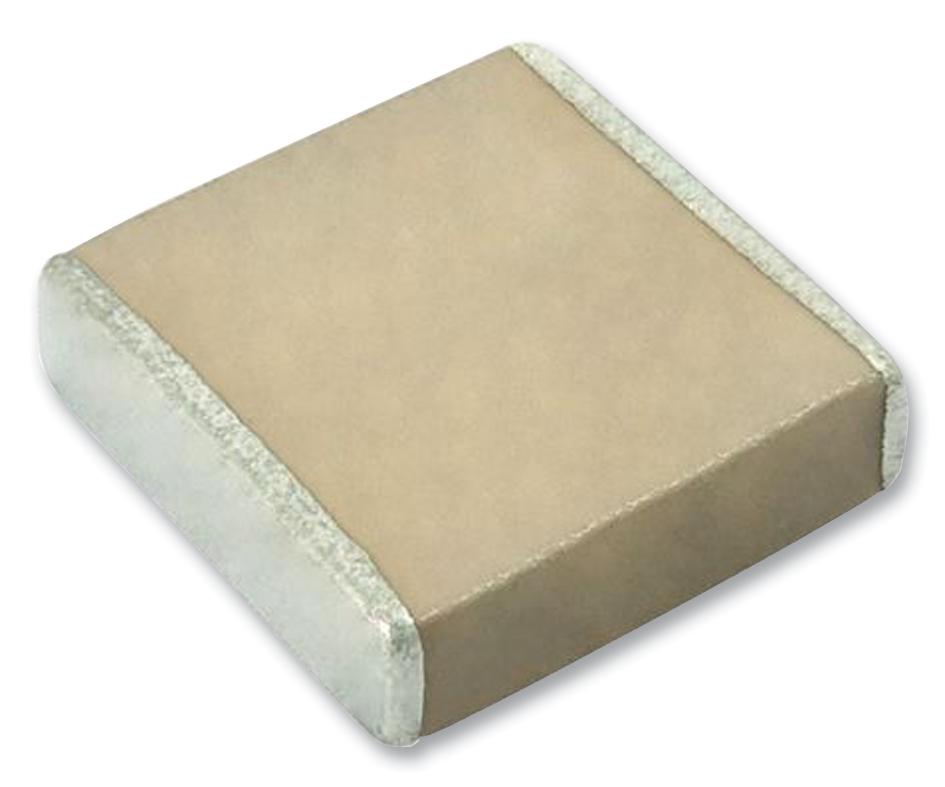

Vishay VJ1111D330JXRAJ High Frequency Ceramic Capacitor
Vishay Quad HIFREQ series multilayer ceramic capacitors are ideal for RF power applications, offering high stability, high Q dielectric material, and extended temperature ranges up to 200°C. They are suitable for MRI coils, RF instruments, microwave amplifiers, and timing circuits, featuring various case sizes like 0505, 1111, 2525, and 3838. These capacitors are RoHS-compliant, with options for lead-free, non-magnetic copper, and nickel barrier terminations, providing reliable performance in high-frequency environments. They have rated voltages up to 7200 V, low dissipation factors, and excellent insulation resistance, ensuring high precision and stability in demanding RF and microwave circuits.
Vishay VJ1111D330JXRAJ High Frequency Ceramic Capacitor Specifications:
- Case sizes: 0505, 1111, 2525, 3838
- Capacitance range: 0.1 pF to 2700 pF
- Voltage ratings: 200 V to 7200 V
- Operating temperature: -55°C to +125°C; extended up to 200°C
- Temperature coefficient: 0 ppm/°C + 30 ppm/°C
- Dissipation Factor: 0.05 % max at 1.0 Vams and 1 MHz for values < 1000 pF
- Insulation Resistance: ≥100,000 MΩ at +25°C rated voltage
- Dielectric Strength: minimum 250 % rated voltage for < 250 V rated
- RoHS compliance: Yes, except with lead (Pb) terminations
- Material: Ultra-stable high-Q dielectric, noble metal electrodes
- Features: RoHS, lead-free, non-magnetic, reliable performance in RF circuits
Buy the Vishay Series Quad HIFREQ Capacitor: VJ1111D330JXRAJ
Enhance your RF and microwave applications with Vishay's Quad HIFREQ series multilayer ceramic capacitors, offering high stability, extended temperature range up to 200°C, and high voltage ratings up to 7200 V. These capacitors feature RoHS compliance, various case sizes including 1111, 2525, and 3838, and excellent insulation resistance, making them ideal for MRI coils, RF instruments, and microwave amplifiers. With low dissipation factors and reliable noble metal electrodes, they ensure optimal performance in demanding high-frequency environments. Order online now for trusted quality and seamless integration into your RF designs.
Order your Vishay Series Quad HIFREQ capacitor today and give your RF and microwave projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Vishay VJ1111D330JXRAJ?
You can click on the BUY or RFQ button to purchase VJ1111D330JXRAJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111D330JXRAJ?
You can download the VJ1111D330JXRAJ datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111D330JXRAJ?
Vishay
