Vishay VJ1206Y105KXQTW1BC Ceramic Capacitor
Vishay surface mount multilayer ceramic chip capacitors are designed for commodity applications across various dielectric types including COG, X5R, X7R, and YSV. They offer high capacitance stability, rated voltage up to 100 V, and operate within temperature ranges from -55°C to +125°C depending on type. These capacitors are ideal for consumer electronics, telecommunications, data processing, and mobile devices, featuring RoHS compliance, nickel barrier with tin terminations, dry sheet technology, and noble or base metal electrodes for reliable performance in high-frequency circuits and space-constrained applications.
Vishay VJ1206Y105KXQTW1BC Ceramic Capacitor Specifications:
- Ceramic material: BaTiO3 based
- Operating Temperature: -55°C to +125°C (X7R, COG), -55°C to +85°C (X5R), -25°C to +85°C (Y5V)
- Capacitance Range: 0.5 pF to 220 μF depending on dielectric type
- Voltage Range: 10 Vp to 100 Vp
- TCC: ±30 ppm/°C (COG), +15% (X5R, X7R), +30%/-80% (Y5V)
- Insulation Resistance: 210 GΩ or R x C > 500 Ω x F
- Dissipation Factor: varies with dielectric type, typically below 10 %
- Maximum Voltage Testing: < 100 Vp for capacitance reliability
- Size options: from 0402 to 1210 case sizes
- Humidity Test Conditions: 30-70% RH, at ambient temperatures for capacitance and dissipation measurements
- Aging Rate: 0% per decade (COG), up to 12.5% (Y5V)
- Packaging: Paper and plastic tape options, reel sizes 7 and 13 inches
- Construction: BaTiO3 ceramic core, Ni and Cu electrodes, Sn outer layer
- Storage Conditions: Store at 5-40°C, avoid corrosive gases, direct sunlight, and rapid humidity changes

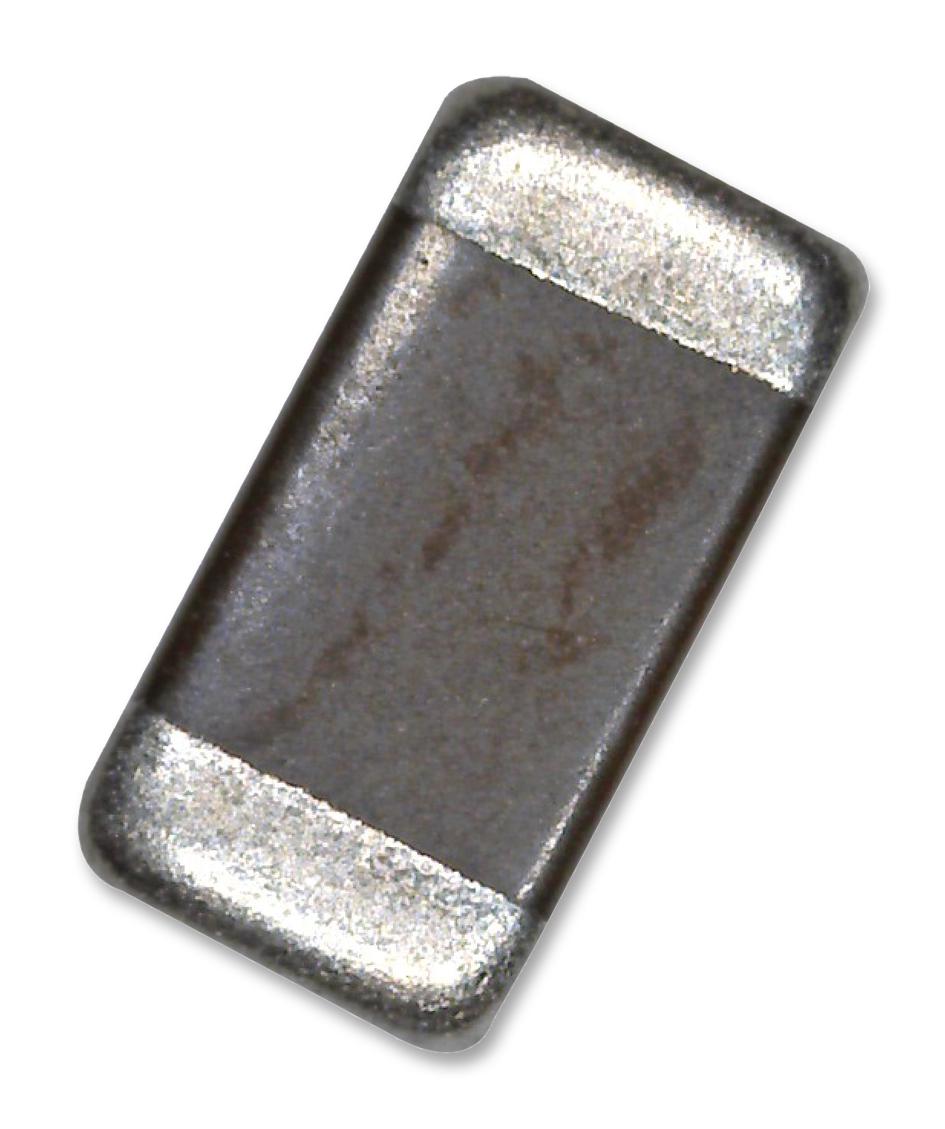

Buy the Buy Vishay Surface Mount Multilayer Ceramic Capacitors Part Number VJ1206Y105KXQTW1BC Online
Order Vishay ceramic capacitors online today and experience high stability and reliable operation in electronics. These surface mount components are perfect for consumer electronics, telecommunications, and data processing devices, offering advanced dielectric materials with operating voltages up to 100 V. Designed with RoHS compliance and robust construction, they ensure durability in various environmental conditions. Whether space is limited or high-frequency performance is required, these capacitors deliver exceptional quality, easy integration, and fast delivery for your manufacturing needs.
Get Vishay VJ1206Y105KXQTW1BC today—built for high stability and reliable performance in high-frequency and space-sensitive electronic circuits.
Frequently Asked Questions
Where can I buy Vishay VJ1206Y105KXQTW1BC?
You can click on the BUY or RFQ button to purchase VJ1206Y105KXQTW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1206Y105KXQTW1BC?
You can download the VJ1206Y105KXQTW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1206Y105KXQTW1BC?
Vishay
