Vishay VJ1812Y104KXEAT5Z High-Voltage Ceramic Capacitor
Vishay Vitramon VJ1812Y104KXEAT5Z is a surface-mount multilayer ceramic capacitor designed for high-voltage applications with surface arc-over protection. It offers reliable performance with excellent insulation resistance, stable capacitance over temperature, and high dielectric strength, making it ideal for power supplies, DC/DC converters, and voltage multipliers. Its compact size ensures minimal board space utilization, while its halogen-free, RoHS-compliant construction guarantees environmental safety and suitability for demanding electronic environments requiring robust high-voltage mitigation and endurance. Suitable for various high-voltage and high-reliability applications.
Vishay VJ1812Y104KXEAT5Z High-Voltage Ceramic Capacitor Specifications:
- Case size: 1212 (inch: 0.126 + 0.008 x 0.126 + 0.008)
- Capacitance: 0.1 μF (100,000 pF)
- Voltage rating: 2500 V
- Temperature coefficient: +15 % from -55°C to +125°C
- Capacitance range: 220 pF to 270 nF
- Insulation resistance: ≥ 100 MΩ at +25°C
- Dissipation factor: 2.5 % max at 1 kHz
- Aging rate: 1 % max per decade
- Dielectric: X7R
- RoHS compliant, halogen-free, surface-mount design
- Diameter: 0.126 inches (3.20 mm)
- Height: approximately 0.079 inches (2.00 mm)
- Termination: Tin-plated, polymer optional (contact factory for availability)
- Reliably resists surface arc-over in high-voltage circuits

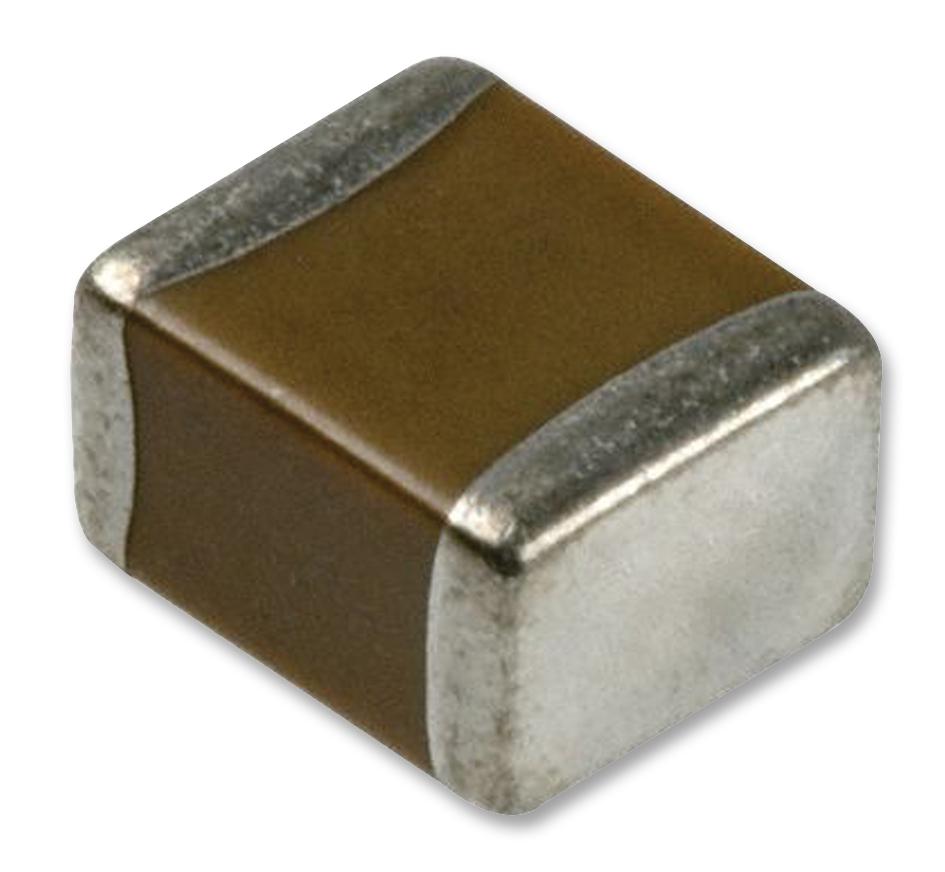

Buy the Vishay Series HVArc Guard X7R: VJ1812Y104KXEAT5Z
Order the high-voltage ceramic capacitor VJ1812Y104KXEAT5Z online today to benefit from advanced arc-over protection, RoHS compliance, and reliable high-voltage performance. Its compact size fits easily into crowded circuit boards, ensuring minimal space usage. Perfect for power supplies, voltage multipliers, and AC applications requiring durability and environmental safety. Secure your supply chain with swift online purchasing, and enjoy fast delivery of this proven and essential high-voltage mitigation component.
Buy Vishay VJ1812Y104KXEAT5Z now and experience unmatched reliability and high-voltage performance in compact ceramic capacitors.
Frequently Asked Questions
Where can I buy Vishay VJ1812Y104KXEAT5Z?
You can click on the BUY or RFQ button to purchase VJ1812Y104KXEAT5Z from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1812Y104KXEAT5Z?
You can download the VJ1812Y104KXEAT5Z datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1812Y104KXEAT5Z?
Vishay
