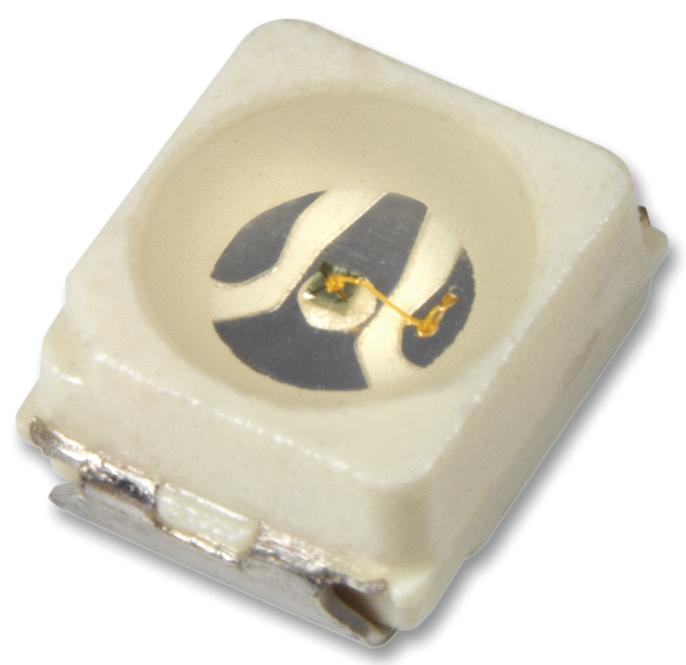

Vishay VLMO30L1M2GS08 Low Current SMD LED
The VLMO30L1M2-GS08 is a low-current SMD LED utilizing AllnGaP technology. Encased in a white thermoplastic package with epoxy-filled reflector, it provides high brightness and low power consumption. Suitable for indicator and backlight roles in battery-powered devices, LCDs, switches, and symbols, it offers compatibility with automatic placement, RoHS compliance, and a non-diffused lens for coupling to light pipes. It withstands up to 2kV ESD, features a 6V reverse voltage limit, and a maximum power dissipation of 40mW, making it ideal for automotive, telecommunication, industrial, and general lighting applications.
Vishay VLMO30L1M2GS08 Low Current SMD LED Specifications:
- Package: SMD PLCC-2
- Material: White thermoplast with epoxy-filled reflector
- Color: Orange
- Luminous Intensity: 7.1 med (min), 15-18 med (typ), 18 (max) cd
- Wavelength: 600-609 nm
- Forward Voltage: 1.8-2.2 V
- Reverse Voltage: 6 V
- DC Forward Current: 15 mA
- Surge Forward Current: 0.4 A
- Power Dissipation: 40 mW
- Junction Temperature: 125 °C
- Operating Temperature Range: -40 to +100 °C
- Storage Temperature Range: -40 to +100 °C
- ESD withstand voltage: Up to 2 kV
- RoHS compliant, halogen-free
- Designed for IR reflow, vapor phase, and wave soldering
- Applicable in automotive, telecommunication, backlighting, indicators, and industrial equipment
Buy the Vishay Series Low Current SMD LED: VLMO30L1M2GS08
Order the Vishay VLMO30L1M2-GS08 today for high-quality indicator and backlight solutions suited for automotive, telecommunication, and industrial applications. Featuring AllnGaP technology, it provides exceptional brightness with low power consumption, compatibility with automatic assembly, and a robust epoxy-filled package. Ideal for LCD backlighting, switches, and symbols with a maximum power dissipation of 40mW and ESD resistance up to 2kV, ensuring reliable performance in demanding environments. Purchase online now for fast delivery and superior lighting performance.
Get Vishay VLMO30L1M2-GS08 today—built for high brightness, low power, and reliable indicator lighting in your electronic designs.
Frequently Asked Questions
Where can I buy Vishay VLMO30L1M2GS08?
You can click on the BUY or RFQ button to purchase VLMO30L1M2GS08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLMO30L1M2GS08?
You can download the VLMO30L1M2GS08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLMO30L1M2GS08?
Vishay
