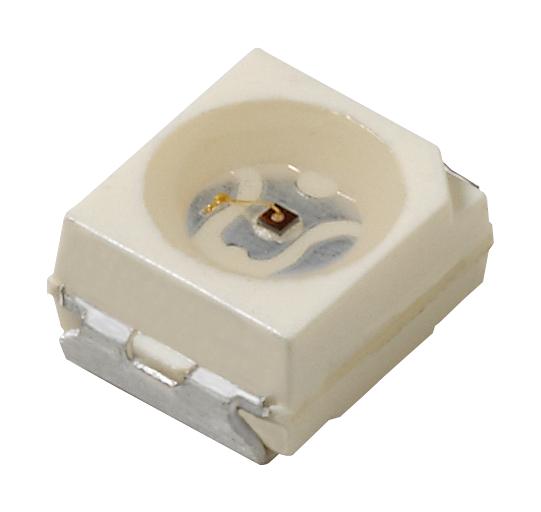

Vishay VLMY334BACBGS08 Power SMD LED
The VLMY334BACBGS08 is an advanced power SMD LED in a PLCC-2 package, utilizing AllnGaP technology for bright yellow illumination. Designed for traffic signals, signage, interior, and exterior lighting, this LED features high luminous intensity, broad viewing angles, and excellent thermal and ESD withstand performance. Compatible with various soldering methods, it ensures reliable operation in demanding industrial and automotive applications. The compact package includes clear epoxy inside a thermoplastic reflector, meeting strict quality and durability standards for long-term usage.
Vishay VLMY334BACBGS08 Power SMD LED Specifications:
- Package: SMD PLCC-2
- Material: AllnGaP technology
- Luminous intensity: 1800-2800 mcd
- Dominant wavelength: 583-594 nm
- Forward voltage: 1.9-2.25 V at 50 mA
- Peak wavelength: 591 nm
- Spectral bandwidth: 17-18 nm
- Viewing angle: ±60°
- Reverse voltage: 6 V (short term)
- DC forward current: 70 mA at 25°C
- Power dissipation: 200 mW
- Junction temperature: 125°C
- Operating temperature range: -40°C to +100°C
- Storage temperature: -40°C to +100°C
- Thermal resistance junction/ambient: 300 K/W
- Compliance: AEC-Q101 qualified, RoHS, Halogen-Free
- Soldering: Compatible with reflow, vapor phase, wave soldering, JEDEC preconditioning
- Size: 3.54 mm x 3.54 mm
Buy the Vishay VLMY334BACBGS08 – Reliable Yellow Power LED for Industrial Applications
Experience superior lighting with the Vishay VLMY334BACBGS08 Power SMD LED in compact PLCC-2 package. Designed for traffic signals, signage, and illumination applications, this high-brightness yellow LED offers excellent thermal management, broad viewing angles, and compliance with industry standards. Ideal for demanding environments, it ensures durability and consistent performance. Make your purchase online today and enhance your lighting projects with Vishay’s trusted semiconductor solutions, ensuring long-term reliability and efficiency in industrial and automotive systems.
Buy Vishay VLMY334BACBGS08 now and experience unmatched reliability and high brightness in industrial and automotive lighting.
Frequently Asked Questions
Where can I buy Vishay VLMY334BACBGS08?
You can click on the BUY or RFQ button to purchase VLMY334BACBGS08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLMY334BACBGS08?
You can download the VLMY334BACBGS08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLMY334BACBGS08?
Vishay
