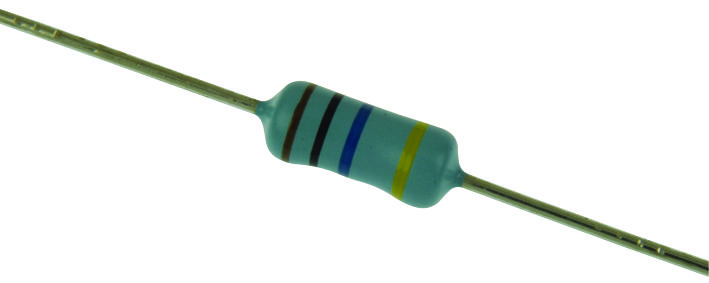

Vishay VR37000001005FA100 High Voltage Metal Glaze Resistor
Vishay high voltage and high resistance metal glaze leaded resistors are designed for demanding electrical applications requiring high stability, reliability, and high resistance values. They feature a ceramic substrate coated with a protective blue lacquer, welded electrolytic copper end caps, and laser-cut resistive layers with helical grooves. Suitable for high humidity environments, power supplies, automotive electronics, and white goods, these resistors meet UL, IEC, RoHS, and other safety standards. They withstand high pulse loading, are available in radial versions, and pass extensive testing for durability and safety.
Vishay VR37000001005FA100 High Voltage Metal Glaze Resistor Specifications:
- Resistance range: 100 kΩ to 68 MΩ
- Resistance tolerance: ±1%, ±2.5%, ±5%
- Temperature coefficient: ≤ 200 ppm/K
- Rated dissipation: 0.25 W to 0.5 W
- Operating voltage: 1600 V to 10,000 V
- Operating temperature: -55°C to +155°C
- Peak film temperature: 155°C
- Insulation voltage: 700 V for 1 min
- Thermal resistance: 140 K/W to 70 K/W
- Dimensions: VR25 – 6.5mm length, VR37 – 9mm length, VR68 – 18mm length
- Material: Metal alloy film on ceramic substrate, light blue lacquer coating
- Compliance: UL1676, IEC 60065, RoHS, CQC, VDE, and IEC safety standards
- Shock and vibration resistant, suitable for automatic insertion and soldering
- Radial version available for VR25 with lead spacing of 4.8mm
- Tested for climatic, humidity, thermal cycling, and mechanical robustness
Buy the Vishay Series VR High Voltage Resistors: VR25
Order the Vishay VR25 high voltage resistor online today for superior resistance stability and reliability in high voltage environments. Designed for power supplies, automotive, and industrial applications, these resistors meet all safety standards including UL1676 and RoHS compliance. With features like high pulse load capability, ceramic substrate, and protective lacquer coating, they ensure long-term durability and electrical performance. Perfect for demanding applications needing high resistance and stability, purchase now and ensure your project’s success with Vishay's proven quality.
Buy Vishay VR25 high voltage resistor now and experience unmatched reliability and high resistance stability for demanding electrical applications.
