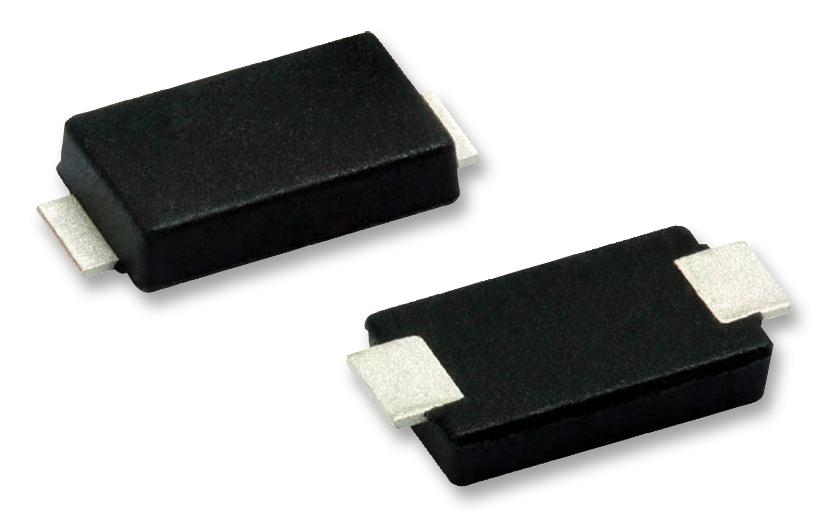

Vishay VS2EYH01M3H high-speed diode
Vishay's Hyperfast Rectifier, model VS-2EYH01-M3, is a high-efficiency, low forward voltage diode designed for high frequency, DC/DC converters, PFC, and industrial applications. It features a low profile SlimSMAW (DO-221AD) package, halogen-free and RoHS-compliant construction, and offers low leakage current with a low maximum junction temperature of 175°C. Its robust mechanical design includes matte tin plated leads, making it suitable for automated placement, providing high reliability in automotive and industrial power systems.
Vishay VS2EYH01M3H high-speed diode Specifications:
- Circuit configuration: Single diode
- Package: SlimSMAW (DO-221AD)
- Maximum junction and storage temperature: 175°C
- Peak repetitive reverse voltage: 100 V (VS-2EYHO1-M3), 200 V (VS-2EYHO2-M3)
- Average rectified forward current: 2 A at 151°C
- Forward voltage: 0.69V at 2A, 150°C
- Reverse leakage current: 20 μA at rated voltage and 150°C
- Peak surge current: 60 A (at 10 ms sine wave)
- Thermal resistance junction to ambient: 150°C/W
- Material: Halogen-free, RoHS compliant, matte tin plated leads
- Mechanical: Meets UL 94V-0 flammability rating
- Reliable in high frequency switching and power conversion applications
- Polarity indicated by colored band on cathode end
Buy the Buy Vishay Hyperfast Rectifier Part Number VS-2EYH01-M3 Online
Purchase the Vishay VS-2EYH01-M3 high-speed diode online today and enjoy superior power efficiency, fast recovery times, and reliable operation across automotive and industrial systems. Its halogen-free, RoHS-compliant design ensures environmental safety and compliance with industry standards. Ideal for high frequency, power conversion, and snubber circuits, this diode’s low forward voltage and high surge capacity provide optimal performance. Order now and benefit from fast delivery, competitive pricing, and technical support to ensure your project’s success.
Buy Vishay VS-2EYH01-M3 advanced hyperfast diode now and experience unmatched reliability and performance in power switching applications.
Frequently Asked Questions
Where can I buy Vishay VS2EYH01M3H?
You can click on the BUY or RFQ button to purchase VS2EYH01M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS2EYH01M3H?
You can download the VS2EYH01M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VS2EYH01M3H?
Vishay
