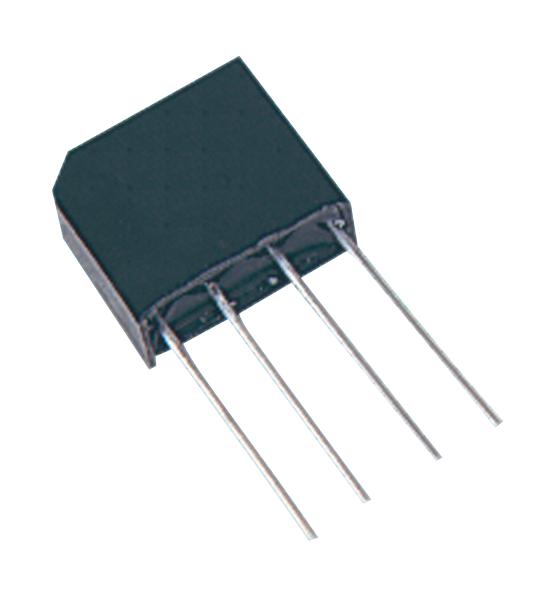

Vishay VS2KBP01 Bridge Rectifier
This 2A single phase encapsulated bridge rectifier features four diodes connected in a full bridge configuration, designed for general industrial and consumer applications. With a voltage range from 50V to 1000V, it offers high surge current capability and compact construction suitable for printed circuit board mounting. Operating efficiently within -40°C to +150°C, it ensures reliable performance in various electrical environments, making it ideal for rectification tasks in power supplies, industrial controls, and electronic equipment.
Vishay VS2KBP01 Bridge Rectifier Specifications:
- Maximum DC output current: 2.0 A at 50°C
- Peak surge current: 60 A (non-repetitive, 10-83 ms)
- Voltage ratings: 50V, 200V, 400V, 600V, 800V, 1000V
- Operating temperature range: -40°C to 150°C
- Package: D-44
- Physical dimensions: Length 22 mm, Width 15 mm, Height 17.5 mm
- Operating frequency range: 40 to 1000 Hz
- Maximum forward voltage per diode: 1.0 V at 1A
- Reverse leakage current: 10 A at 25°C
- Weight: 0.14 oz (4 g)
- Suitable for PCB mounting, RoHS compliant
Buy the Vishay VS2KBP – Reliable Rectifier for Industrial Applications
Order the Vishay VS2KBP bridge rectifier online today for dependable performance in industrial and consumer electronic applications. This compact, high surge current rectifier offers voltage ratings from 50V to 1000V, operates across wide temperature ranges, and features an easy-to-mount D-44 package. Ideal for power supplies, industrial controls, and electronic equipment, it ensures efficient rectification with high reliability. Purchase now to benefit from rapid shipping, quality assurance, and competitive pricing, making it a perfect choice for your electrical projects.
Get Vishay VS2KBP today—built for precision and long-lasting durability in power rectification tasks.
