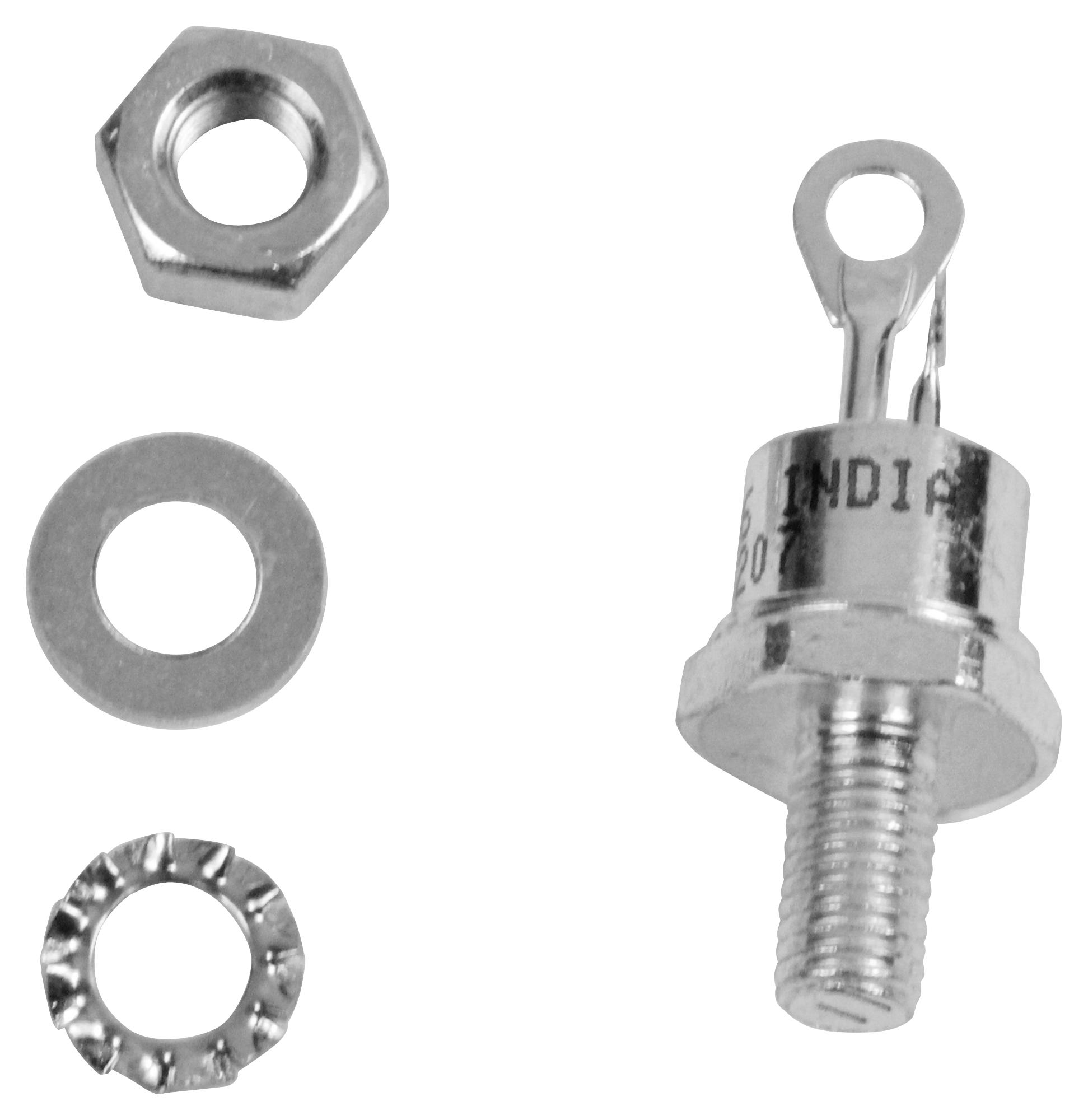

Vishay VS2N5207 Power Thyristor
The VS-2N5207 is a versatile phase control thyristor (SCR) suitable for general-purpose applications, featuring a stud mount for easy installation. It offers a maximum peak on-state voltage of 2.3V, a typical delay time of 1 microsecond, and a thermal resistance of 0.35°C/W from case to heat sink. Designed for industrial use, this SCR can handle a maximum RMS on-state current of 35A, with voltage ratings spanning from 25V to 1200V. Its robust specifications make it ideal for controlling high power loads reliably.
Vishay VS2N5207 Power Thyristor Specifications:
- Maximum peak on-state voltage: 2.3V
- RMS on-state current: 35A
- Voltage range: 25V to 1200V
- Peak reverse voltage: up to 1200V
- Delay time: 1 microsecond typical
- Thermal resistance from case to sink: 0.35°C/W
- Mounting style: Stud mount
- Operating temperature: -40°C to 125°C
- Package: TO-208AA (TO-48)
- Material: Silicon controlled rectifier (SCR)
- Reverse and forward voltage ratings: 25V to 1200V
- Impulse peak current capacity: Up to 410A at 10ms
- Certification: RoHS compliant
Buy the Buy Vishay SCR Part Number VS2N5207 Online
Purchase the Vishay SeriesVS2N5207 power thyristor online now to benefit from excellent high current handling and voltage ratings. This reliable SCR features a sturdy stud mount, a low delay time of 1 microsecond, and a thermal resistance of 0.35°C/W from case to sink. With a maximum RMS on-state current of 35A and voltage capacities up to 1200V, it is perfect for industrial circuits requiring durable and high-performance switching. Secure your supply today and advance your power management solutions effortlessly.
Order your Vishay SeriesVS2N5207 high-current SCR today and ensure reliable power control for your industrial projects with our quality components.
Frequently Asked Questions
Where can I buy Vishay VS2N5207?
You can click on the BUY or RFQ button to purchase VS2N5207 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS2N5207?
You can download the VS2N5207 datasheet or visit the Vishay website for support.
Who is the manufacturer of VS2N5207?
Vishay
