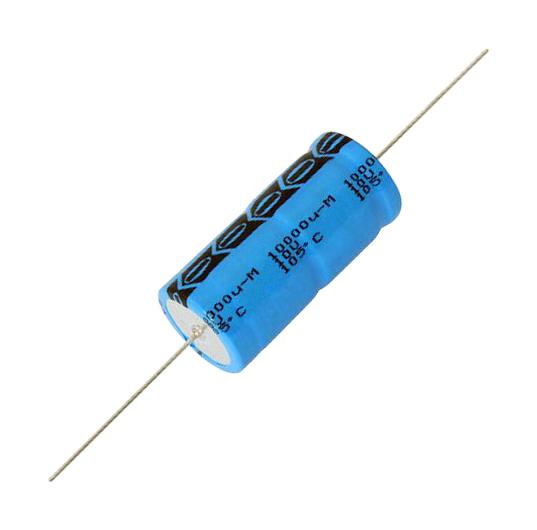

Vishay MAL212516102E3 Aluminum Electrolytic Capacitor
The 125 ALS series is an axial, miniature aluminum electrolytic capacitor designed for long life and high reliability. It features polarized, non-solid electrolyte construction with cylindrical aluminum cases insulated with a blue sleeve. Suitable for industrial, automotive, EDP, and telecommunication applications, it is commonly used for smoothing, filtering, buffering in switch-mode power supplies (SMPS), as well as for coupling, decoupling, and timing circuits. Its compact size and low mass make it ideal for portable and mobile equipment, stand-by applications, and low-height circuit boards. The series offers high ripple current capability, long operational life of up to 10,000 hours at 105°C, and a shelf life of 500 hours at 0V and 105°C. Taped versions are available for automatic insertion, with case diameters up to 15mm and lengths up to 30mm. It is charge and discharge proof, vibration and shock resistant, and conforms to IEC 60068 climatic categories 40/105/56.
Vishay MAL212516102E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal capacitance range: 27 UF to 18,000 pF
- Rated voltage range: 10 V to 63 V
- Temperature range: -40°C to +105°C
- Endurance: 5000 to 10,000 hours at 105°C
- Useful life up to 10,000 hours at 105°C
- Case sizes: 6.5x18 mm to 21x38 mm
- Form: Axial, taped versions up to 30 mm length
- Charge and discharge proof, vibration and shock resistant
- RoHS compliant, insulated with blue sleeve
- Conforms to IEC 60068 climatic categories 40/105/56
Buy the Vishay Series 125 ALS Aluminum Electrolytic Capacitors: MAL212516102E3
Purchase the Vishay 125 ALS series aluminum electrolytic capacitor online today for superior long-term performance and reliability. Its high ripple current capacity, and long lifespan of up to 10,000 hours at 105°C, ensure optimal operation in industrial, automotive, and telecommunication equipment. Compact and lightweight, this capacitor is ideal for smoothing, filtering, and buffering in switch-mode power supplies, as well as for coupling and decoupling circuits. Available in taped forms suitable for automatic insertion, it offers charge/discharge proofing and shock resistance. Buy now for dependable, high-quality electronics performance.
Get Vishay 125 ALS aluminum electrolytic capacitor today—built for long-lasting durability and high reliability in demanding applications.
Frequently Asked Questions
Where can I buy Vishay MAL212516102E3?
You can click on the BUY or RFQ button to purchase MAL212516102E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL212516102E3?
You can download the MAL212516102E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL212516102E3?
Vishay
