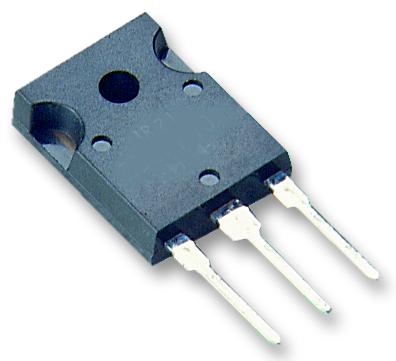

Vishay VS30TPS12M3 High Voltage SCR
The high-voltage silicon controlled rectifier series offers reliable medium-power switching and phase control in applications such as motor control, UPS, welding, and battery charge. Built with glass passivation technology, these SCRs operate efficiently up to 125°C junction temperature. They feature voltage ratings of 800 V or 1200 V, and current ratings of 20 A, 30 A. Designed for robustness and JEDEC qualification, they are suitable for soft-start rectification, AC switching, and industrial automation, ensuring durable performance in demanding environments.
Vishay VS30TPS12M3 High Voltage SCR Specifications:
- Package: TO-247AC
- Maximum junction and storage temperature: -40 to 125 °C
- Maximum thermal resistance junction-to-case: 0.8 °C/W
- Maximum thermal resistance junction-to-ambient: 40 °C/W
- Maximum continuous on-state current: 20 A
- Maximum RMS on-state current: 30 A
- Peak surge current (non-repetitive): 300 A
- Off-state voltage: 800 V or 1200 V depending on model
- Repetitive peak voltage: 900 V or 1300 V depending on model
- Vim (on-state voltage): 1.3 V at 20 A
- Gate trigger current: 45 mA at 25°C, 20 mA at 125°C
- Gate peak power: 80 W, peak gate current: 15 A
- Maximum di/dt: 150 A/μs
- Maximum gate voltage: 10 V
- Stand-off voltage: 800 V or 1200 V depending on model
- Thermal resistance junction to case: 0.8 °C/W
- Device weight: approximately 66 g
- Mounting torque: 10-12 in-lb
- Vertical mounting with smooth, greased surface recommended for optimal heat dissipation.
Buy the Vishay Series High Voltage SCR: VS30TPS12M3
Purchase Vishay high-voltage SCRs online today to ensure durable performance in motor control, UPS, welding, and industrial automation. These silicon controlled rectifiers offer voltage ratings of 800 V and 1200 V, with current capacities of 20 A and 30 A respectively. Designed with glass passivation technology, they operate reliably up to 125°C junction temperature. Their robust construction, JEDEC qualification, and RoHS compliance make them ideal for soft-start rectification and AC switching, providing dependable control in demanding environments. Order now to leverage quick delivery and factory-direct prices.
Buy Vishay high-voltage SCR series now and experience unmatched reliability and performance for medium-power switching and industrial applications.
