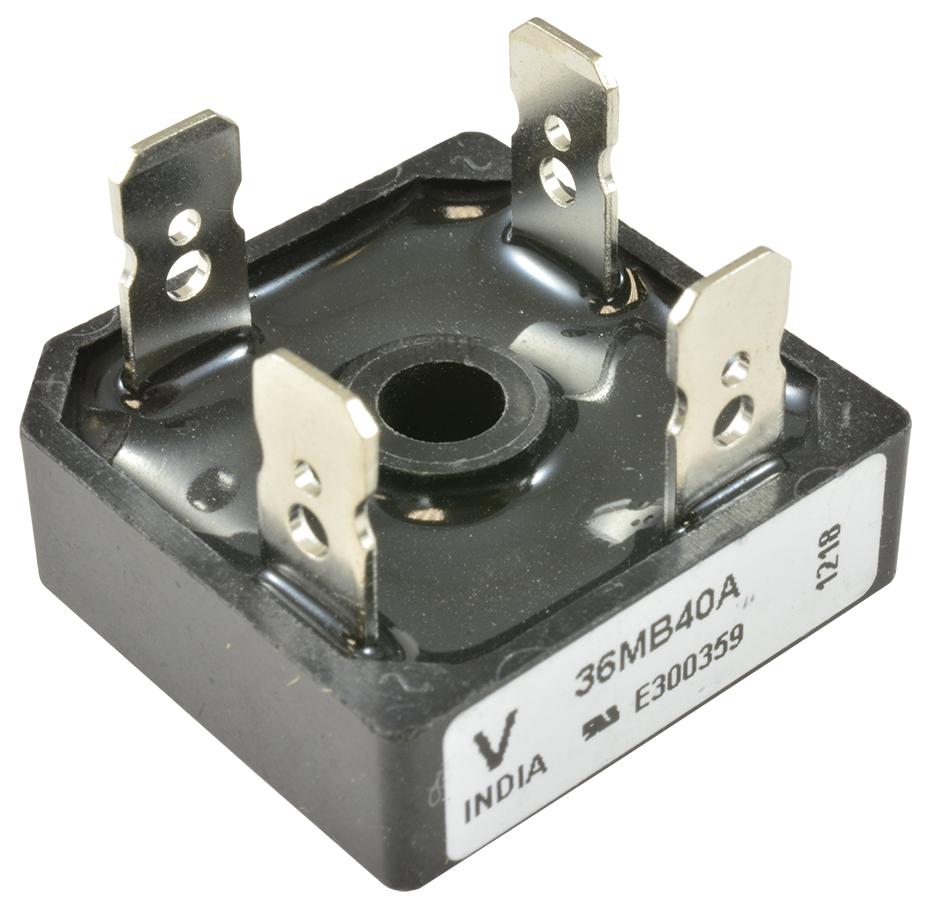

Vishay VS36MB40A Bridge Rectifier
The VS-36MB40A is a highly compact, encapsulated bridge rectifier designed for efficient and reliable operation. Featuring a center hole for easy mounting, it offers an excellent power-to-volume ratio and is suitable for general-purpose applications. This rectifier handles a maximum non-repetitive peak reverse voltage of 500V, with a maximum repetitive peak reverse current of 2A. It has a threshold voltage ranging from 0.79V to 0.96V and a maximum DC reverse current of 10µA per diode. The device also provides a 2700V RMS isolation voltage for the base plate. Commonly used in mains rectification, this product is in high demand, which may affect delivery times.
Vishay VS36MB40A Bridge Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 500 V
- Maximum Non-Repetitive Peak Reverse Voltage: 500 V
- Maximum DC Reverse Current: 10 µA per diode
- Forward Voltage Drop: 0.79V to 0.96V at 55A
- Peak Forward Surge Current: 400 A
- Isolation Voltage: 2700 V RMS
- Junction and Storage Temperature Range: -55°C to 150°C
- Thermal Resistance Junction to Case: 12 K/W
- Weight: 9 g
- Mounting Torque: 2.0 Nm
Buy the Buy Vishay Bridge Rectifier Part Number VS36MB40A Online
Purchase the Vishay bridge rectifier VS36MB40A online today to ensure efficient, reliable operation for your industrial or electronic equipment. This compact, encapsulated device offers excellent power-to-volume ratio, handling a maximum voltage of 500V and supporting peak surge currents of 400A. Its high isolation voltage of 2700V RMS and low reverse current make it ideal for mains rectification and general-purpose applications. Order now for fast delivery and enhance your system’s power performance with this robust, high-quality rectifier designed for demanding environments.
Get Vishay bridge rectifier VS36MB40A today—built for reliable power conversion with high voltage capacity and easy mounting features.
Frequently Asked Questions
Where can I buy Vishay VS36MB40A?
You can click on the BUY or RFQ button to purchase VS36MB40A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS36MB40A?
You can download the VS36MB40A datasheet or visit the Vishay website for support.
Who is the manufacturer of VS36MB40A?
Vishay
