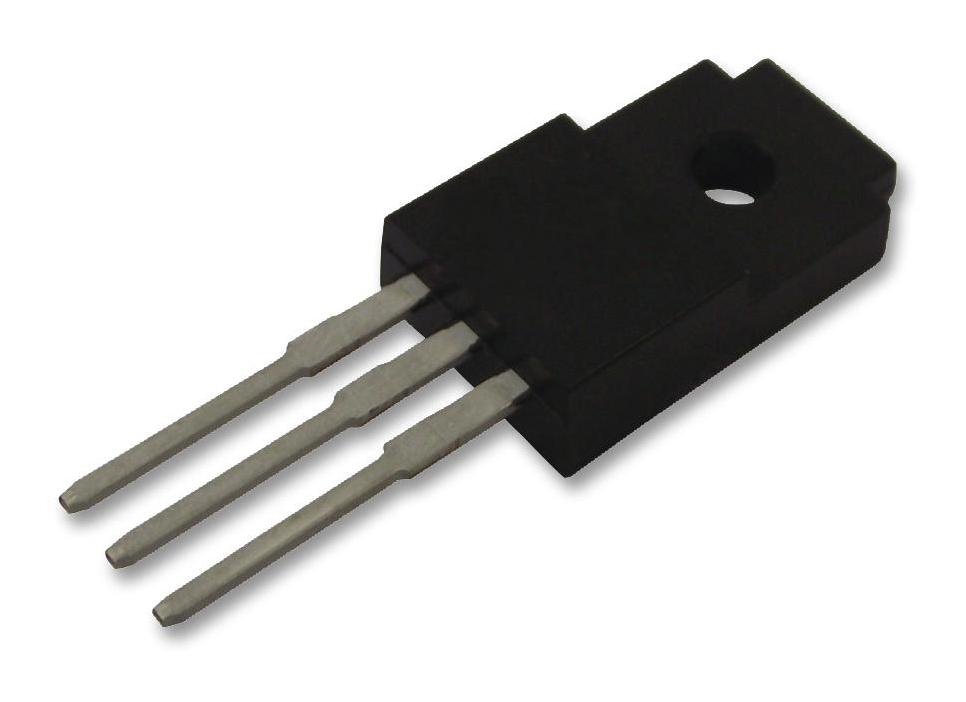

Vishay IRFI820GPBF Power MOSFET
The IRFI820G is a high-voltage N-Channel power MOSFET in an isolating FullPAK package, offering fast switching, low on-resistance, and excellent thermal performance for industrial applications. Designed with a rugged structure, it features a maximum drain-source voltage of 500V and a continuous drain current of 10A at Ta=25°C. The device incorporates a low gate charge of 24nC, low gate leakage, and high avalanche energy. Its robust design provides reliable operation in power switching, industrial controls, and high-voltage circuit applications, with excellent thermal and electrical characteristics.
Vishay IRFI820GPBF Power MOSFET Specifications:
- Drain-Source Voltage: 500 V
- Continuous Drain Current: 10 A at 25°C
- Maximum Power Dissipation: 30 W
- Gate-Source Voltage: ±20 V
- Gate Charge: 24 nC
- Drain-Source On-Resistance: 3.0 Ω at 10 V
- Repetitive Avalanche Energy: 3.0 mJ
- Repetitive Avalanche Current: 24 A
- Electrical Isolation: 2.5 kVms
- Thermal Resistance Junction-to-Ambient: 65 °C/W
- Thermal Resistance Junction-to-Case: 44 °C/W
- Operating Junction Temperature Range: -55°C to +150°C
- Package: ISOLATED FullPAK (TO-220)
- Mounting Torque: 6-32 or M3 screw recommended
- Reverse recovery charge: 13 nC
- Turn-On Delay Time: 8.0 ns
- Fall Time: 16 ns
Buy the Buy Vishay Siliconix IRFI820G Part Number IRFI820GPBF Online
Order the Vishay Siliconix IRFI820G power MOSFET online today to get a high-voltage N-channel device ideal for industrial and high-power switching applications. Featuring a maximum drain-source voltage of 500V, a continuous drain current of 10A, low on-resistance, and excellent thermal characteristics, this ruggedized Power MOSFET provides reliable, fast switching performance. Its isolating FullPAK package simplifies mounting and improves thermal management, making it suitable for high-voltage power supplies, motor drives, and industrial control systems. Purchase now for fast delivery and dependable performance.
Buy Vishay Siliconix IRFI820G now and experience unmatched reliability and power switching efficiency with the high-voltage, low Rds(on) N-channel MOSFET.
Frequently Asked Questions
Where can I buy Vishay IRFI820GPBF?
You can click on the BUY or RFQ button to purchase IRFI820GPBF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IRFI820GPBF?
You can download the IRFI820GPBF datasheet or visit the Vishay website for support.
Who is the manufacturer of IRFI820GPBF?
Vishay
