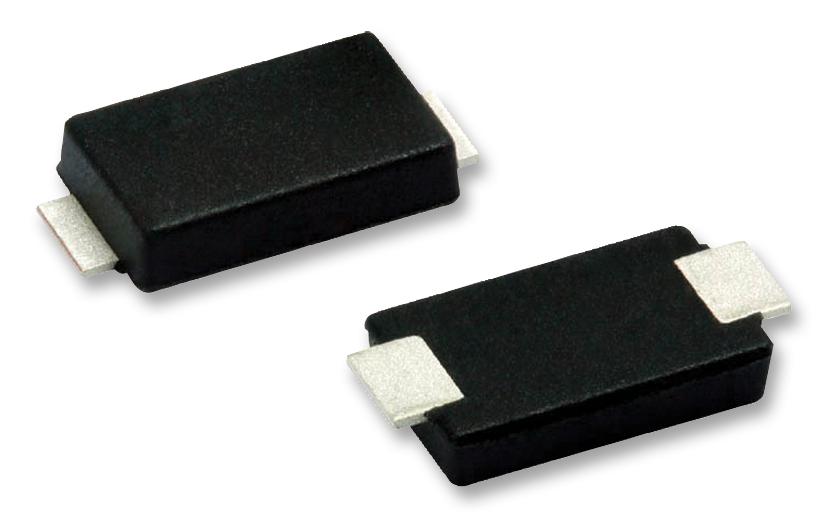

Vishay VS3EYH01HM3H High-Speed Diode
The Vishay Hyperfast Rectifier is a high-speed diode rated at 3 A with a voltage rating of 100 V or 200 V, suitable for high-frequency switching, freewheeling, DC/DC converters, PFC, snubber, industrial, and automotive applications. Packaged in a SlimSMAW (DO-221AD) case, it features a low profile, low forward voltage drop, low leakage current, and is RoHS-compliant. The device is AEC-Q101 qualified, halogen-free, and RoHS compliant, with fast recovery time and high junction temperature tolerance, making it ideal for automated placement and demanding environments.
Vishay VS3EYH01HM3H High-Speed Diode Specifications:
- Rated current: 3 A
- Peak repetitive reverse voltage: 100 V or 200 V
- Forward voltage: 0.71 – 0.79 V at 3A
- Reverse leakage current: 20 A at rated voltage and 150°C
- Recovery time: 16 ns (typical)
- Junction capacitance: 16 pF at 200 V
- Operating junction temperature: -55°C to +175°C
- Thermal resistance junction to mount: 12-15 °C/W (on infinite heatsink)
- Thermal resistance junction to ambient: 62-150 °C/W
- Package: SlimSMAW (DO-221AD), halogen-free, RoHS-compliant
- Material: matte tin plated terminals
- Electrically qualified: AEC-Q101, halogen-free
- Circuit configuration: Single diode
- Features include low forward voltage, fast recovery, and low leakage
- Meets UL 94 V-0 flammability rating
Buy the Vishay VS3EYH01HM3H – Reliable High-Speed Diode for Industrial Applications
Enhance your projects with the Vishay high-speed diode, offering 3A current, 100V/200V ratings, compact SlimSMAW package, and fast recovery time. Perfect for high-frequency switching, PFC, and automotive applications, this diode delivers low forward voltage, high temperature endurance, and RoHS compliance. Designed for automated placement, it ensures high reliability and performance in demanding environments. Buy online today and benefit from rapid delivery and genuine Vishay quality, ideal for engineers and manufacturers seeking durability and efficiency in their electronic systems.
Order your Vishay SeriesVS3EYH01HM3H high-speed diode today and ensure your industrial and automotive circuits operate with maximum efficiency and reliability.
Frequently Asked Questions
Where can I buy Vishay VS3EYH01HM3H?
You can click on the BUY or RFQ button to purchase VS3EYH01HM3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS3EYH01HM3H?
You can download the VS3EYH01HM3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VS3EYH01HM3H?
Vishay
