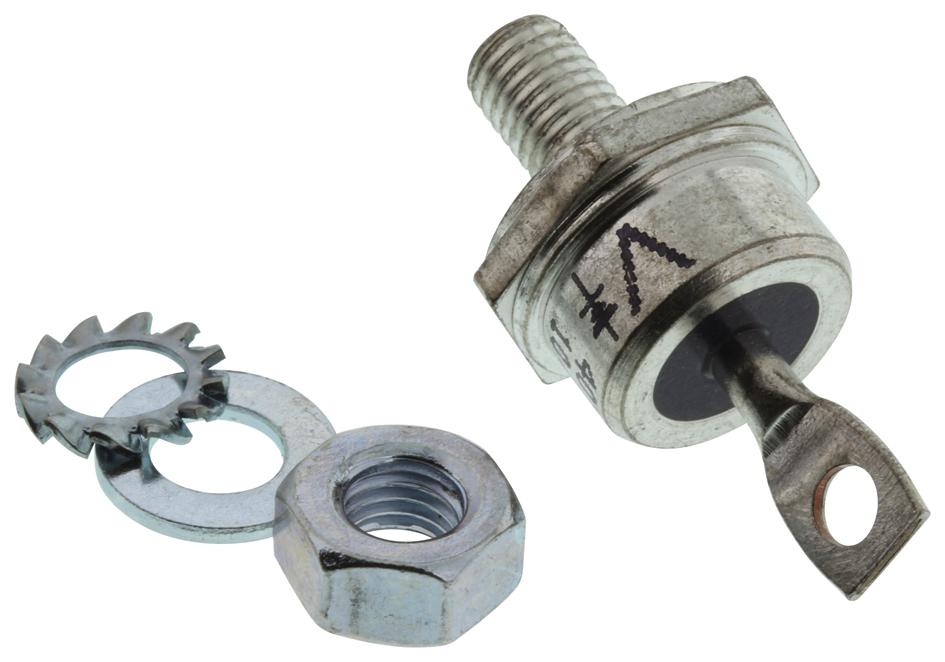

Vishay VS40HF10 High Surge Diode
The series of 40HF(R) series high surge current rectifier diodes are designed for a wide range of industrial applications including power supplies, battery chargers, converters, and machine tool controls. These diodes feature high surge current capability—up to 40A—and are available in stud cathode and anode versions. With voltage ratings up to 1600V, they offer reliable performance under demanding conditions. Their robust construction ensures durability for continuous operation in high-temperature environments with maximum junction temperatures from -65°C to 190°C, making them ideal for various power management and rectification tasks.
Vishay VS40HF10 High Surge Diode Specifications:
- Maximum repetitive peak reverse voltage: 100V to 1600V
- Average forward rectified current: 40A
- Peak surge current: 595A @ 8.3ms
- Maximum junction temperature: -65°C to 190°C
- Thermal resistance: junction to case 0.25°C/W, junction to heatsink 1.0°C/W
- Case style: DO-203AB (DO-5)
- Maximum allowed mounting torque: 23-34 Nm (not lubricated threads)
- Thermal resistance: junction to case 0.25°C/W, junction to heatsink 1.0°C/W
- Dimensions: Approximate weight 17g
- Forward voltage drop: 1.30V at 125A, Tj=26°C
Buy the IR High Surge Series 40HF(R) – Reliable Rectifier Diodes for Industrial Applications
Purchase the IR 40HF(R) high surge current rectifier diode online today for dependable power rectification in industrial, power supply, and control systems. Featuring voltage ratings up to 1600V and a maximum forward current of 40A, this diode provides high surge capacity and thermal stability, suitable for applications demanding durability and high performance. Its robust construction and precise specifications guarantee long-term reliability in challenging environments. Order now and integrate top-quality rectification components into your projects for efficient and safe operation.
Order your IR 40HF(R) high surge current diodes today and ensure your power systems operate reliably with top-grade rectification components.
Frequently Asked Questions
Where can I buy Vishay VS40HF10?
You can click on the BUY or RFQ button to purchase VS40HF10 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS40HF10?
You can download the VS40HF10 datasheet or visit the Vishay website for support.
Who is the manufacturer of VS40HF10?
Vishay
