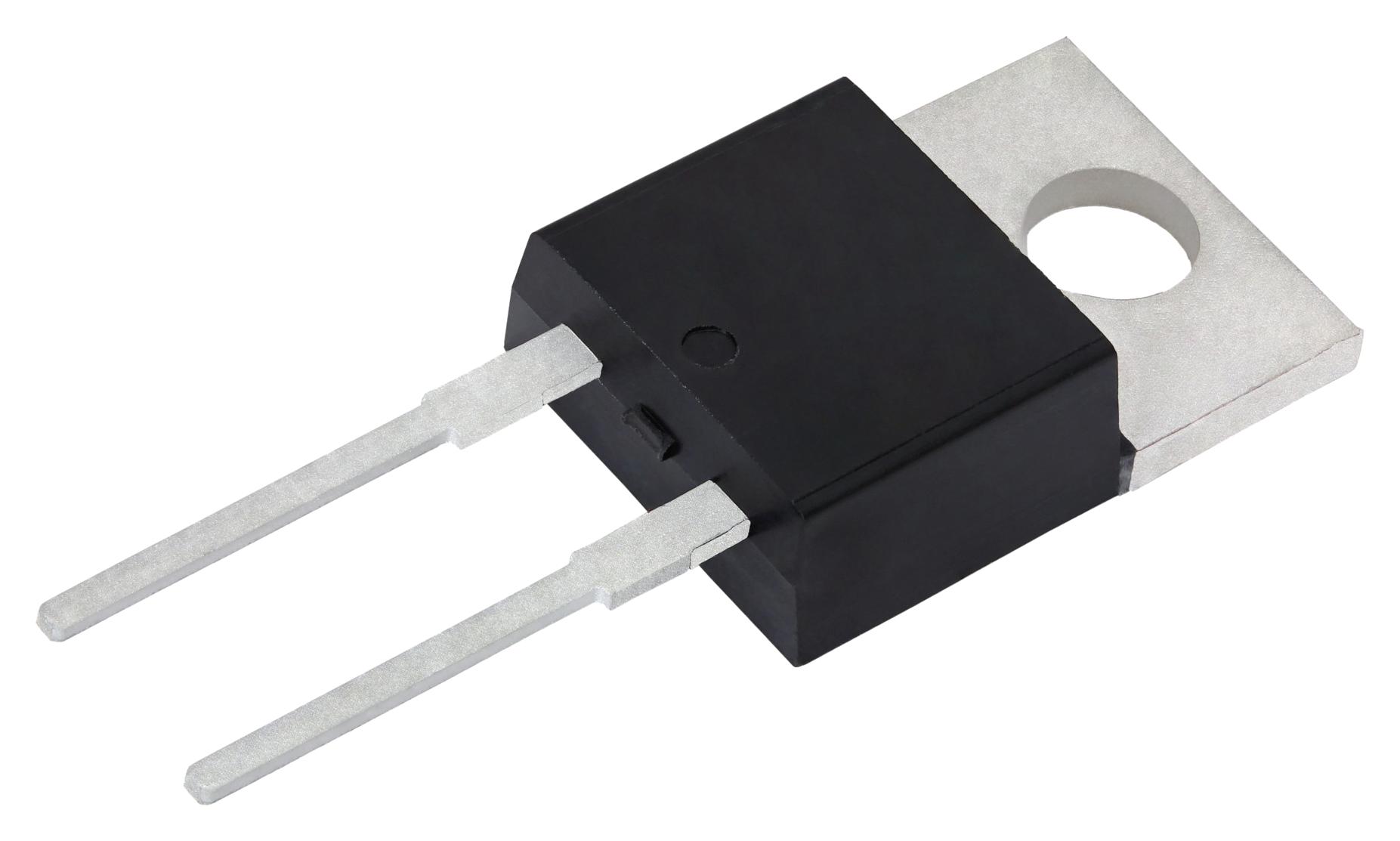

Vishay VSC10ET07TM3 Silicon Carbide Diode
The Vishay VSC10ET07T-M3 is a high-performance 650 V SiC Schottky diode designed for high-speed switching and rugged applications. Suitable for AC/DC PFC and DC/DC converters, it features low forward voltage drop and minimal recovery tail, ensuring efficient operation over a wide temperature range. With a TO-220 package and halogen-free, RoHS-compliant construction, this diode offers excellent thermal stability and surge ruggedness, making it ideal for fast rectification in high-frequency power supplies and electronic systems requiring reliable, low-loss switching.
Vishay VSC10ET07TM3 Silicon Carbide Diode Specifications:
- Maximum repetitive reverse voltage: 650 V
- Average rectified forward current: 10 A at 125°C
- Forward voltage: 1.75 V at 10 A and 150°C, 1.85 V at 175°C
- Peak surge current: 35 A at 25°C, 60 A at Tc = 110°C
- Repetitive peak surge current: 35 A
- Maximum power dissipation: 26 W at 110°C
- Operating junction and storage temperatures: -55°C to +175°C
- Junction-to-case thermal resistance: 1.8°C/W
- Capacitance: 45 pF at 400 V, 1 MHz
- Total charge: 28 nC at 400 V, 1 MHz
- Package: TO-220AC, halogen-free, RoHS-compliant
- RoHS compliant, halogen-free, lead-free terminals, solderable per standards
Buy the Buy Vishay SiC Schottky Diode Part Number VSC10ET07TM3 Online
Order the Vishay VSC10ET07T-M3 SiC Schottky diode online for reliable high-voltage switching with low forward voltage and excellent thermal stability. This 650 V device delivers efficient high-frequency rectification, ideal for power supplies, converters, and electronic systems requiring ruggedness and quick switching. Its halogen-free, RoHS-compliant construction ensures environmentally friendly manufacturing. Easy to solder and mount, it provides outstanding surge current handling and minimal recovery losses, making it the perfect choice for demanding industrial applications requiring fast, efficient, and reliable diode performance.
Get Vishay VSC10ET07T-M3 today—built for high-speed switching, rugged durability, and efficient rectification in power electronics.
Frequently Asked Questions
Where can I buy Vishay VSC10ET07TM3?
You can click on the BUY or RFQ button to purchase VSC10ET07TM3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSC10ET07TM3?
You can download the VSC10ET07TM3 datasheet or visit the Vishay website for support.
Who is the manufacturer of VSC10ET07TM3?
Vishay
