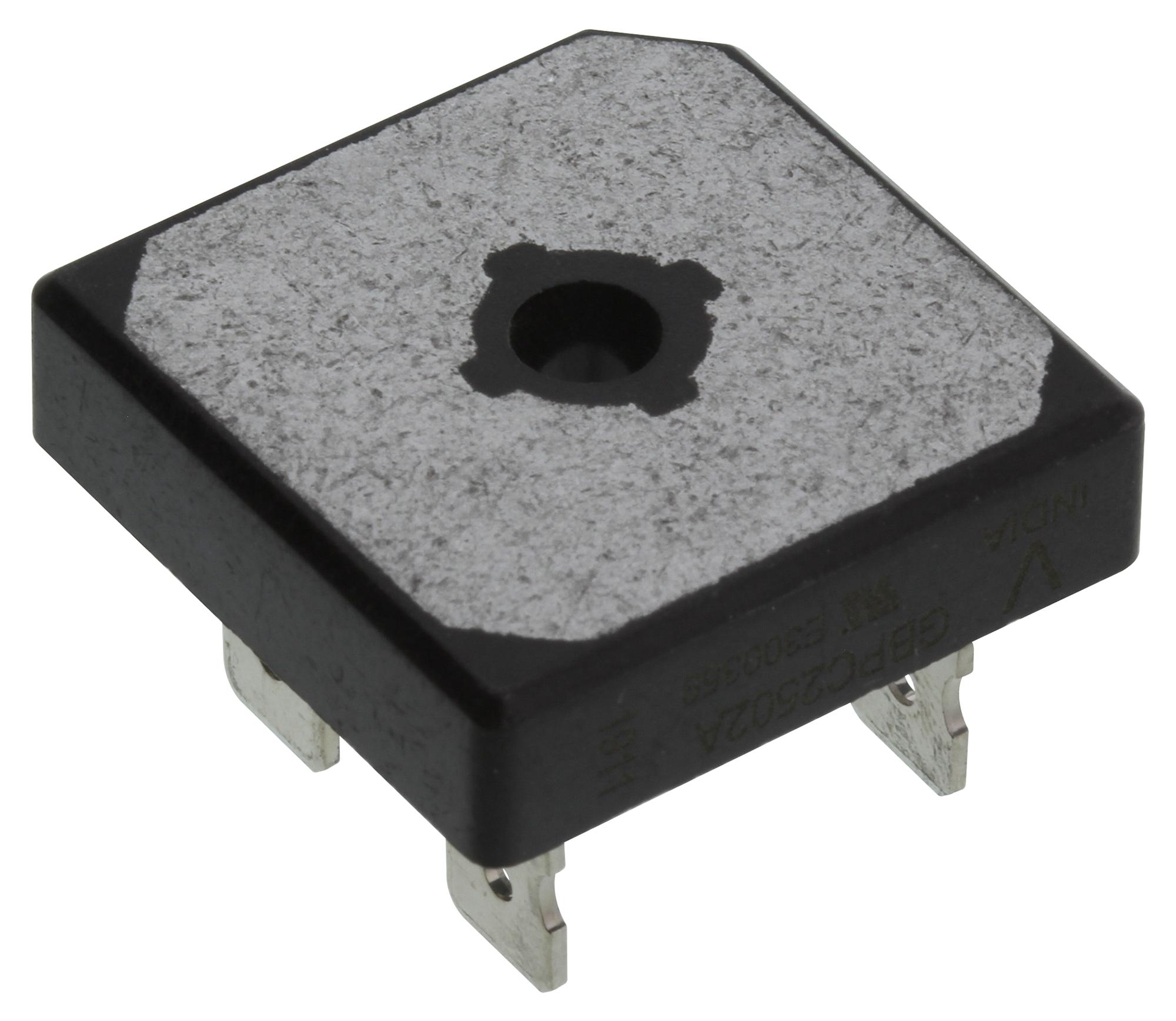

Vishay VSGBPC2502A Power Rectifier
The VS-GBPC2502A is a compact single-phase power diode bridge rectifier designed for efficient operation in general-purpose applications. It features a high thermal conductivity insulated case, glass-passivated chips, and nickel-plated terminals compatible with lead-free soldering at 260°C to 275°C using SAC305 alloy. The device includes a mounting hole and a molded positive polarity symbol. Its junction temperature range is -55°C to 150°C, making it ideal for mains rectification and industrial power conversion tasks, offering reliable performance and excellent power-to-volume ratio.
Vishay VSGBPC2502A Power Rectifier Specifications:
- Package: High thermal conductivity insulated case
- Number of Pins: 4
- Terminal Type: Push-on, wrap-around, or solder
- Terminal Material: Nickel plated, solderable with lead-free alloys
- Mounting Hole: Center hole for mounting
- Operating Temperature Range: -55°C to 150°C
- Reverse Voltage Range: 200 V to 1200 V
- Surge Current Capability: Up to 475 A peak
- Peak Reverse Voltage: 200 V to 1200 V
- Maximum Repetitive Peak Reverse Voltage: 275 V to 1200 V
- Maximum Non-Repetitive Surge Current: 475 A
- Maximum Forward Current (DC): 25 A to 35 A
- Forward Voltage Drop: Typically around 1 V at 25 A
- Thermal Resistance, Junction to Case: 1.4 K/W
- Thermal Resistance, Case to Heatsink: 0.2 K/W
- Junction and Storage Temperature Range: -55°C to 150°C
- Weight: Approximately 16 g
- Certification: UL E300359 approved
Buy the Vishay VSGBPC2502A – Reliable Power Rectifier for Industrial Applications
Order the Vishay VSGBPC2502A now and benefit from a high-efficiency single-phase bridge rectifier. It features a robust, insulated case, glass-passivated chips, and nickel-plated terminals for lead-free soldering. Designed to operate over a wide temperature range from -55°C to 150°C, it ensures reliable power conversion in industrial and general-purpose applications. With UL approval and excellent power-to-volume ratio, this device offers durability, ease of installation, and top performance for all your mains rectification needs. Purchase online today for dependable operation.
Buy Vishay VSGBPC2502A now and experience unmatched reliability and performance in power rectification for industrial and consumer applications.
