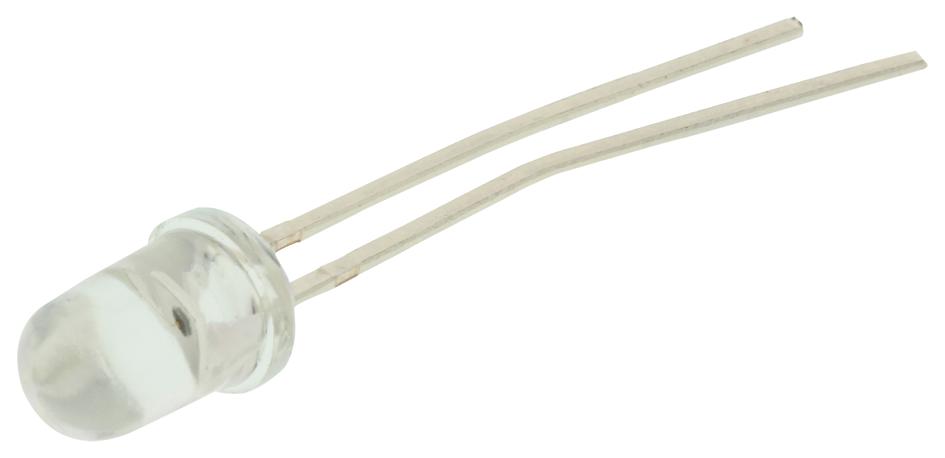

Vishay VSLY5850 Infrared Emitting Diode
The VSLY5850 is an 850nm infrared emitting diode utilizing GaAlAs surface emitter chip technology. It features extremely high radiant intensity, high optical power, and fast response time. Encased in a clear molded package, it is suitable for high pulse current operation and offers good spectral matching with CMOS cameras. Applications include infrared radiation sources for CMOS camera operation, high-speed IR data transmission, smoke and fire detectors, and IR flash devices. The device includes leads with stand-off, ensuring high reliability, and provides a narrow half-intensity angle of ±3°. Lead times may be extended. Not eligible for discounts.
Vishay VSLY5850 Infrared Emitting Diode Specifications:
- Package type: T-1%
- Dimensions: 5.75 ± 0.15 mm length, 8 mm width with parabolic lens
- Peak wavelength: 850 nm
- Spectral bandwidth: 30 nm
- Forward voltage: 1.65–19 V at 100 mA, 2.9 V at 1 A
- Forward current: 100 mA (typical), Peak 200 mA, Surge 1 A
- Radiant intensity: 600 mW/sr at 100 mA
- Radiant power: 55 mW at 100 mA
- Rise and fall times: 10 ns each
- Operating temperature range: -40°C to +85°C
- Storage temperature: -40°C to +100°C
- Soldering temperature: 260°C for 5 seconds
- Thermal resistance junction/ambient: 230 K/W
- Peak wavelength tolerance: ±10 nm
- Narrow angle of half intensity: ±3°
- Compliance: RoHS
- Material: GaAlAs
- Encapsulation: Clear molded plastic with parabolic lens
Buy the Vishay VSLY5850 – Reliable Infrared Emitting Diode for Industrial Applications
Purchase the Vishay VSLY5850 infrared emitting diode online to benefit from high radiant intensity, high power output, and rapid response suitable for CMOS cameras, IR data transmission, smoke detection, and IR flash applications. This high-quality IR LED features a narrow half-intensity angle of ±3°, making it ideal for precise optical projects. Its robust construction ensures high reliability even in demanding environments. Order now to ensure quick delivery and upgrade your infrared application with a dependable, high-performance diode designed for industrial use.
Get Vishay VSLY5850 today—built for high optical power and fast response in infrared technology.
Frequently Asked Questions
Where can I buy Vishay VSLY5850?
You can click on the BUY or RFQ button to purchase VSLY5850 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSLY5850?
You can download the VSLY5850 datasheet or visit the Vishay website for support.
Who is the manufacturer of VSLY5850?
Vishay
