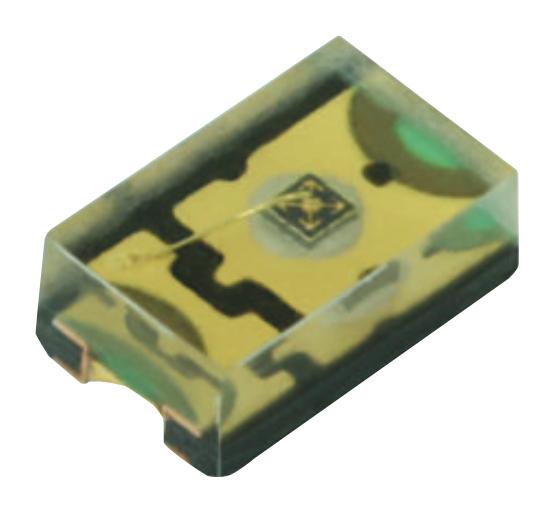

Vishay VSMY1850ITX01 Infrared Emitter Diode
The VSMY1850ITX01 is a high-speed infrared emitting diode operating at 850 nm, designed for surface mounting in an 0805 package. It offers high radiant intensity, optical power, and reliability, suitable for miniaturized optical sensors, proximity switches, and automotive IR applications. Qualified under AEC-Q101, it can operate from -40°C to +105°C, with a peak wavelength of 850 nm, and is RoHS compliant. Its compact surface-mount form factor ensures easy integration into dense electronic assemblies for IR communication, sensing, and illumination tasks.
Vishay VSMY1850ITX01 Infrared Emitter Diode Specifications:
- Package type: surface mount
- Package form: 0805
- Dimensions (Lx W x H in mm): 2 x 1.25 x 0.85
- Peak wavelength: 850 nm
- Forward voltage: 1.65 to 1.9 V at 100 mA
- Forward current: 100 mA
- Peak forward current: 200 mA (tp/T = 0.5, 100 ps)
- Power dissipation: 190 mW
- Operating temperature range: -40°C to +105°C
- Storage temperature range: -40°C to +110°C
- Reflow soldering temperature: 260°C
- Junction temperature: 100°C
- Spectral bandwidth: 30 nm
- Radiant intensity: typical 10 mW/sr at 100 mA
- Angle of half intensity: ±60°
- Peak wavelength: 850 nm
- Material: GaAlAs surface emitter chip
- Compliance: RoHS, AEC-Q101 qualified
Buy the Buy Vishay Infrared Emitter Part Number VSMY1850ITX01 Online
Order Vishay VSMY1850ITX01 infrared emitter diode online today for high radiant power and fast response. Perfect for sensors, proximity switches, and automotive IR applications, this compact surface-mount component offers robust performance from -40°C to +105°C. It features a peak wavelength of 850 nm, RoHS compliance, and high reliability, ensuring seamless integration into your designs. Whether for industrial, automotive, or consumer electronics, purchase now to benefit from fast shipping and trusted quality for your optical and sensing needs.
Get Vishay VSMY1850ITX01 today—designed for high-speed IR sensing, reliable performance, and easy surface mounting.
Frequently Asked Questions
Where can I buy Vishay VSMY1850ITX01?
You can click on the BUY or RFQ button to purchase VSMY1850ITX01 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSMY1850ITX01?
You can download the VSMY1850ITX01 datasheet or visit the Vishay website for support.
Who is the manufacturer of VSMY1850ITX01?
Vishay
