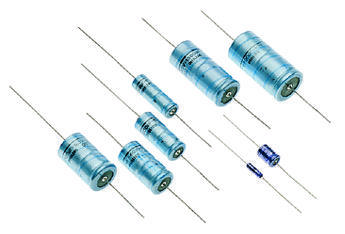

Vishay MAL202139479E3 Aluminum Electrolytic Capacitor
These high-quality aluminum electrolytic capacitors feature axial design, long useful life, compact size, and high capacitance. Suitable for industrial, automotive, and audio-video applications, they provide reliable filtering, decoupling, and smoothing. With operating temperatures from -40°C to +85°C, they support high ripple currents and endure thousands of hours under specified conditions. Taped versions facilitate automatic insertion, making installation efficient. Marked with detailed information including capacitance, voltage, and series number, they meet RoHS compliance and standards such as IEC 60384-4 and EN 130300, ensuring durability and safety in a range of electronic systems.
Vishay MAL202139479E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 45x10 mm, 10x30 mm, 21x38 mm, and others
- Rated capacitance: 1 UF to 15,000 UF
- Tolerance: ±20%
- Rated voltage: 6.3 V to 100 V
- Temperature range: -40°C to +85°C
- Endurance: 2500 to 8000 hours at 85°C
- Useful life: up to 80,000 hours at 85°C, up to 200,000 hours at 40°C
- Mounting: Axial leads, cylindrical aluminum case, insulated with blue sleeve
- RoHS compliant, taped versions available for automatic insertion
- Markings: Capacitance, voltage, temperature, date code, series number, manufacturing info
- Impedance: Z Max. at 10 kHz, ESR, leakage current within specified limits
- Physical dimensions vary with case size, typical dielectric strength, and construction details
- High ripple current capability, long useful life, lot-to-lot consistency
Buy the Vishay Series 021 Aluminum Electrolytic Capacitor: MAL202139479E3
Secure your electronic projects with the highly reliable Vishay Series 021 aluminum electrolytic capacitor. Featuring a long useful life of up to 80,000 hours at 85°C, these axial capacitors are perfect for industrial, automotive, and audio-visual systems. They offer high capacitance in a compact design, are RoHS compliant, and support automatic tape insertion. Marked with detailed specifications, they meet international standards such as IEC 60384-4 and EN 130300. Purchase online for fast delivery and excellent performance in demanding applications.
Order your Vishay Series 021 aluminum electrolytic capacitor MAL202139479E3 today and ensure your electronics are supported by reliable, durable components.
Frequently Asked Questions
Where can I buy Vishay MAL202139479E3?
You can click on the BUY or RFQ button to purchase MAL202139479E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL202139479E3?
You can download the MAL202139479E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL202139479E3?
Vishay
