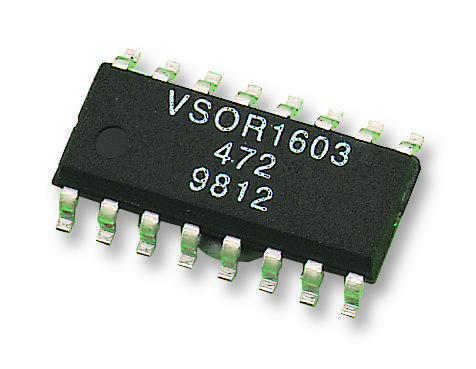

Vishay VSOR1601103JTF Thin Film Resistor Network
Vishay Dale Thin Film resistor networks are rugged, surface-mount components designed for use in analog and digital circuits in industrial, medical, and scientific instrumentation. Packaged in molded plastics with various sizes, they offer high stability, low noise, and environmental protection. Available in different configurations such as isolated, bussed, and dual terminators, these networks feature tantalum nitride resistive elements on silicon substrates, with resistance ranges from 10 Ω to 47 kΩ. They are compliant with RoHS, UL 94 V-0 flame resistance, and moisture sensitivity standards, suitable for automatic SMT equipment.
Vishay VSOR1601103JTF Thin Film Resistor Network Specifications:
- Material: Tantalum nitride on silicon
- Resistance Range: 10 Ω to 47 kΩ
- Number of Pins: 16, 20, 24
- Power Rating: 16 = 1.0 W, 20 = 1.2 W, 24 = 1.4 W at 0°C to +70°C
- Tolerance: Standard 5%, 2%, and 1%
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Voltage Coefficient: 50 ppm (typical)
- Noise: <-35 dB
- Terminals: Copper alloy with 100% matte tin plating
- Durability: Resistance to solvents, permanency testing per MIL-STD-202
- Body Material: Molded epoxy, Lead Coplanarity: 0.0005"
- Dimensions: VTSR (TSSOP): 0.206" x 0.390"; VSSR (QSOP): 0.193" x 0.341"; VSOR (SOIC): 0.390" x 0.341"
- Environmental: RoHS, UL 94 V-0 flame resistant, moisture sensitivity level 1
Buy the Vishay Series Thin Film Resistor Networks: VSOR1601103JTF
Order Vishay Thin Film resistor networks VSOR1601103JTF online today and benefit from high precision, stable performance, and efficient surface-mount packaging. Perfect for automated assembly, these resistor networks offer resistance values from 10 ohms to 47 kilo-ohms, with tolerance options including 1%, 2%, and 5%. Their rugged molded epoxy bodies ensure environmental protection and long-lasting durability. Whether for industrial, scientific, or medical applications, purchasing online guarantees quick delivery, expert support, and competitive prices. Enhance your electronic projects with Vishay's proven quality and reliability now!
Buy Vishay resistor networks VSOR1601103JTF now and experience unmatched reliability and high stability for your circuit designs.
Frequently Asked Questions
Where can I buy Vishay VSOR1601103JTF?
You can click on the BUY or RFQ button to purchase VSOR1601103JTF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSOR1601103JTF?
You can download the VSOR1601103JTF datasheet or visit the Vishay website for support.
Who is the manufacturer of VSOR1601103JTF?
Vishay
