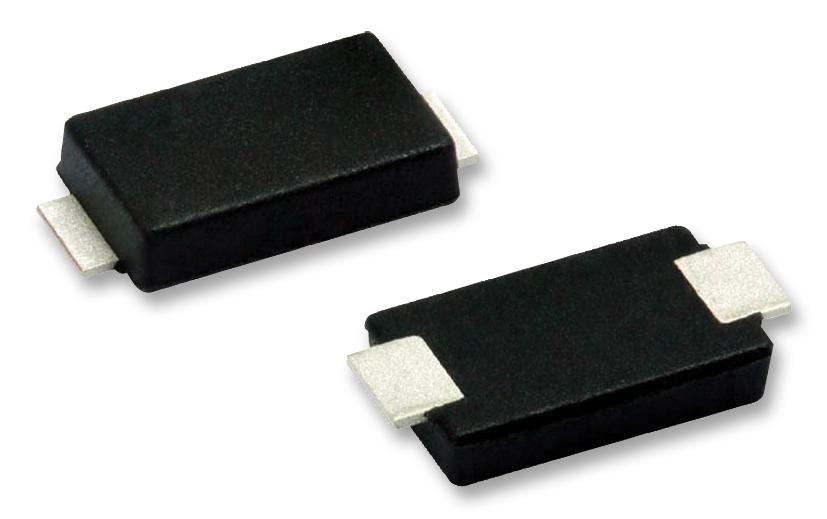

Vishay VSS8D2M12M3H High-Current Schottky Rectifier
The VSS8D2M12 series are high-performance surface-mount Schottky barrier rectifiers designed for automotive, industrial, and power supply applications. These low-profile, halogen-free devices feature high current capacity of 50A, maximum repetitive peak reverse voltage of 120V, and low forward voltage drop of approximately 0.59V at 2A. Suitable for high-frequency inverters, freewheeling, and polarity protection, they meet UL 94 V-0 flammability standards and are AEC-Q101 qualified for automotive reliability and durability. Compact, thermally efficient, and compatible with standard PCB mounting procedures, they offer robust electrical characteristics and thermal stability.
Vishay VSS8D2M12M3H High-Current Schottky Rectifier Specifications:
- Maximum repetitive peak reverse voltage: 120V
- Maximum average forward current: 50A
- Peak forward surge current: 50A
- Maximum forward voltage at 2A: 0.59V
- Forward voltage at 1A: 0.51V
- Reverse current at 25°C: 0.25mA
- Reverse current at 125°C: 1mA
- Junction capacitance: 220pF at 4.0V, 1MHz
- Operating junction temperature: -40°C to +175°C
- Storage temperature: -65°C to +175°C
- Thermal resistance junction-to-ambient: 150°C/W
- Case: SlimSMAW (DO-221AD)
- Material meets UL 94 V-0 flammability
- RoHS compliant, halogen-free, AEC-Q101 qualified
- Solderable leads, matte tin plated
- Mounting aligned with standard PCB practices
Buy the Buy Vishay VSS8D2M12 Part Number VSS8D2M12M3H Online
Secure the Vishay VSS8D2M12 Schottky rectifier online today and enhance your circuit's efficiency with a high-current, low forward voltage device. Ideal for automotive, industrial, and power conversion applications, it provides robust electrical performance, thermal stability, and compliance with strict industry standards. Simplify your procurement process by purchasing now and enjoy fast delivery, reliable specifications, and proven Vishay quality that ensures durability and long-term operation in demanding environments. Elevate your electronics with this dependable rectifier online today.
Buy Vishay VSS8D2M12 now and experience unmatched reliability and high-current performance in your automotive and industrial projects.
Frequently Asked Questions
Where can I buy Vishay VSS8D2M12M3H?
You can click on the BUY or RFQ button to purchase VSS8D2M12M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSS8D2M12M3H?
You can download the VSS8D2M12M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VSS8D2M12M3H?
Vishay
