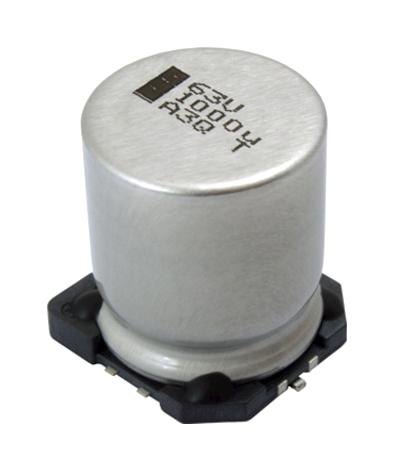

Vishay MAL219299603E3 High Voltage Aluminum Capacitors
High-voltage aluminum electrolytic capacitors designed for industrial, automotive, and telecom applications. These SMD capacitors feature a polarization design with non-solid electrolyte, providing extended useful life of up to 2500 hours at 125°C. They are RoHS-compliant, reflow solderable, vibration-proof, and qualified for automotive use under AEC-Q200 standards. Suitable for smoothing, filtering, and buffering in high-temperature environments, these capacitors come in various case sizes, voltage ratings, and capacitance values, ensuring reliable performance in demanding applications.
Vishay MAL219299603E3 High Voltage Aluminum Capacitors Specifications:
- Nominal case sizes: 10x10x10 mm to 18x18x21 mm
- Capacitance range: 2.2 uF to 33 pF
- Rated voltage: 400 V
- Tolerance: +20%
- Temperature range: -40°C to +125°C
- Endurance: 1000 to 2500 hours at 125°C
- Useful life at 125°C: 1000 to 2500 hours
- Shelf life: 1000 hours at 0 V, 105°C
- Vibration proof, reflow solderable, RoHS compliant
- Climatic category: IEC 60068 40/105/56
- Leakage current: <0.015×Ca×Up + 30 pA
- Ripple current: Max. ripple current at 125°C and 100 Hz varies with capacitance
- ESL: Typ. 16-18 nH depending on size
- Max. temperature load during reflow: 260°C peak, 300s maximum
- Qualified for automotive applications (AEC-Q200)
Buy the Vishay 192 CTX – Reliable High Voltage Aluminum Electrolytic Capacitors for Industrial Applications
Discover the Vishay 192 CTX series of high-voltage electrolytic capacitors, engineered for tough industrial, automotive, and telecom applications. These SMD capacitors feature a polarization design with non-solid electrolyte, ensuring up to 2500 hours of reliable operation at 125°C. They are RoHS-compliant, suitable for high-temperature reflow soldering, vibration-proof, and qualified for automotive use under strict standards. Available in a variety of sizes, voltages, and capacitances, these capacitors deliver consistent performance in filtering, smoothing, and buffering applications. Buy online now to enhance the durability of your electronic systems.
Buy Vishay 192 CTX high-voltage electrolytic capacitors now and experience unmatched reliability and performance in demanding industrial and automotive environments.
Frequently Asked Questions
Where can I buy Vishay MAL219299603E3?
You can click on the BUY or RFQ button to purchase MAL219299603E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL219299603E3?
You can download the MAL219299603E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL219299603E3?
Vishay
