Vishay VSS8D5M6HM3H Schottky Rectifier
The VSS8D5M6HM3H is a high-performance surface-mount TMBS® (Trench MOS Barrier Schottky) rectifier designed for high-frequency inverter, freewheeling, DC/DC converter, and polarity protection applications across commercial, industrial, and automotive sectors. It features a slim profile in a SlimSMAW (DO-221AD) package, rated for 60A, with low forward voltage and robust thermal characteristics. The device has a maximum repetitive peak reverse voltage of 60V, a typical forward voltage of 0.52V at 5A and 125°C, and is AEC-Q101 qualified, RoHS compliant, and halogen-free, making it suitable for automotive use and harsh environments.
Vishay VSS8D5M6HM3H Schottky Rectifier Specifications:
- Package: SlimSMAW (DO-221AD)
- Maximum Repetitive Peak Reverse Voltage: 60 V
- Average Forward Rectified Current: 60 A
- Peak Forward Surge Current: 60 A
- Operating Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Forward Voltage: 0.52V at 5A, 125°C
- Reverse Current: 2 mA at 60V (25°C), 7.0 mA at 125°C
- Thermal Resistance Junction-to-Ambient: 12 to 15°C/W
- Mechanical Mounting: Solderable leads with matte tin plating
- Flammability Rating: UL 94 V-0
- Compliance: Halogen-free, RoHS, AEC-Q101 qualified
- Case Dimensions: Refer to datasheet outline; typical length 0.228 inches, width 0.091 inches
- Operating temperature: -40°C to +175°C
- Material: Molding compound with UL 94 V-0 rating

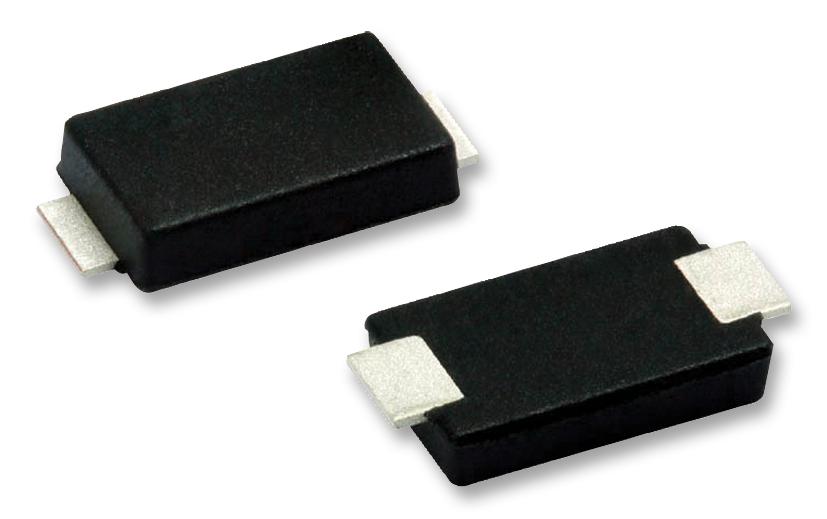

Buy the Buy Vishay VSS8D5M6HM3H Surface-Mount Schottky Rectifier Part Number VSS8D5M6HM3H Online
Purchase the Vishay VSS8D5M6HM3H Schottky rectifier online today and enjoy superior performance in high-frequency inverters, power supply circuits, and automotive electronics. This AEC-Q101 qualified device offers low forward voltage, high surge current capability, and excellent thermal management, ensuring durability and efficiency under demanding conditions. The compact SlimSMAW (DO-221AD) package simplifies mounting on PCBs, making it ideal for industrial, commercial, and automotive applications. Order now for fast delivery and reliable power performance.
Buy Vishay VSS8D5M6HM3H rectifier now and experience unmatched reliability and high efficiency in automotive and industrial power systems.
Frequently Asked Questions
Where can I buy Vishay VSS8D5M6HM3H?
You can click on the BUY or RFQ button to purchase VSS8D5M6HM3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSS8D5M6HM3H?
You can download the VSS8D5M6HM3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VSS8D5M6HM3H?
Vishay
