Vishay VX40M100CHM3P High Voltage Schottky Rectifier
The VX40M100C is a dual high-voltage TMBS® (Trench MOS Barrier Schottky) rectifier designed for high-efficiency power conversion in industrial, automotive, and power supply applications. Featuring Ultra Low Forward Voltage Drop of 0.41V at 5A, it offers low power losses and high reliability. Encased in a TO-220AB package with matte tin-plated leads, it supports operating junction temperatures from -40°C to +175°C and can withstand peak surge currents up to 250A. Suitable for use in high-frequency DC/DC converters, switching power supplies, and reverse battery protection circuits, its RoHS compliance ensures eco-friendly manufacturing.
Vishay VX40M100CHM3P High Voltage Schottky Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 100 V
- Maximum Average Forward Rectified Current: 40 A
- Peak Forward Surge Current: 250 A
- Forward Voltage (at 20A): 0.61 V at 125°C, 0.41 V at 5A, 0.71 V at 20A
- Reverse Current (at 100V): 6 mA at 125°C, 20 mA at 25°C
- Operating Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -40°C to +175°C
- Thermal Resistance Junction-to-Ambient: 1 °C/W
- Case: TO-220AB, RoHS-compliant, halogen-free
- Lead Material: Matte tin-plated leads, solderable
- Mounting Torque: 10 in-lbs maximum
- Material meets UL 94 V-0 flammability rating
- Maximum Soldering Temperature: 275°C for 10 seconds

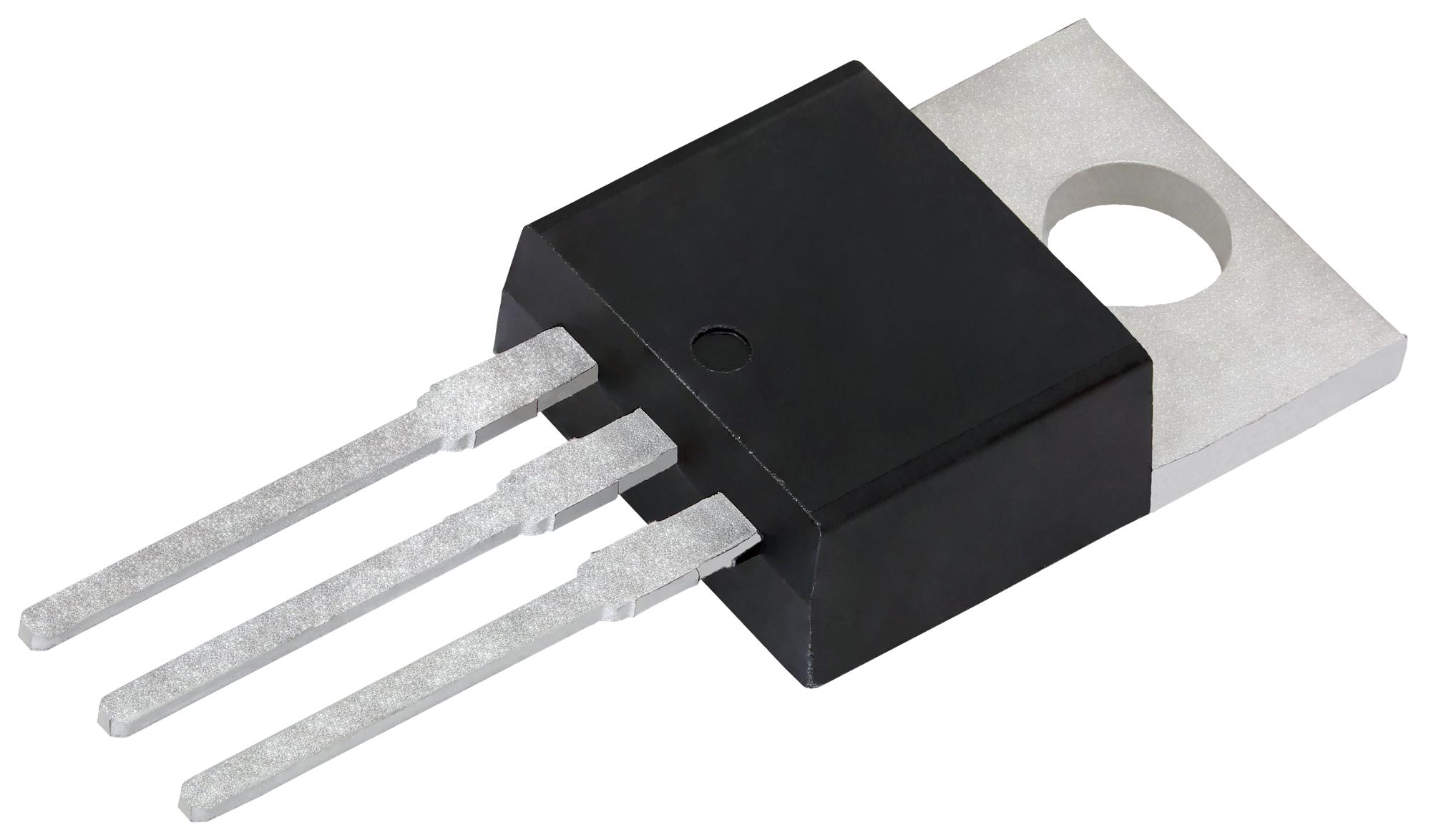

Buy the Buy Vishay VX40M100C Part Number VX40M100C Online
Order the Vishay VX40M100C high voltage dual Schottky rectifier online today and enhance your power supply designs with this efficient, high current, low forward voltage component. Suitable for industrial, automotive, and high-frequency switching applications, it delivers reliable performance at junction temperatures up to 175°C. Encased in a rugged TO-220AB package, its RoHS compliance ensures environmentally friendly manufacturing and easy integration into your circuits. Secure your supply chain with this top-quality, RoHS-compliant rectifier for optimal switching efficiency and power management.
Get Vishay VX40M100C today—built for high efficiency and high surge current capacity in power electronic applications.
Frequently Asked Questions
Where can I buy Vishay VX40M100CHM3P?
You can click on the BUY or RFQ button to purchase VX40M100CHM3P from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VX40M100CHM3P?
You can download the VX40M100CHM3P datasheet or visit the Vishay website for support.
Who is the manufacturer of VX40M100CHM3P?
Vishay
