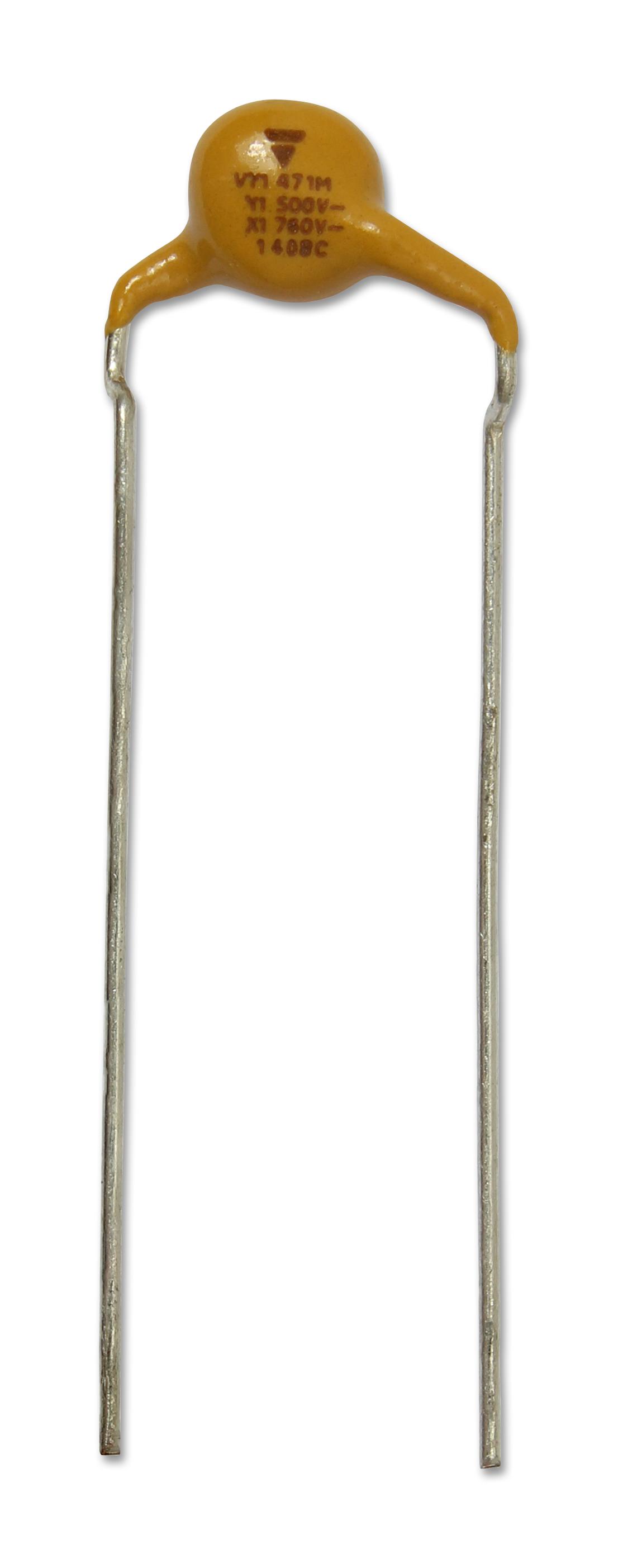

Vishay VY1102M31Y5UC63V0 Ceramic Capacitor
The VY1 series offers reliable ceramic disc capacitors with high voltage ratings suitable for across-the-line, line-by-pass, and antenna coupling applications. These Class Y1 capacitors feature a ceramic dielectric of Y5U type, with voltage ratings of 500 Vac and 760 Vac, and capacitance ranges from 470 pF to 4700 pF. Encapsulated in flame-retardant epoxy resin, they comply with safety standards IEC 60384-14, UL 60384-14, and others. Designed for high reliability, these compact capacitors withstand voltage pulses up to 10 kV, operate between -40°C and +125°C, and meet environmental and safety certifications. Their rugged construction includes copper-plated ceramic discs with straight or kinked leads and various lead spacing options, ensuring durability and versatile mounting in industrial and electronic applications.
Vishay VY1102M31Y5UC63V0 Ceramic Capacitor Specifications:
- Ceramic dielectric: Y5U
- Voltage ratings: 500 Vac, 760 Vac
- Capacitance range: 470 pF to 4700 pF
- Maximum capacitance: 4700 pF
- Operating temperature: -40°C to +125°C
- Climatic category: 40/125/21
- Insulation resistance: 210000 MΩ
- Capacitance tolerance: +20%
- Dissipation factor: Max. 2.5% at 1 kHz
- Coating: UL 94 V-0 flame retardant epoxy resin, halogen-free
- Construction: Copper-plated ceramic disc with tinned copper steel leads
- Lead spacing options: 10.0 mm or 12.5 mm
- Test voltage: 4000 Vac (50 Hz, 2s) for component
- Certifications: IEC, UL, DIN, CSA, CQC
- Dimensions: Diameter approximately 0.6 mm lead, length varies with configuration
Buy the Vishay VY1102M31Y5UC63V0 – Reliable Ceramic Capacitor for Industrial Applications
Purchase the Vishay VY1102M31Y5UC63V0 ceramic capacitor online today and benefit from high voltage tolerance, flame-retardant epoxy coating, and robust construction suitable for a variety of industrial, electronic, and safety-critical applications. Designed to withstand voltage pulses up to 10 kV and operate across a wide temperature range, these capacitors ensure reliability in demanding environments. Easy to mount with available lead spacing options, they are ideal for across-the-line, line-by-pass, and antenna coupling. Buy now for high-quality, certified, and durable electronic components.
Get Vishay VY1102M31Y5UC63V0 today—built for high voltage reliability and long-lasting performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay VY1102M31Y5UC63V0?
You can click on the BUY or RFQ button to purchase VY1102M31Y5UC63V0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VY1102M31Y5UC63V0?
You can download the VY1102M31Y5UC63V0 datasheet or visit the Vishay website for support.
Who is the manufacturer of VY1102M31Y5UC63V0?
Vishay
