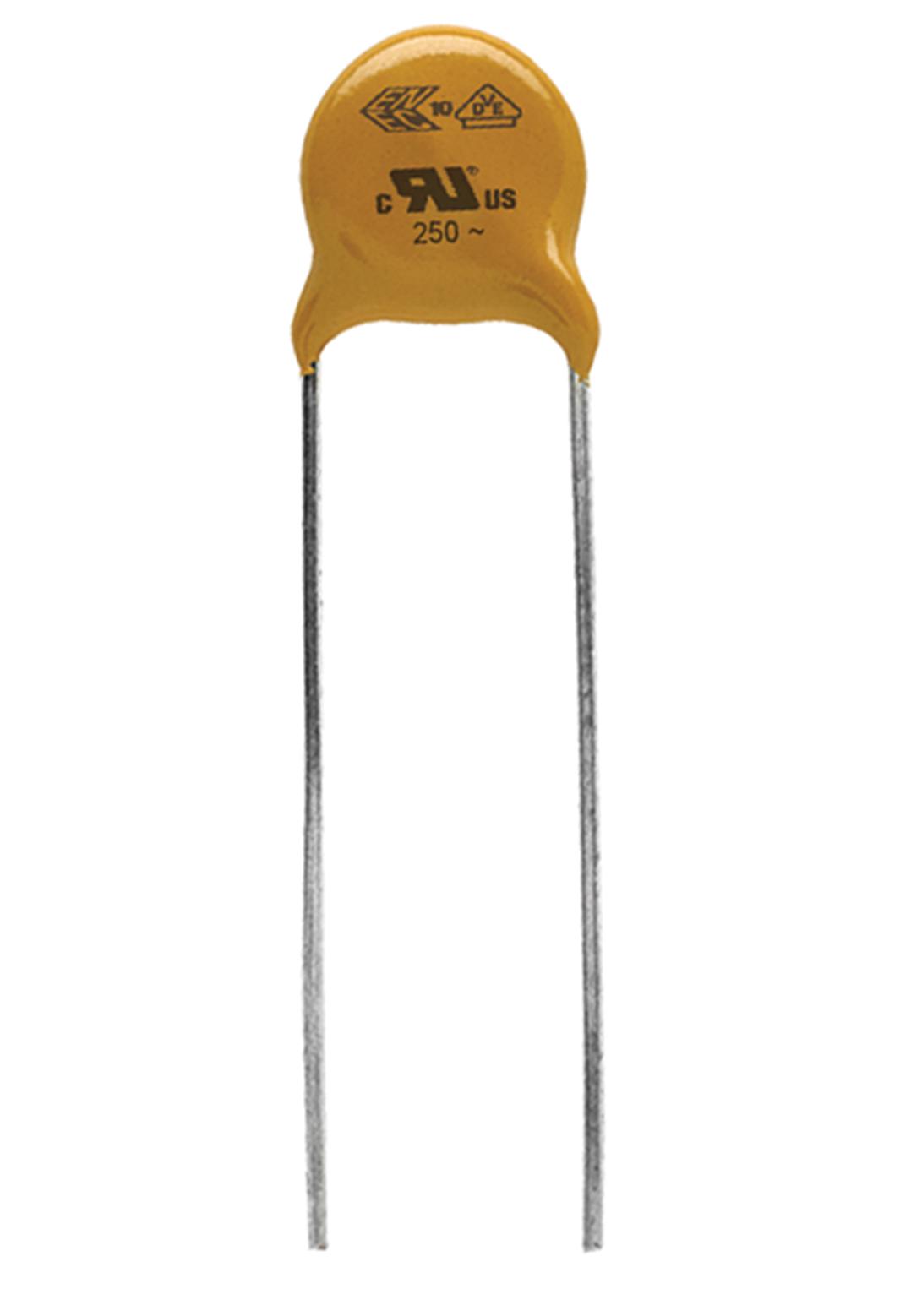

Vishay VY1470K31Y5SQ63V0 Ceramic Disc Capacitor
This high-quality ceramic disc capacitor from Vishay series provides reliable performance for across-the-line applications, line bypass, and antenna coupling. The capacitor features a ceramic dielectric, epoxy resin coating, and a flame-retardant UL 94 V-0 coating, ensuring safety and durability. Suitable for use in high-voltage environments up to 760 Vac, it supports a wide operating temperature range of -40°C to +125°C. The product is available in various capacitance values from 10 pF to 4700 pF, with lead spacings of 10.0 mm or 12.5 mm, and comes in bulk, tape, reel, or ammopack packaging. Its construction includes silver-plated ceramic, tinned copper leads, and reinforced insulation, complying with international safety standards.
Vishay VY1470K31Y5SQ63V0 Ceramic Disc Capacitor Specifications:
- Capacitance Range: 10 pF to 4700 pF
- Rated Voltage: 760 Vac (X1), 500 Vac (Y1)
- Temperature Range: -40°C to +125°C
- Dielectric: Ceramic Class 1 (U2J, Y5S, YSU, Y5V)
- Coating: Epoxy resin, UL 94 V-0 flame retardant, halogen-free option
- Insulation Resistance: 210000 MΩ
- Test Voltage: 4000 Vac, 50 Hz, 2s
- Body Diameter: 8.0 mm or 16.0 mm
- Lead Spacing: 10.0 mm or 12.5 mm
- Lead Material: Tinned copper clad steel, 0.6 mm diameter
- Climatic Category: 40/125/21
- Compliance: IEC 60384-14, UL 60384-14, DIN EN 60384-14, CSA E60384-1:03
- Packaging: Bulk, tape and reel, ammopack
Buy the Buy Vishay VY1 Series Capacitor Part Number VY1470K31Y5SQ63V0 Online
Order the Vishay VY1470K31Y5SQ63V0 ceramic disc capacitor online today for reliable high-voltage performance. Designed for across-the-line, line bypass, and antenna coupling applications, this capacitor features ceramic dielectric with epoxy resin coating for safety and durability. It supports voltages up to 760 Vac, with a temperature range from -40°C to +125°C. The product is available in various capacitance values from 10 pF to 4700 pF, with lead spacings of 10.0 mm or 12.5 mm. Purchase now for prompt delivery and long-term operational stability.
Get Vishay VY1470K31Y5SQ63V0 today—built for high-voltage reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay VY1470K31Y5SQ63V0?
You can click on the BUY or RFQ button to purchase VY1470K31Y5SQ63V0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VY1470K31Y5SQ63V0?
You can download the VY1470K31Y5SQ63V0 datasheet or visit the Vishay website for support.
Who is the manufacturer of VY1470K31Y5SQ63V0?
Vishay
