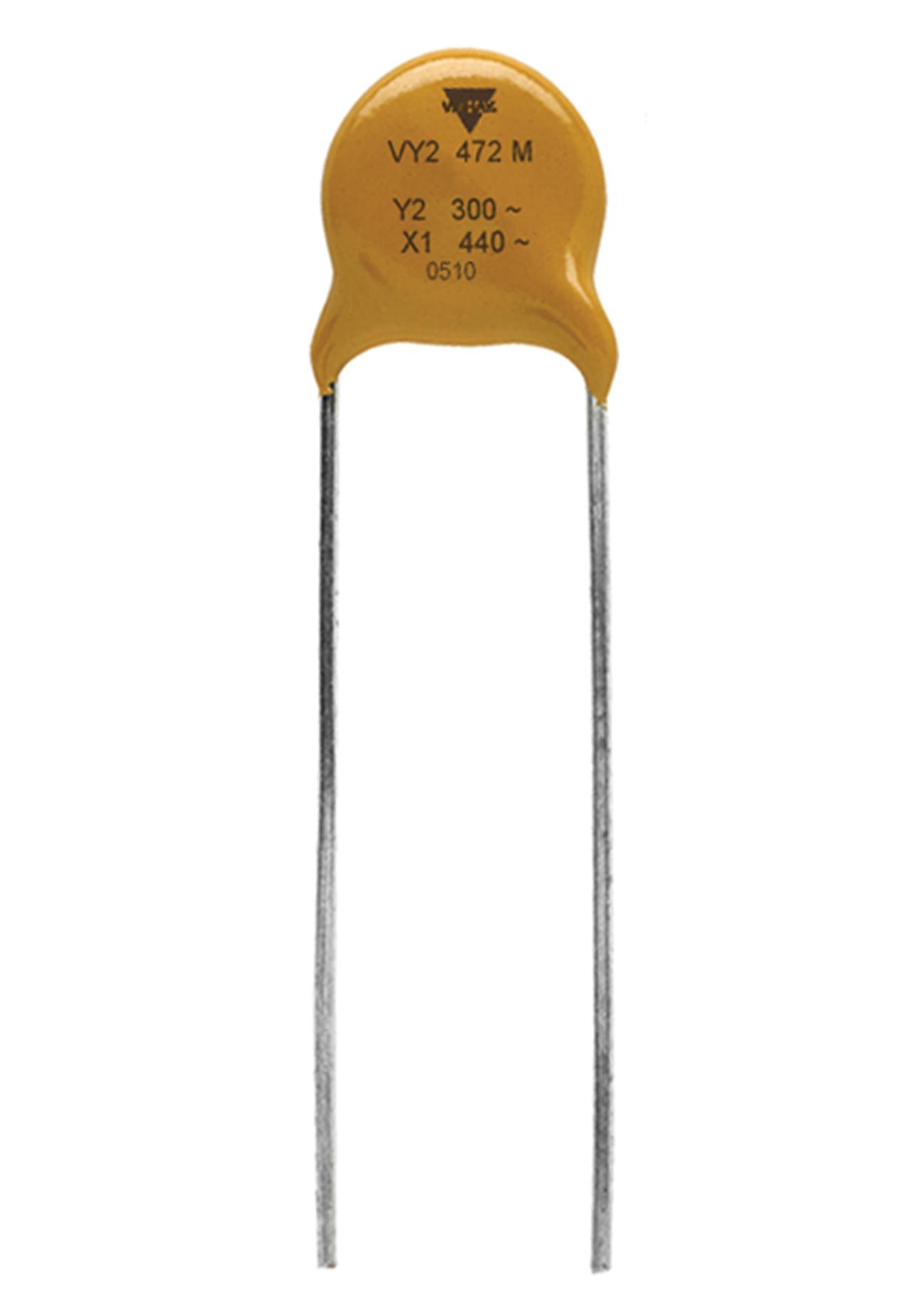

Vishay VY2101K29Y5SS63V0 Ceramic Safety Capacitor
Vishay BCcomponents VY2 Series ceramic disc safety capacitors comply with IEC 60384-14 standards and are designed for across-the-line and line by-pass applications. These high-reliability, RoHS-compliant capacitors feature ceramic dielectric N750 Y5S, YSU, YSV resin, and silver-plated ceramic discs with tin-plated copper-clad steel leads. Available with multiple lead spacings (5.0, 7.5, 10.0, and 12.5 mm), they withstand voltages up to 440 Vac for X1 and 300 Vac for Y2 classifications. They are encapsulated in flame retardant epoxy and tested for high voltage, temperature range of -40°C to +125°C, and have low dissipation factors suitable for safety and interference suppression in electronic equipment.
Vishay VY2101K29Y5SS63V0 Ceramic Safety Capacitor Specifications:
- Ceramic dielectric: N750 Y5S, YSU, YSV
- Voltage (Vac): 440 Vac for X1, 300 Vac for Y2
- Capacitance Range: 10 pF to 10,000 pF
- Maximum Capacitance: 47,000 pF
- Temperature Range: -40°C to +125°C
- Dielectric Rating: Class 1 (U2J), Class 2 (Y5S, Y5U, Y5V)
- Test Voltage: 2600 Vac (2600 Vac for LS 7.5 mm & above), 2200 Vac (LS 5.0 mm)
- Insulation Resistance: 10,000 MΩ
- Dissipation Factor: Max. 0.5% (Class 1), Max. 2.5% (Class 2)
- Encapsulation: Flame retardant epoxy in accordance with UL 94 V-0
- Lead Spacing: 5.0 mm, 7.5 mm, 10.0 mm, or 12.5 mm
- Lead Diameter: 0.6 mm
- Dimensions: Max. height 4.0 mm, body diameter varies with size code
- Packaging: Bulk, tape and reel, ammopack
Buy the Buy Vishay BCcomponents VY2 Series Part Number VY2101K29Y5SS63V0 Online
Purchase the Vishay BCcomponents ceramic safety capacitor VY2101K29Y5SS63V0 online today for reliable, high-quality, and RoHS-compliant components perfect for across-the-line and bypass applications. Designed to meet IEC standards and featuring ceramic dielectric with excellent temperature stability, these capacitors offer voltage ratings up to 440 Vac. They are encased in flame-retardant epoxy, with various lead spacings to suit your needs. Ensure your electronic designs maintain safety, durability, and high performance by ordering this trusted component online now.
Buy Vishay BCcomponents VY2101K29Y5SS63V0 now and experience unmatched reliability and high-voltage safety in electronic applications.
Frequently Asked Questions
Where can I buy Vishay VY2101K29Y5SS63V0?
You can click on the BUY or RFQ button to purchase VY2101K29Y5SS63V0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VY2101K29Y5SS63V0?
You can download the VY2101K29Y5SS63V0 datasheet or visit the Vishay website for support.
Who is the manufacturer of VY2101K29Y5SS63V0?
Vishay
