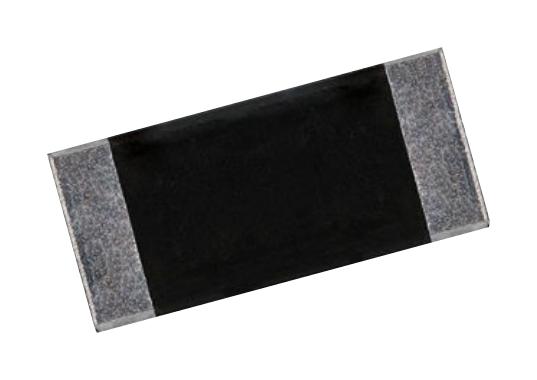

Vishay WFMB2010R4700FEA Power Metal Plate Resistor
The WFMB2010R4700FEA is a high power, surface-mount power metal plate resistor ideal for current sensing, pulse applications, switching power supplies, and battery management. Featuring a low resistance range from 0.033 to 0.5 ohms, it boasts a low temperature coefficient of 50 ppm/°C and excellent frequency response up to 50 MHz. Made from solid metal manganese-copper and nickel-chromium alloys, it ensures low thermal EMF (< 3 μV/°C). Its compact 2010 size with a 2.0 W power rating makes it suitable for compact high-power circuits, with reliable performance and RoHS compliance.
Vishay WFMB2010R4700FEA Power Metal Plate Resistor Specifications:
- Size: 2010 (inch: 0.200 x 0.100, mm: 5.08 x 2.54)
- Power Rating: 2.0 W at 110°C
- Resistance Range: 0.033 to 0.5 ohms
- Resistance Tolerance: ±5%
- Temperature Coefficient: +50 ppm/°C
- Maximum Working Voltage: 0.24 V
- Maximum Terminal Temperature: 110°C
- Operating Temperature: -65°C to +170°C
- Material: Solid metal manganese-copper and nickel-chromium alloy
- Low Thermal EMF: < 3 μV/°C
- Frequency Response: Up to 50 MHz
- RoHS compliant, Epoxy resin coating
- Packaging: Embossed tape, 2000 pieces per reel
Buy the Vishay Series 2010 Power Metal Plate Resistor: WFMB2010R4700FEA
Purchase the Vishay Series 2010 Power Metal Plate Resistor WFMB2010R4700FEA online and enhance your electronic projects with high power, low resistance, and excellent frequency response. Its compact 2010 package ensures easy integration into space-constrained designs, making it ideal for current sensing and pulse applications in switching power supplies, motor controls, and battery management systems. With RoHS compliance, low thermal EMF, and a robust construction, this resistor provides exceptional performance and reliability in demanding industrial environments. Buy now for quality and durability.
Order your Vishay Series 2010 Power Metal Plate Resistor WFMB2010R4700FEA today and equip your circuits with reliable high-power sensing components.
Frequently Asked Questions
Where can I buy Vishay WFMB2010R4700FEA?
You can click on the BUY or RFQ button to purchase WFMB2010R4700FEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part WFMB2010R4700FEA?
You can download the WFMB2010R4700FEA datasheet or visit the Vishay website for support.
Who is the manufacturer of WFMB2010R4700FEA?
Vishay
