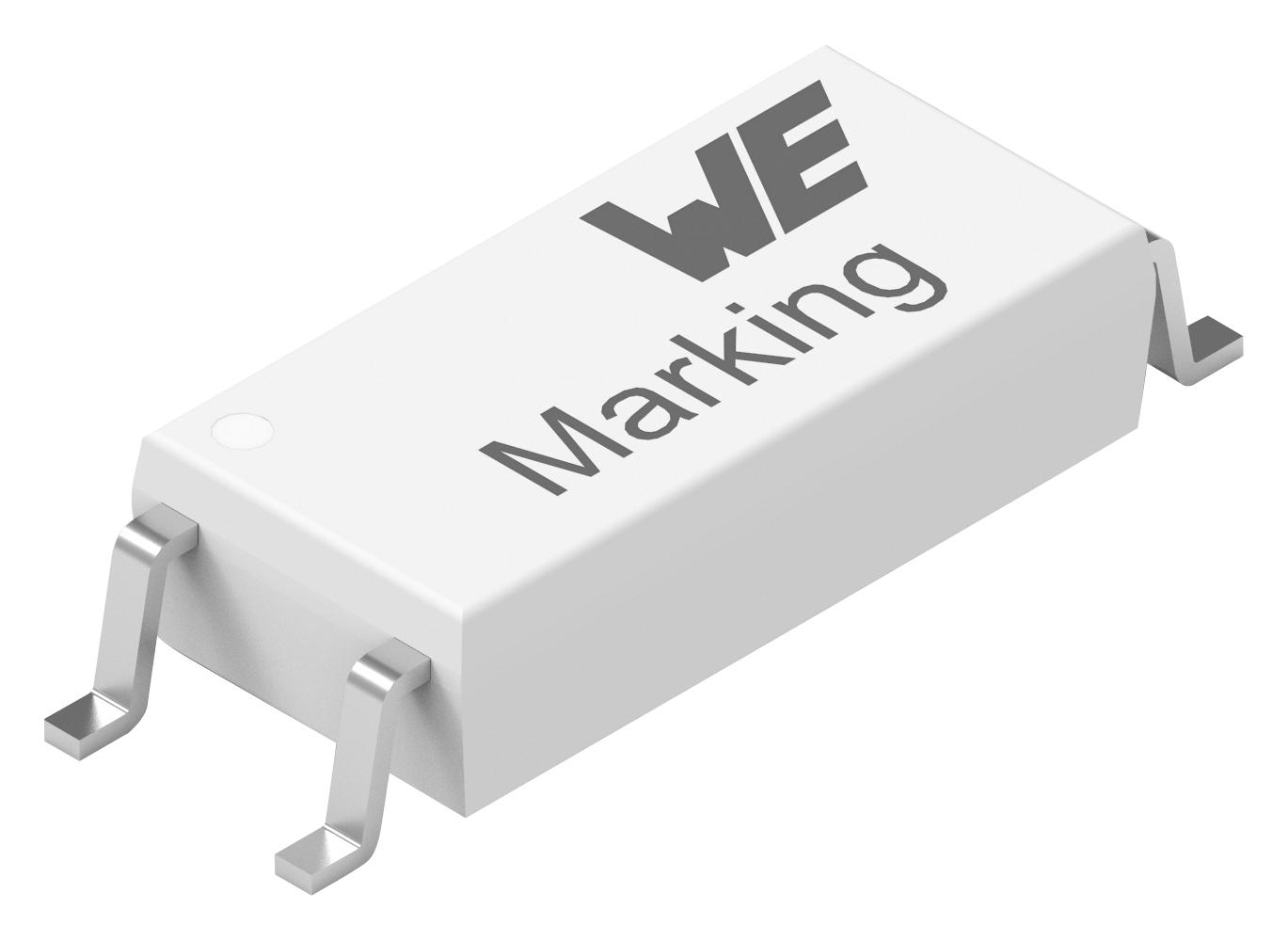

WURTH ELEKTRONIK 140108146000 Optocoupler Device
This optocoupler features a phototransistor output with a white plastic LSOPA package, certified for industrial use with RoHS, REACH, and UL approvals. It operates in a temperature range of -65°C to +110°C, suitable for high-reliability applications such as medical, aerospace, and automation systems. The device is designed for signal isolation, providing a collector-emitter voltage up to 80V, and a transfer ratio (CTR) of 130-260%. It supports efficient soldering, robust operation, and long shelf life, ensuring dependable performance in demanding environments.
WURTH ELEKTRONIK 140108146000 Optocoupler Device Specifications:
- Package Type: LSOPA
- Package Color: White
- Operation Temperature: -65°C to +110°C
- Storage Temperature: -55°C to +125°C
- Collector-Emitter Voltage: 80V
- Emitter-Collector Voltage: 7V
- Collector Current: 50mA
- Input Forward Current: 15mA
- Reverse Voltage: 6V
- Power Dissipation: 150mW
- CTR (Current Transfer Ratio): 130-260%
- Isolation Voltage: 5000V AC for 1 min
- Rise Time: 18µs
- Fall Time: 18µs
- Soldering Profile: Preheat 150-200°C, Max 200°C, Max Ramp-up 3°C/sec, Max Ramp-down 6°C/sec, Peak temperature not to exceed 260°C
- Compliance Certifications: RoHS, REACH, UL 60747-5-5
Buy the Wurth Electronics 140108146000 – Reliable Optocoupler for Industrial Applications
Order the Wurth Electronics optocoupler today to ensure stable signal isolation in your industrial, aerospace, or medical electronic systems. This high-quality device offers robust performance across a wide temperature range and high CTR, making it ideal for safety-critical and high-reliability applications. Easy to solder with recommended profiles, it guarantees long-term durability and consistent operation. Secure your supply by purchasing online now and enhance your electronic projects with dependable optoelectronic components designed for demanding environments.
Buy Wurth Electronics 140108146000 now and experience unmatched reliability and performance in your industrial and automation projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 140108146000?
You can click on the BUY or RFQ button to purchase 140108146000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 140108146000?
You can download the 140108146000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 140108146000?
WURTH ELEKTRONIK
