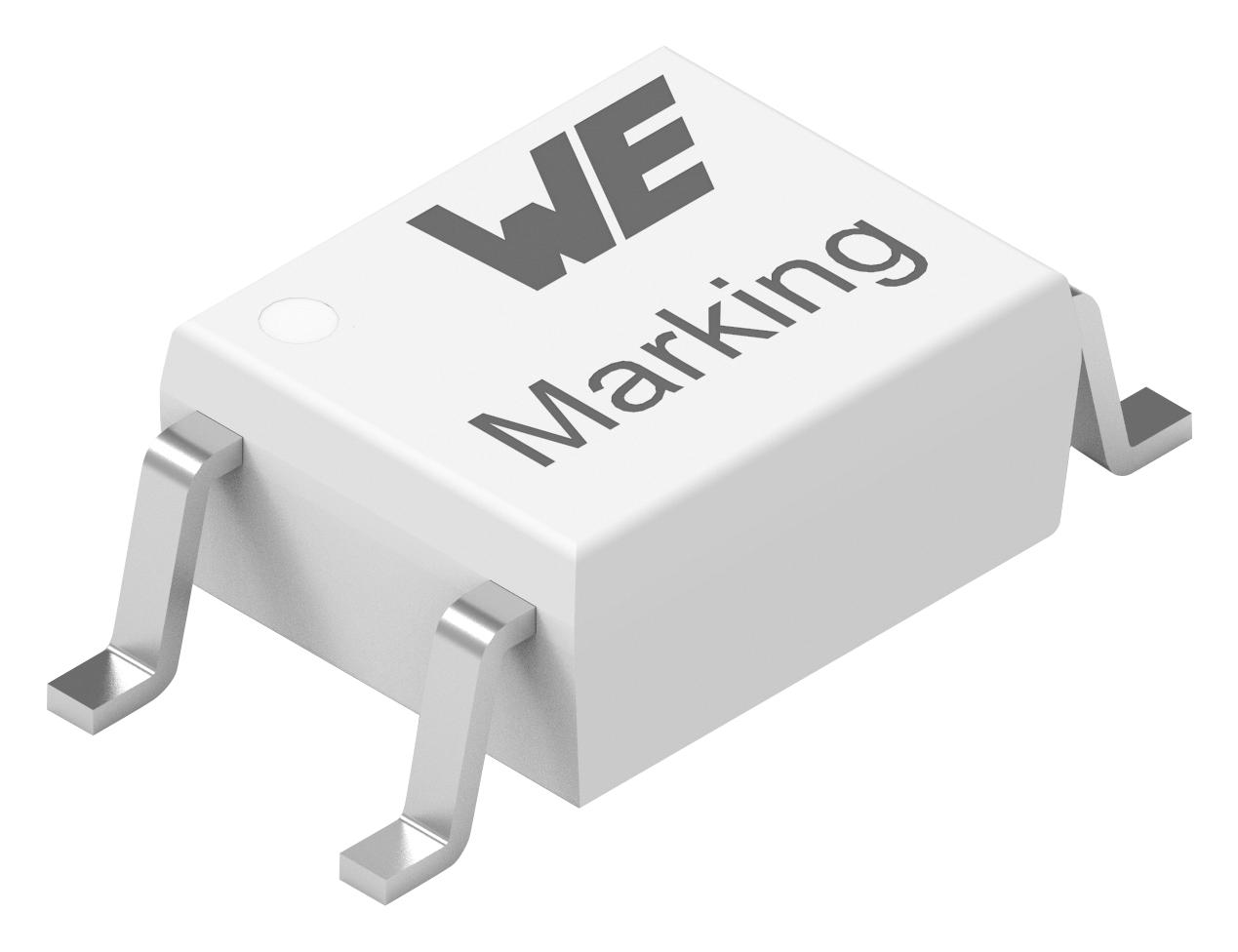

WURTH ELEKTRONIK 140356145000 Optocoupler
This optocoupler features a phototransistor output, designed for reliable signal isolation in electronic circuits. With a package size suitable for high-density mounting, it is RoHS and REACH compliant, halogen-free, and UL approved. Operating across temperatures from -55°C to +110°C, it offers a collector-emitter voltage of 80V and a forward current of 60mA. Ideal for general automation and control applications, it ensures precise signal transfer with low dark current and high CTR, meeting international safety standards.
WURTH ELEKTRONIK 140356145000 Optocoupler Specifications:
- Type: Optocoupler Phototransistor
- Package: SOP 4
- Housing Color: White
- Operating Temperature: -55°C to +110°C
- Collector-Emitter Voltage: 80V
- Forward Current: 60mA
- Peak Forward Current: 1A at 100Hz duty cycle
- Dark Current: 100μA
- Collector Current: 50mA
- Output Power Dissipation: 150mW
- Isolation Voltage: 3750V RMS for 1 minute
- Response Time: 18μs fall, 18μs rise
- Cut-off Frequency: 80kHz
- Storage Conditions: -55°C to +125°C, <40°C and 75% RH recommended storage
- Standards Compliance: RoHS, REACH, IEC 61249-2-21, UL 1577
Buy the Wurth Series Optocoupler: 140356145000
Purchase the Wurth optocoupler featuring a phototransistor output for reliable isolation in control and automation systems. It is RoHS, REACH compliant, halogen-free, UL approved, and capable of operating within a temperature range of -55°C to +110°C. The device supports up to 80V collector-emitter voltage and 60mA forward current, making it suitable for a wide range of industrial applications. With low dark current, high CTR, and standard safety certifications, this optocoupler ensures dependable performance and ease of installation, making it the ideal choice for engineers seeking high-quality optoelectronic components online.
Get Wurth 140356145000 today—built for precision and long-lasting durability in electronic signal isolation.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 140356145000?
You can click on the BUY or RFQ button to purchase 140356145000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 140356145000?
You can download the 140356145000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 140356145000?
WURTH ELEKTRONIK
