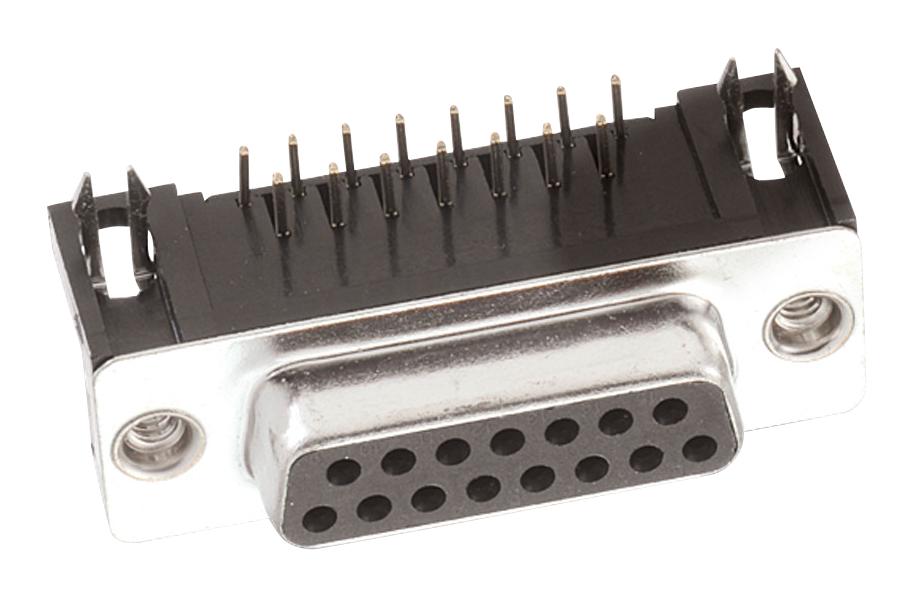

WURTH ELEKTRONIK 618009233821 PCB Connector
The WURTH ELEKTRONIK DSUB 10.30mm Female Angled PCB connector is designed for high-reliability electronic applications. Made with durable materials like copper alloy contacts with selective gold plating, steel shielding with nickel, and an insulator of UL94 V-0 rated PBT, it supports up to 50 mating cycles. Suitable for general electronic equipment, it withstands temperatures from -55°C to +105°C, rated at 3A current and 125VAC voltage, ensuring excellent electrical and mechanical performance in demanding environments.
WURTH ELEKTRONIK 618009233821 PCB Connector Specifications:
- Material: Copper Alloy contact with selective gold plating
- Insulator Material: PBT, UL94 V-0 rated, Black color
- Shielding Material: Steel, Ni-plated
- Rated Current: 3A
- Working Voltage: 125 VAC
- Withstanding Voltage: 1000 V (AC, 1 min)
- Contact Resistance: 30 mΩ max
- Insulation Resistance: 5000 MΩ min
- Operating Temperature: -55°C to +105°C
- Durability: 50 mating cycles
- Dimensions: Length L 30.81 mm, Length Fi 24.99 mm, Length Ly 16.34 mm, Profile Preheat Temperature: Min 100°C, Typical 120°C, Max 130°C
- RoHS and REACh compliant
Buy the WURTH ELEKTRONIK 618009233821 – Reliable PCB Connector for Industrial Applications
Order the WURTH ELEKTRONIK PCB connector today for secure, durable, and reliable electronic connections suitable for various industrial and electronic equipment. Designed with gold-plated contacts and steel shielding, it ensures optimal electrical performance and mechanical stability. Ideal for applications requiring high reliability, the connector supports up to 50 mating cycles and operates within -55°C to +105°C temperature range. Easily integrate this high-quality component into your assemblies and experience seamless performance and confidence in your electronic solutions.
Get WURTH ELEKTRONIK 618009233821 today—crafted for dependable electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 618009233821?
You can click on the BUY or RFQ button to purchase 618009233821 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 618009233821?
You can download the 618009233821 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 618009233821?
WURTH ELEKTRONIK
