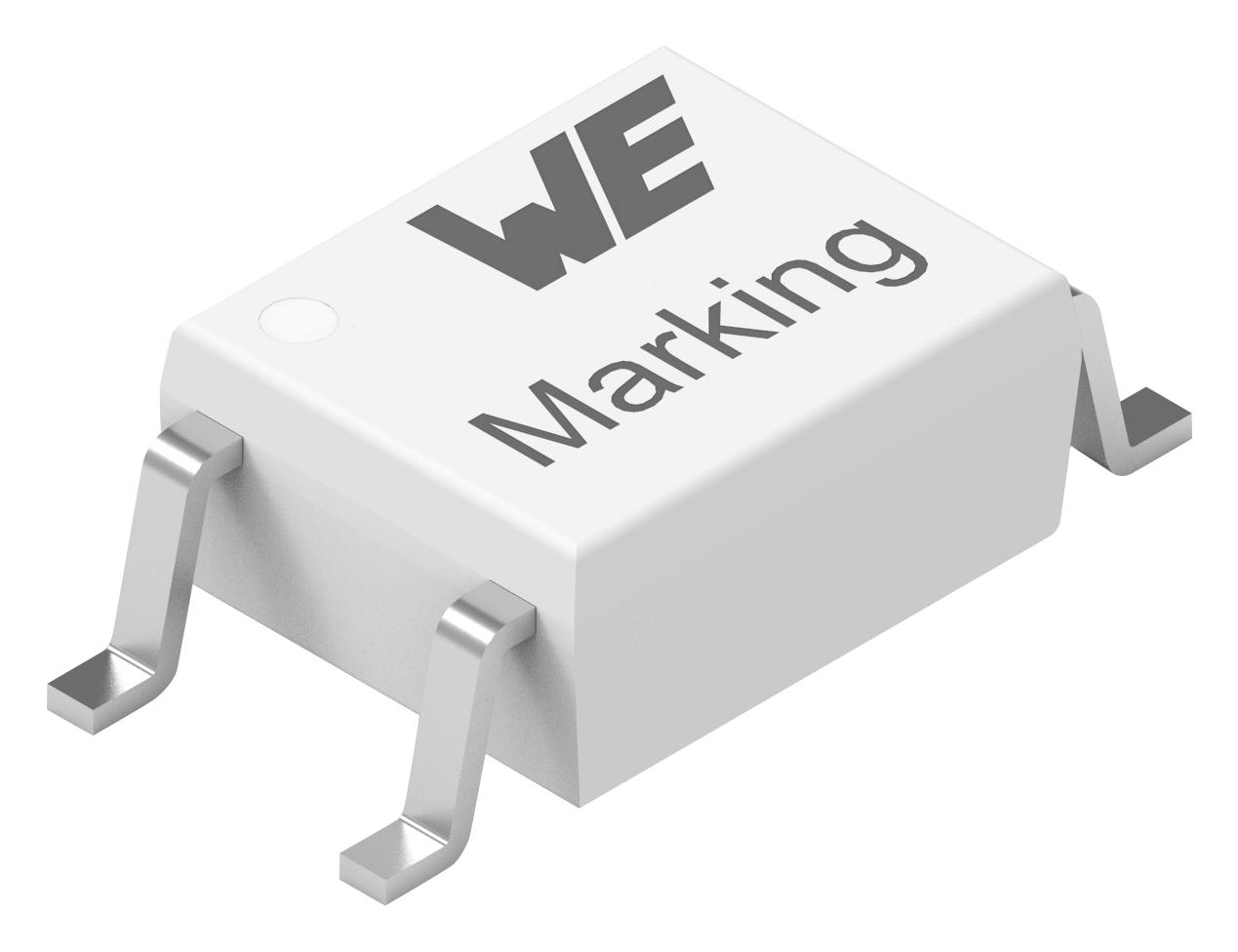

WURTH ELEKTRONIK 140356145200 Optocoupler
This optocoupler features a phototransistor output with a DC input, housed in a white plastic case. It is RoHS, REACH, halogen-free, and approved for UL and VDE standards, designed for reliable signal isolation in electronic systems. Suitable for general applications, its characteristics include a forward current of up to 15 mA, collector-emitter voltage of 80 V, and a CTR of approximately 130 to 260%. The device operates reliably between -55°C and +110°C, with a max power dissipation of 150 mW, making it ideal for use in industrial, automation, and control systems requiring high reliability and isolation.
WURTH ELEKTRONIK 140356145200 Optocoupler Specifications:
- Package: SOP-4
- Housing Color: White
- Input Forward Current: 15 mA
- Peak Forward Current: 100 mA at 100 Hz duty cycle
- Reverse Voltage: 6 V
- Collector Emitter Voltage: 80 V
- Emitter-Collector Voltage: 7 V
- Output Power Dissipation: 150 mW
- CTR: 130 to 260%
- Max Power Dissipation: 200 mW
- Ambient Operating Temperature: -55°C to +110°C
- Storage Temperature: -55°C to +125°C
- Moisture Sensitivity Level: 1
- Certifications: RoHS, REACH, Halogen Free, UL Listed, VDE Approved
- Soldering Profile: Min preheat 150°C, max 200°C, duration 60-120 sec, Ramp-up 3°C/sec, Max peak temperature 260°C
- Storage Conditions: In original moisture-proof packaging, up to 12 months
- Isolation Voltage: 3750 V rms for 1 min
Buy the Wurth Series Optocoupler: 140356145200
Purchase the Wurth Series optocoupler 140356145200 online today to benefit from its proven reliability, high CTR, and compliance with international safety standards. Designed for general electronic equipment, it offers excellent isolation with a maximum collector-emitter voltage of 80 V and a forward current of up to 15 mA. Suitable for industrial automation, control systems, and safety-critical applications, its RoHS, REACH, and UL approvals guarantee environmentally friendly and safe operation. Fast delivery and technical support available for your projects.
Order your Wurth Series Optocoupler 140356145200 today and ensure reliable signal isolation in your industrial or automation projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 140356145200?
You can click on the BUY or RFQ button to purchase 140356145200 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 140356145200?
You can download the 140356145200 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 140356145200?
WURTH ELEKTRONIK
