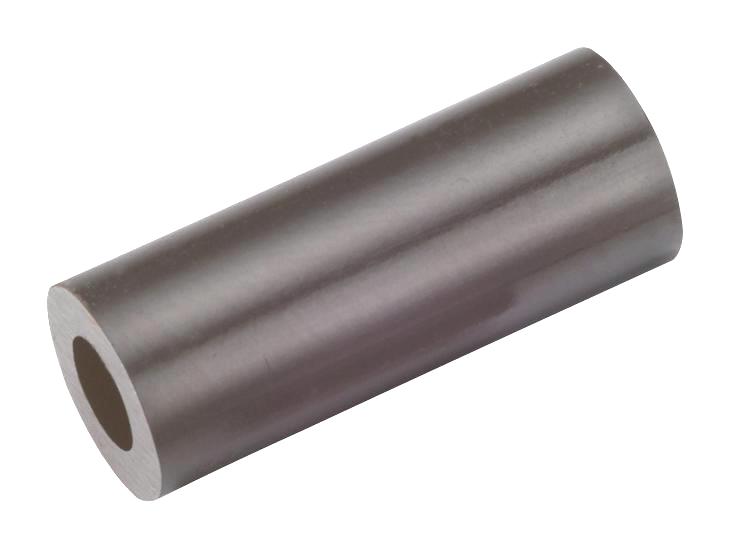

WURTH ELEKTRONIK 960060042 Round Plastic Spacers
Round Plastic Spacers by Wurth Elektronik are versatile components made from durable polyamide, suitable for electronic assembly and insulation applications. They feature a 6 mm length, 3.2 mm inner diameter, and 6 mm outer diameter, designed to ensure proper spacing and electrical insulation in various electronic devices. Compliant with RoHS, UL94 HB flammability rating, and IEC halogen-free standards, these spacers operate within -30°C to +110°C, and are stored in original packaging. Ideal for PCB mounting, their moisture sensitivity level is 1, ensuring long-term reliability in diverse environments. Their versatile properties make them essential in electronic manufacturing, providing mechanical support, electrical insulation, and environmental protection in high-reliability and general electronic equipment applications.
WURTH ELEKTRONIK 960060042 Round Plastic Spacers Specifications:
- Material: Polyamide
- Color: Black
- Flammability Rating: UL94 HB
- RoHS Compliance: Yes
- REACh Compliance: Yes
- Halogen Free: IEC 61249-2-21, JEDEC JS709B compliant
- Operating Temperature: -30°C to +110°C
- Storage Conditions: < 40°C; < 75% RH
- Moisture Sensitivity Level: 1
- Length: 6 mm
- Inner Diameter: 3.2 mm
- Outer Diameter: 6 mm
- Product Code: 960060042
- Use: General electronic equipment, PCB mounting, insulation, mechanical support
- Packaging: In original packaging, applicable to full packaging units
- Maximum torque: Must be followed to prevent mechanical damage
- Environmental Resistance: UV, moisture, and temperature stability
- Application: Suitable for electronic assembly, insulation, spacing, and environmental protection in diverse ambient conditions
- Additional notes: Store in original packaging, do not expose to direct sunlight, and use within 12 months of shipment to ensure optimal performance.
Buy the Wurth Series Spacers: Round Plastic Spacers 960060042
Order Wurth Elektronik Round Plastic Spacers with part number 960060042 online today. Designed from durable polyamide, these spacers provide reliable insulation, mechanical support, and environmental resistance for electronic assemblies. They feature precise dimensions of 6 mm length, 3.2 mm inner diameter, and 6 mm outer diameter, suitable for PCB mounting and insulation purposes. Compliant with RoHS, UL94 HB, and IEC halogen-free standards, these spacers operate efficiently within -30°C to +110°C. Ideal for high-reliability and general electronic equipment, they ensure optimal performance, environmental resistance, and ease of installation.
Get Wurth Elektronik 960060042 today—built for reliable spacing and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 960060042?
You can click on the BUY or RFQ button to purchase 960060042 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 960060042?
You can download the 960060042 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 960060042?
WURTH ELEKTRONIK
