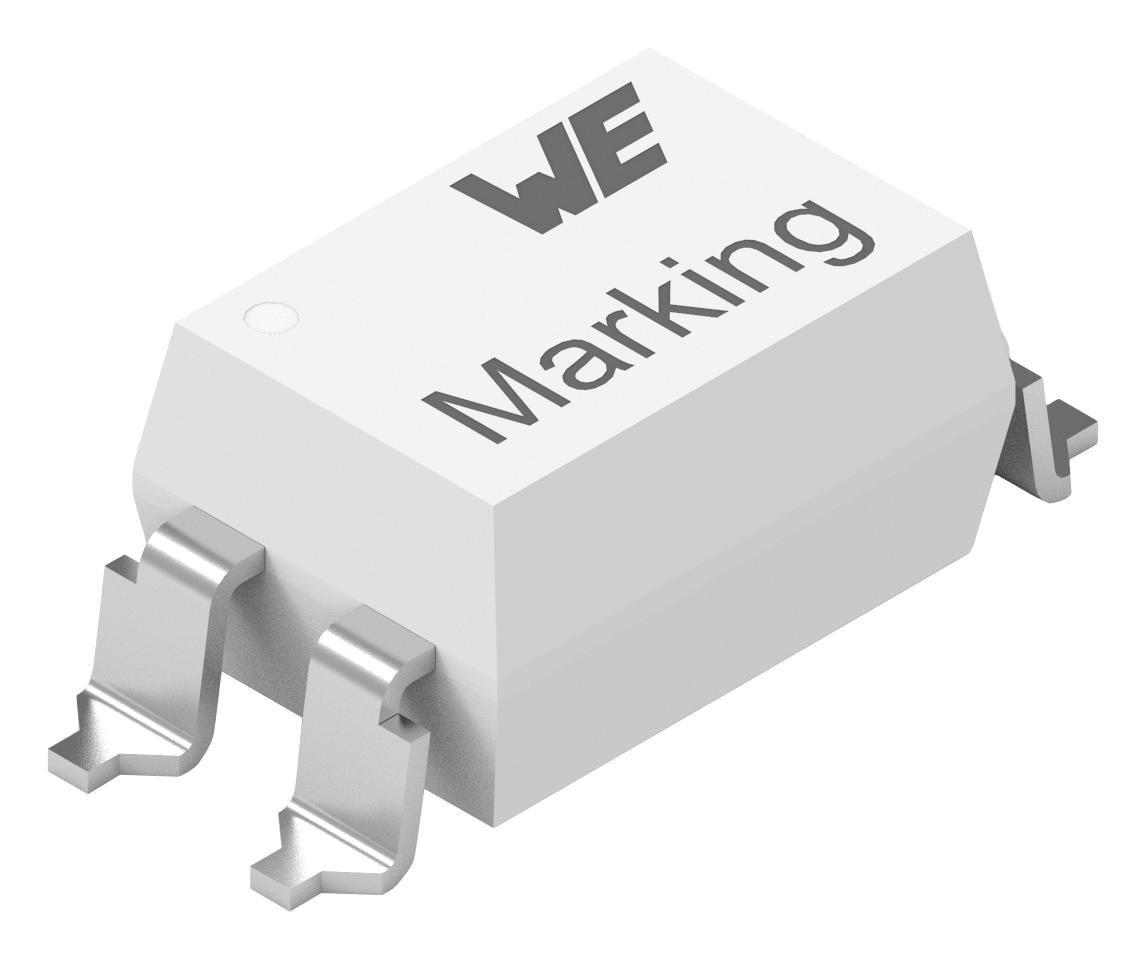

WURTH ELEKTRONIK 140814243000 Optocoupler Phototransistor
The WURTH ELEKTRONIK 140814243000 is an optocoupler incorporating a phototransistor output, designed for general electronic equipment applications. It provides electrical isolation between input and output circuits, enabling the transfer of signals while maintaining safety and preventing ground loops. This component is suitable for a wide range of applications including industrial control systems, power supplies, and data transmission. It operates within a temperature range of -55°C to +110°C and is compliant with RoHS standards, ensuring environmentally responsible usage. The device is packaged in a DIP 4 SL-Type format, facilitating easy integration into various circuit designs.
WURTH ELEKTRONIK 140814243000 Optocoupler Phototransistor Specifications:
- Dimensions: Not specified
- Recommended Land Pattern: Not specified
- Type: Optocoupler Phototransistor
- Package: DIP 4, SL-Type
- Plastic Housing Color: White
- Certification: RoHS Approval Compliant [2011/65/EU&2015/863], REACH Approval Conform [(EC)1907/2006], Halogen Free Conform [JEDEC JS709B], Halogen Free Conform [IEC 61249-2-21]
- VDE Approval: EN 60747-5-5:2011; A1:2015
- UL Approval: E513104 [UL 1577]
- Operating Temperature: -55 up to +110 °C
- Storage Temperature: -55 up to +125 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Product Marking: 814 (Series 814)
- Pin 1: Anode
- Marking Date Code: YYYY-MM-DD
- Forward Voltage (VF): 1.24 - 1.4 V (IF= +/- 10 mA)
- Reverse Current (IREV): 10 µA (VREV= 6 V)
- Input Capacitance (Cin): 10 pF (V = 0 V, f = 1 kHz)
- Collector-Emitter Dark Current (ICEO.Dark): ≤ 100 nA (VCE= 20 V, IF= 0)
- Collector-Emitter Breakdown Voltage (V(BR)CE): 80 V (IC= 100 µA, IF= 0)
- Emitter-Collector Breakdown Voltage (V(BR)EC): 7 V (IE= 100 µA, IF= 0)
- Current Transfer Ratio (CTR): 20 - 300 % (IF= +/- 1 mA, VCE= 5 V)
- CTR Symmetry (CTRSYM): 0.7 - 1.3 (IF= +/- 1 mA, VCE= 5 V)
- Collector-Emitter Saturation Voltage (VCEsat): 0.06 - 0.2 V (IF= +/- 20 mA, IC= 1 mA)
- Rise Time (tr): 3 - 18 µs (VCE= 2 V, IC= 2 mA, R~~L~~= 100 Ω)
- Fall Time (tf): 4 - 18 µs (VCE= 2 V, IC= 2 mA, R~~L~~= 100 Ω)
- Cut-Off Frequency (fc): 80 kHz (VCE= 2 V, IC= 2 mA, RL= 100 Ω)
- Floating Capacitance (CIO): 0.4 pF (V = 0 V, f = 1 MHz)
- Isolation Resistance (RISO): ≥ 1 TΩ (DC = 500 V, 40~60 % R.H.)
- Forward Current (IF max): ±60 mA
- Peak Forward Current (IF Peak): ±1 A (duty/ 100 @ 100 Hz)
- Reverse Voltage (VREV): 6 V
- Input Power Dissipation (PI): 100 mW
- Collector Emitter Voltage (VCE): 80 V
- Emitter Collector Voltage (VEC): 7 V
- Collector Current (ICE.P): 50 mA
- Output Power Dissipation (PO): 150 mW
- Power Dissipation (PDiss): 200 mW
- Isolation Voltage (VISO): 5000 V (RMS) (AC for 1 Minute, RH 40~60 %)
