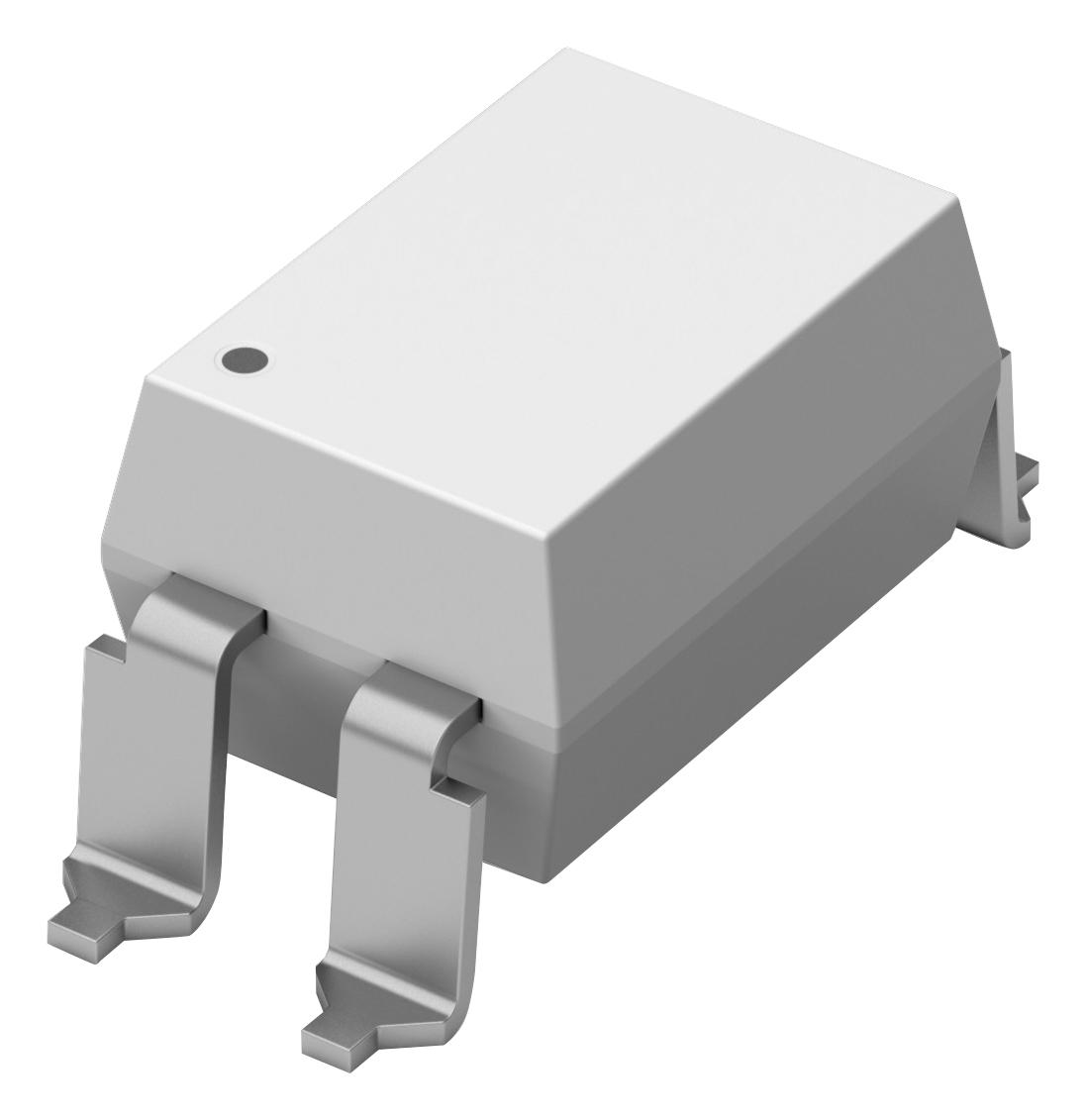

WURTH ELEKTRONIK 140816142200 Optocoupler Phototransistor
The WURTH ELEKTRONIK 140816142200 is an optocoupler incorporating a phototransistor output. This device provides a cost-effective and reliable solution for transferring signals while maintaining electrical isolation. It is suitable for a wide range of applications including industrial control, power supplies, and signal transmission. The component is RoHS and REACH compliant, ensuring environmental responsibility. Its operating temperature range of -55°C to +110°C allows for use in demanding environments. The device is also certified under various standards including UL and VDE, ensuring safety and performance.
WURTH ELEKTRONIK 140816142200 Optocoupler Phototransistor Specifications:
- Type: Optocoupler Phototransistor
- Package: DIP 4, S-Type
- Operating Temperature: -55 up to +110 °C
- Storage Temperature: -55 up to +125 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Forward Voltage: 1.24 - 1.4 V
- Reverse Current: ≤ 10 µA
- Input Capacitance: ≤ 10 pF
- Collector-Emitter Dark Current: ≤ 100 nA
- Collector-Emitter Breakdown Voltage: ≥ 80 V
- Emitter-Collector Breakdown Voltage: ≥ 7 V
- Current Transfer Ratio: 130 - 260 %
- Collector-Emitter Saturation Voltage: ≤ 0.2 V
- Rise Time: ≤ 18 µs
- Fall Time: ≤ 18 µs
- Cut-Off Frequency: ≤ 80 kHz
- Floating Capacitance: ≤ 0.4 pF
- Isolation Resistance: ≥ 1 TΩ
- Isolation Voltage: ≥ 5000 V (RMS)
- Forward Current: ≤ 60 mA
- Peak Forward Current: ≤ 1 A
- Reverse Voltage: ≤ 6 V
- Input Power Dissipation: ≤ 100 mW
- Collector Emitter Voltage: ≤ 80 V
- Emitter Collector Voltage: ≤ 7 V
- Collector Current: ≤ 50 mA
- Output Power Dissipation: ≤ 150 mW
- Power Dissipation: ≤ 200 mW
- Product Marking: 816B (Series 816, Binning B)
- Date Code: YWW
