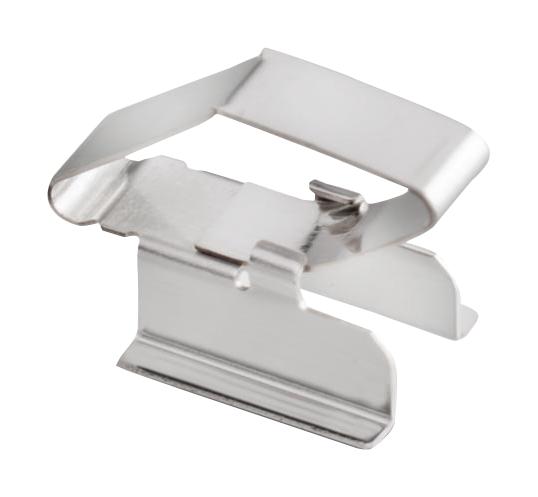

WURTH ELEKTRONIK 331265563040 SMT EMI Contact Finger
The Würth Elektronik 331265563040 SMT EMI contact finger is a precision-engineered component designed to mitigate electromagnetic interference in surface mount technology (SMT) assemblies. Its compact form factor and robust construction make it suitable for a wide range of applications, including consumer electronics, industrial equipment, and telecommunications devices. The finger's nickel-plated copper construction ensures excellent electrical conductivity and resistance to corrosion, contributing to the long-term reliability of the overall circuit. Proper reflow soldering techniques, adhering to the specified profile, are crucial for optimal performance and adhesion. This component is not intended for use in safety-critical applications without thorough evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 331265563040 SMT EMI Contact Finger Specifications:
- Dimensions: 5.6 x 3.6 x 0.6 x 3.05 x 0.7 mm
- Recommended Land Pattern: 0.7 x 3.0 x 0.7 x 3.6 mm
- Material: Copper Beryllium (CuBe), nickel-plated (Ni), tin plated (Sn)
- Recommended Working Height: 3.4 - 2.2 mm
- Operating Temperature: -40 up to +100 °C
- Storage Conditions: < 40 °C; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Peak Package Body Temperature: Tp≤ Tc
- Time within 5°C of actual peak temperature: 20 - 30 seconds
- Tape Width: 16 mm
- Pull-of force: 0.1 N - 1.3 N
Buy the 331265563040 WURTH ELEKTRONIK SMT EMI Contact Finger | myMectronic
Purchase the Würth Elektronik 331265563040 SMT EMI Contact Finger securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 331265563040?
You can click on the BUY or RFQ button to purchase 331265563040 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 331265563040?
You can download the 331265563040 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 331265563040?
WURTH ELEKTRONIK
