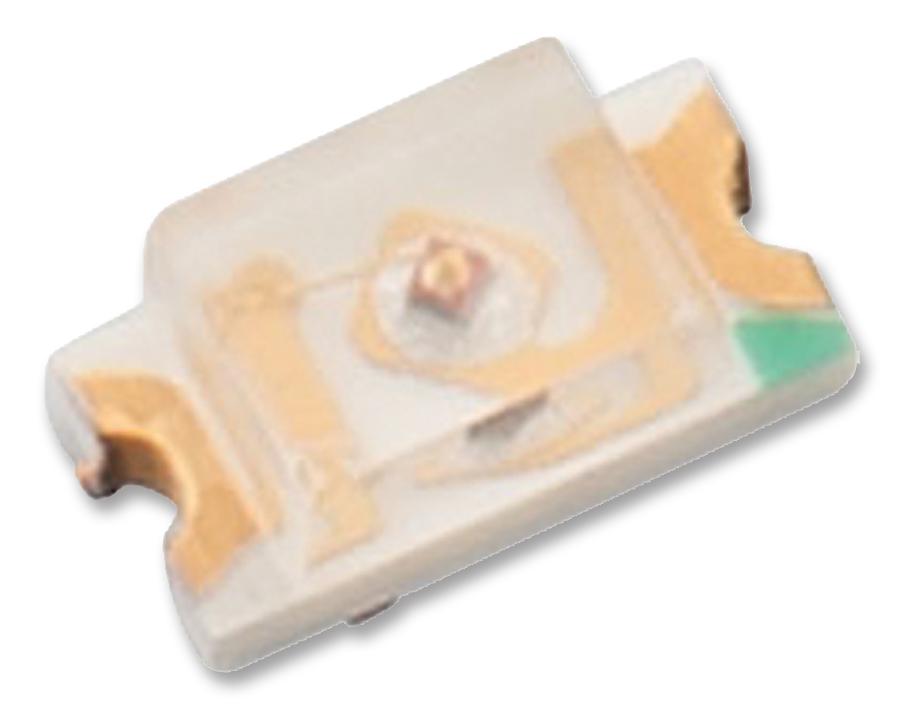

WURTH ELEKTRONIK 150060BS75000 Blue SMD Chip LED
The WURTH ELEKTRONIK 150060BS75000 is a compact, waterclear blue SMD chip LED designed for integration into various electronic devices. It offers a luminous intensity ranging from 90 to 145 mcd, with a peak wavelength of 465nm and a dominant wavelength of 470nm. This LED is suitable for applications such as backlighting, indicator lights, and general illumination where a small footprint and efficient blue light emission are required. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 150060BS75000 Blue SMD Chip LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Blue
- Lens Type: Chip LED
- Power Dissipation: 105 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 1000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 465 nm
- Dominant Wavelength: 470 nm
- Luminous Intensity: 90-145 mcd
- Forward Voltage: 3.2-3.5 V
- Spectral Bandwidth: 25 nm
- Reverse Current: 10 μA
- Viewing Angle: 140°
Buy the 150060BS75000 WURTH ELEKTRONIK Blue SMD Chip LED | myMectronic
Purchase the WURTH ELEKTRONIK 150060BS75000 securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150060BS75000?
You can click on the BUY or RFQ button to purchase 150060BS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150060BS75000?
You can download the 150060BS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150060BS75000?
WURTH ELEKTRONIK
