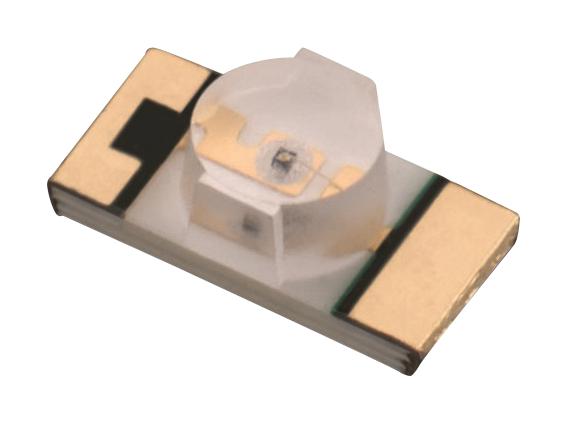

WURTH ELEKTRONIK 156120BS75300 Blue LED
This SMD Mono-color LED features reverse mount, waterclear lens technology suitable for high reliability electronic applications. Designed for efficient illumination in signage, indicator lights, and backlighting, it operates within a temperature range of -40°C to +85°C, ensuring durability in various environmental conditions. With InGaN chip technology emitting a bright blue light at a wavelength of approximately 470 nm and a viewing angle of 140°, it offers a forward voltage of 3.2–3.8 V and a peak wavelength of 465 nm at 20 mA. Ideal for compact design and high performance in modern electronic devices.
WURTH ELEKTRONIK 156120BS75300 Blue LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Blue
- Lens Type: Cylindrical
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitive Level: MSL 3
- Peak Wavelength: 465 nm at 20 mA
- Dominant Wavelength: 470 nm at 20 mA
- Luminous Intensity: 18–50 millicandelas at 20 mA
- Forward Voltage: 3.2–3.8 V at 20 mA
- Spectral Bandwidth: 25 nm at 20 mA
- Viewing Angle: 140° at 20 mA
- Peak Forward Current: 100 mA at 1 kHz duty cycle
- Continuous Forward Current: 25 mA
- Reverse Voltage: 5 V
- ESD Threshold: 400 V (HBM)
Buy the Buy Wirth Elektronik SMD Mono-color Part Number 156120BS75300 Online
Order the Wirth Elektronik blue SMD LED online today to enhance your electronic design with reliable, high-brightness illumination. Perfect for signage, backlighting, and indicator applications, it operates efficiently within a temperature range of -40°C to +85°C, ensuring durability and performance. Its reverse mount design with waterclear lens technology provides clear illumination at a wide viewing angle of 140°. With a peak wavelength of 465 nm, low forward voltage, and high ESD robustness, this LED is ideal for diverse industrial and consumer electronic applications. Purchase now to ensure fast delivery and superior quality in your projects.
Get Wirth Elektronik 156120BS75300 today—designed for high reliability, efficient illumination, and long-lasting performance in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120BS75300?
You can click on the BUY or RFQ button to purchase 156120BS75300 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120BS75300?
You can download the 156120BS75300 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120BS75300?
WURTH ELEKTRONIK
