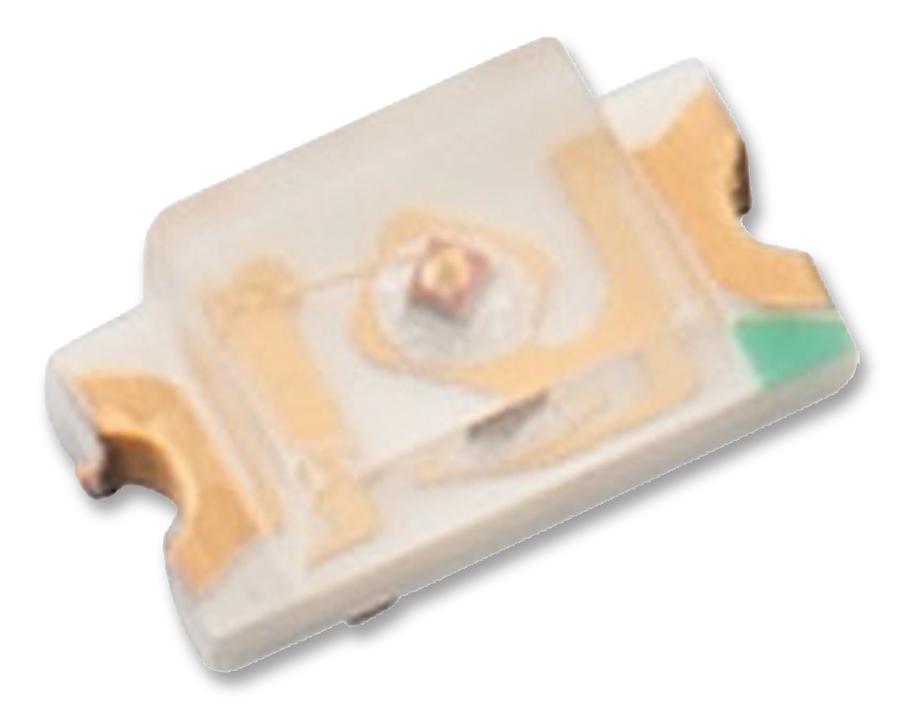

WURTH ELEKTRONIK 150060RS75000 Waterclear Mono Color LED
The WURTH ELEKTRONIK 150060RS75000 is a waterclear, mono-color LED designed for surface mount applications. This 0603 package LED emits red light and is suitable for a wide range of applications in general electronic equipment. It features a peak wavelength of 630nm, a dominant wavelength of 625nm, and a viewing angle of 140 degrees. The LED is designed for usage in general electronic equipment only and is not authorized for use in equipment requiring high safety standards. It is RoHS compliant and has a continuous forward current of 30mA.
WURTH ELEKTRONIK 150060RS75000 Waterclear Mono Color LED Specifications:
- Chip Technology: AlInGaP
- Emitting Color: Red
- Lens Type: Chip LED
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 630 nm
- Dominant Wavelength: 625 nm
- Luminous Intensity: 120-250 mcd
- Forward Voltage: 2.0-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 140°
Buy the 150060RS75000 WURTH ELEKTRONIK Waterclear Mono Color LED | myMectronic
Purchase the WURTH ELEKTRONIK 150060RS75000 securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150060RS75000?
You can click on the BUY or RFQ button to purchase 150060RS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150060RS75000?
You can download the 150060RS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150060RS75000?
WURTH ELEKTRONIK
