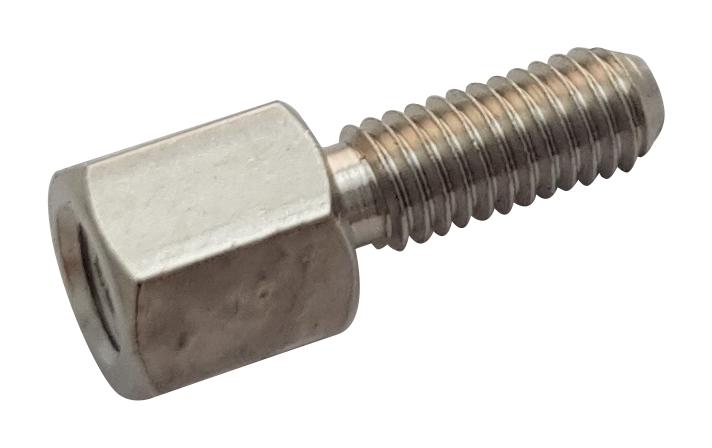

WURTH ELEKTRONIK 971060354 Brass Spacer Stud
The Würth Elektronik 971060354 is a brass spacer stud designed to provide mechanical support and electrical insulation in electronic assemblies. Constructed from brass and finished with a nickel plating, this spacer offers excellent corrosion resistance and durability. It is RoHS and REACH compliant, ensuring environmental responsibility. Suitable for a wide range of applications, this spacer is particularly useful in situations where a secure and reliable connection between components is required. Care should be taken to adhere to specified torque limits during assembly to prevent damage to the component and the printed circuit board. Proper storage and handling are essential to maintain product integrity and ensure optimal performance.
WURTH ELEKTRONIK 971060354 Brass Spacer Stud Specifications:
- Dimensions_SW: N/A
- Dimensions_A: N/A
- Dimensions_L: 6 mm
- Dimensions_Tlo: 8 mm
- Dimensions_Ti: M3
- Dimensions_Tli: 3 mm
- Material: Brass
- Surface: Nickel (Ni)
- Certification: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature: -55 up to +150 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level: 1
- General_Tolerance: DIN ISO 2768-1m
- Description: WA-SBRIE Brass Spacer Stud
- Outer_Thread: M3
- Inner_Thread_Length: 3 mm
- Outer_Thread_Length: 8 mm
- Wrench: 5 mm
- Thread_Type: with Metric Thread, internal/external
- Status: Valid
- Order_Code: 971060354
