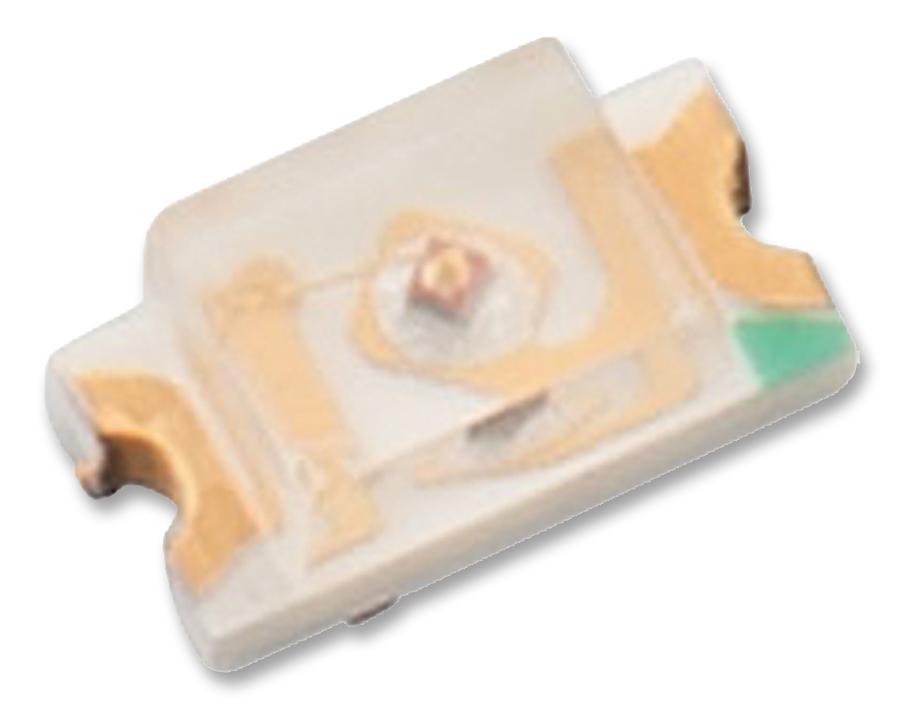

WURTH ELEKTRONIK 150060VS75000 SMD Chip LED
The WURTH ELEKTRONIK 150060VS75000 is a 0603 SMD (Surface Mount Device) chip LED designed for versatile applications in general electronic equipment. It utilizes AlInGaP chip technology to produce a bright green light with a dominant wavelength of 570nm and a peak wavelength of 572nm. The LED is characterized by a luminous intensity ranging from 12 to 40 mcd, a forward voltage between 2.0 and 2.4V, and a viewing angle of 140 degrees. It is not intended for use in safety-critical applications without proper evaluation and agreement. Operating temperature range is -40°C to +85°C.
WURTH ELEKTRONIK 150060VS75000 SMD Chip LED Specifications:
- Chip Technology: AlInGaP
- Emitting Color: Bright Green
- Lens Type: Chip LED
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Peak Wavelength: 572 nm
- Dominant Wavelength: 570 nm
- Luminous Intensity: 12-40 mcd
- Forward Voltage: 2.0-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: 10 μA
- Viewing Angle: 140°
Buy the 150060VS75000 WURTH ELEKTRONIK SMD Chip LED | myMectronic
Purchase the WURTH ELEKTRONIK 150060VS75000 securely online for all your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150060VS75000?
You can click on the BUY or RFQ button to purchase 150060VS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150060VS75000?
You can download the 150060VS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150060VS75000?
WURTH ELEKTRONIK
